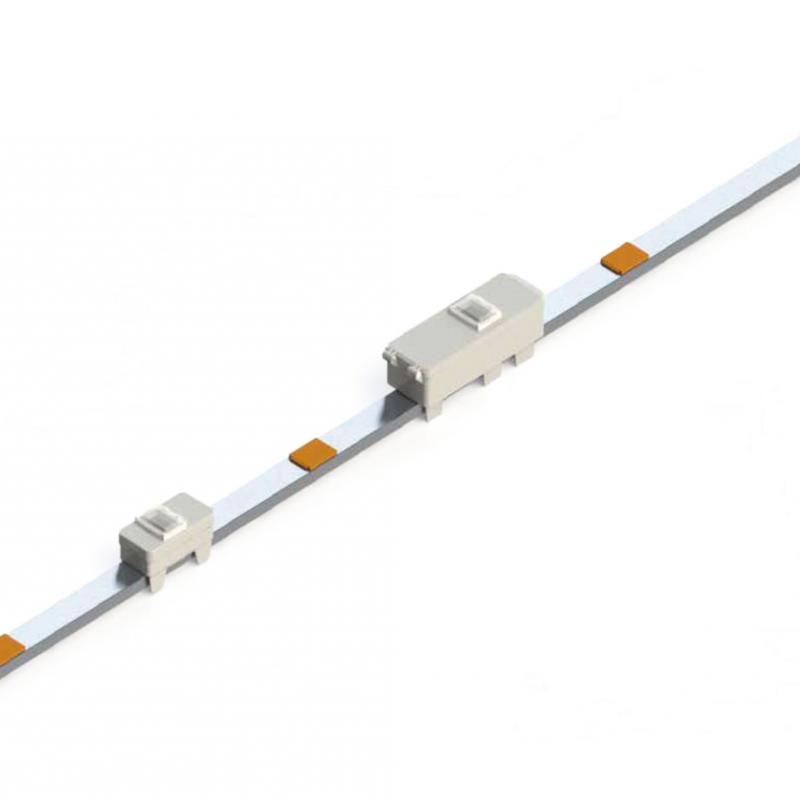

63A - straight element for low FM systems
Dimension Weight Technical Info Length Thickness edge Derivations Code
W (B) H [Kg/pcs] In (A) Conductors mm Al[mm]
33 73 1,80 63A 3P+N+T 1000 1,10 1 BP 63A 10
33 73 5,00 63A 3P+N+T 3000 1,10 5 BP 63A 30

- Coating: AL 6060 T6 - used as earth conductor (PE)
- Equivalent copper cross-section of the coating: 69 mm2
-
Protection degree IP55

Measurements other than 3 m can be provided upon request
The minimum length for measured parts is L = 600mm

In accordance to:

CEI EN 61439-6 / IEC 61439-6

IMPORTANT

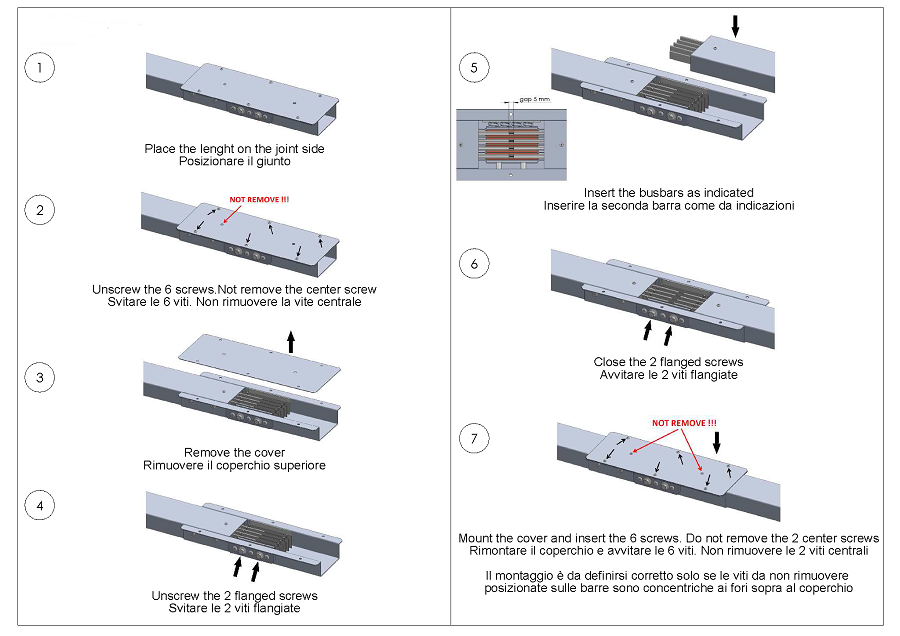

Correct packing opening

63A - straight element for low FM systems
