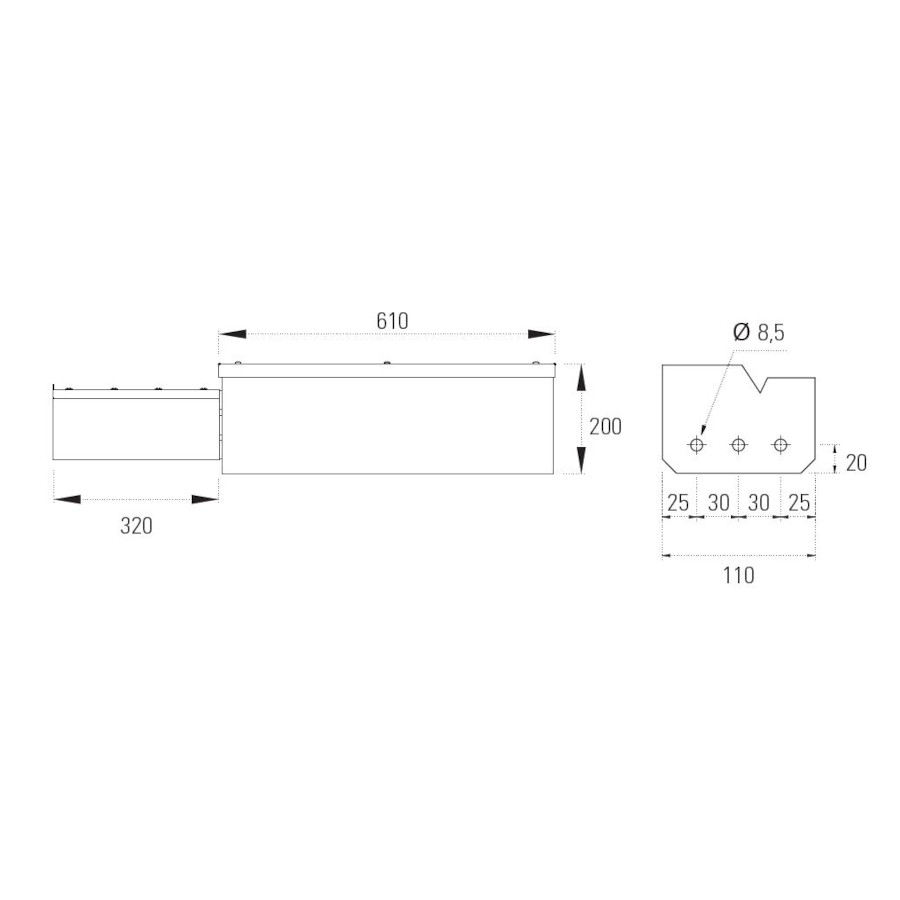

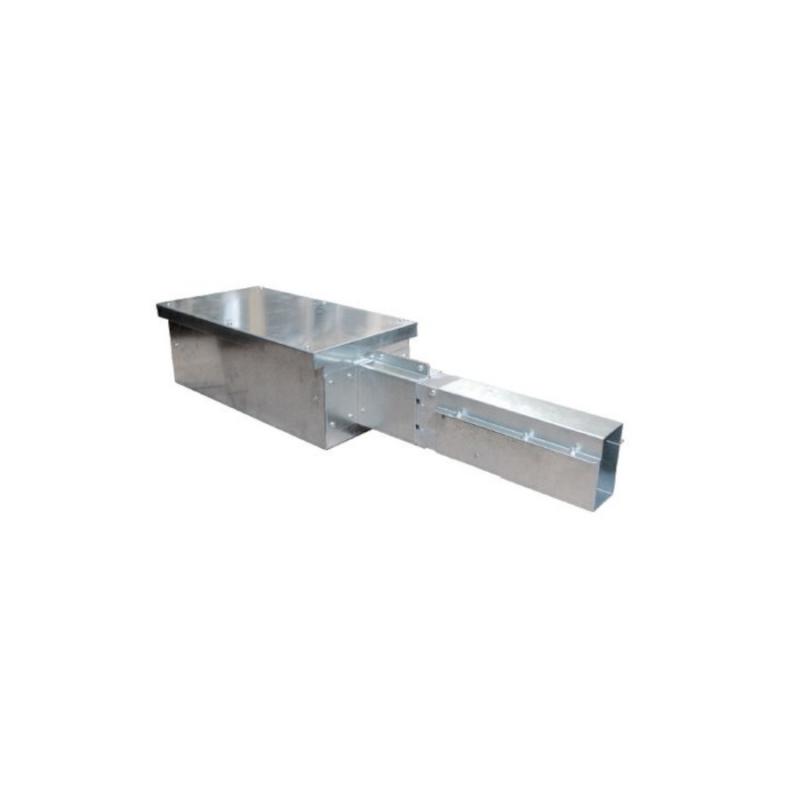

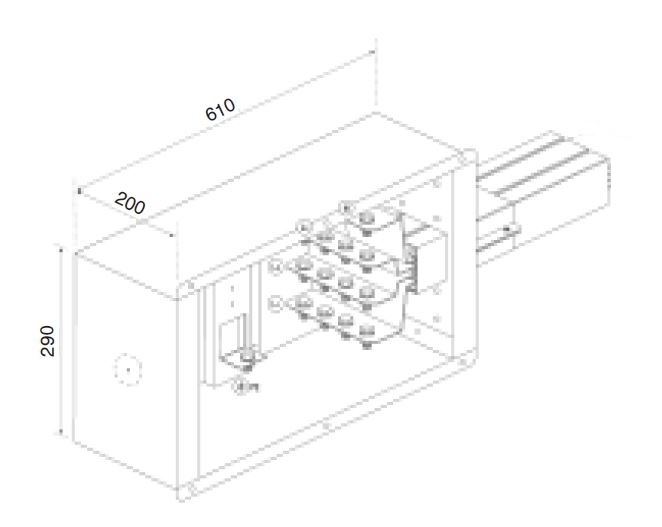

BPG Section - 250A-400A-630A-800A right feed unit
Dimension Weight Technical Info Code
W (B) H [Kg/pcs] In (A) No.Poles
610 200 15 250A 3P+N+T TAD XBPG 250A
610 200 15.8 400A 3P+N+T TAD XBPG 400A
610 200 16.9 630A 3P+N+T TAD XBPG 630A
610 200 18 800A 3P+N+T TAD XBPG 800A
In accordance to:

CEI EN 61439-6 / IEC 61439-6

BPG Section - 250A-400A-630A-800A right feed unit
