250A - Straight element for medium power systems

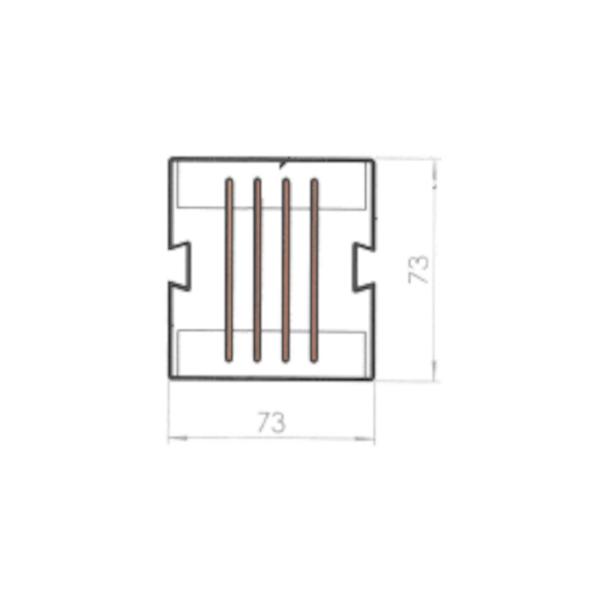

Dimension Thickness Weight Technical Info Length Derivations Code
W (B) H [mm] [Kg/pcs] In (A) Conductors mm
73 73 1,45 8.9 250A 3P+N+T 3000 5 BPK 250A 30

- Coating: AL 6060 T6 - used as earth conductor (PE)
- Equivalent copper cross-section of the coating: 69 mm2
-
Protection degree IP55

Measurements other than 3 m can be provided upon request
The minimum length for measured parts is L = 600mm

In accordance to:

CEI EN 61439-6 / IEC 61439-6

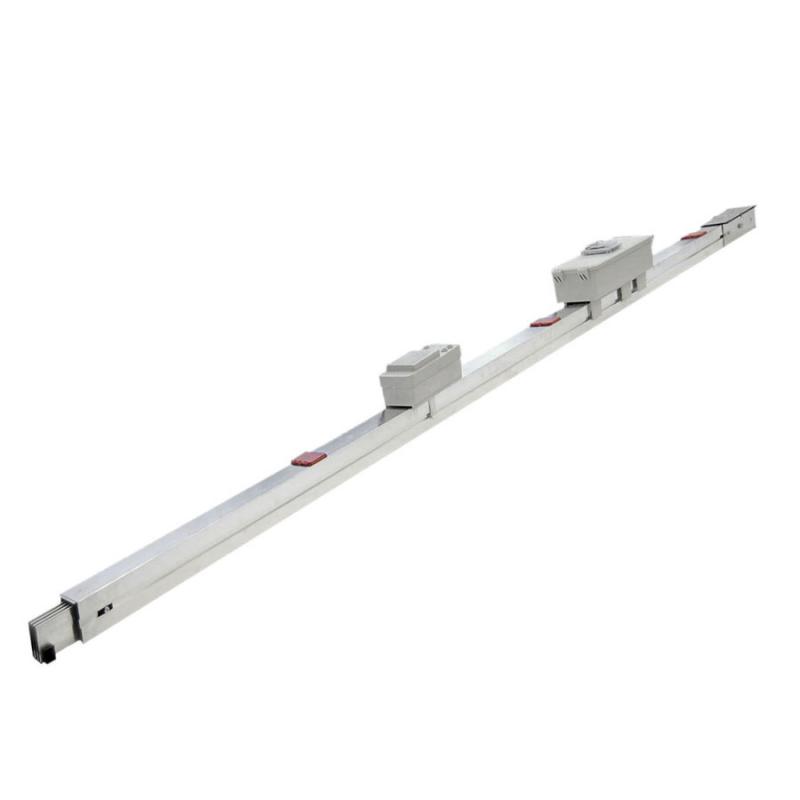

250A - Straight element for medium power systems
