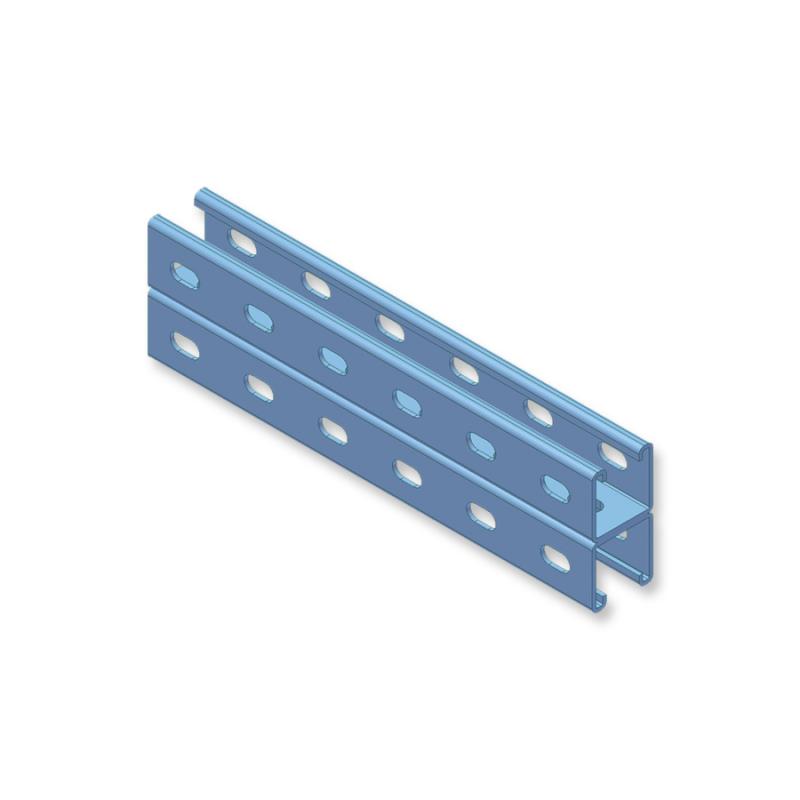

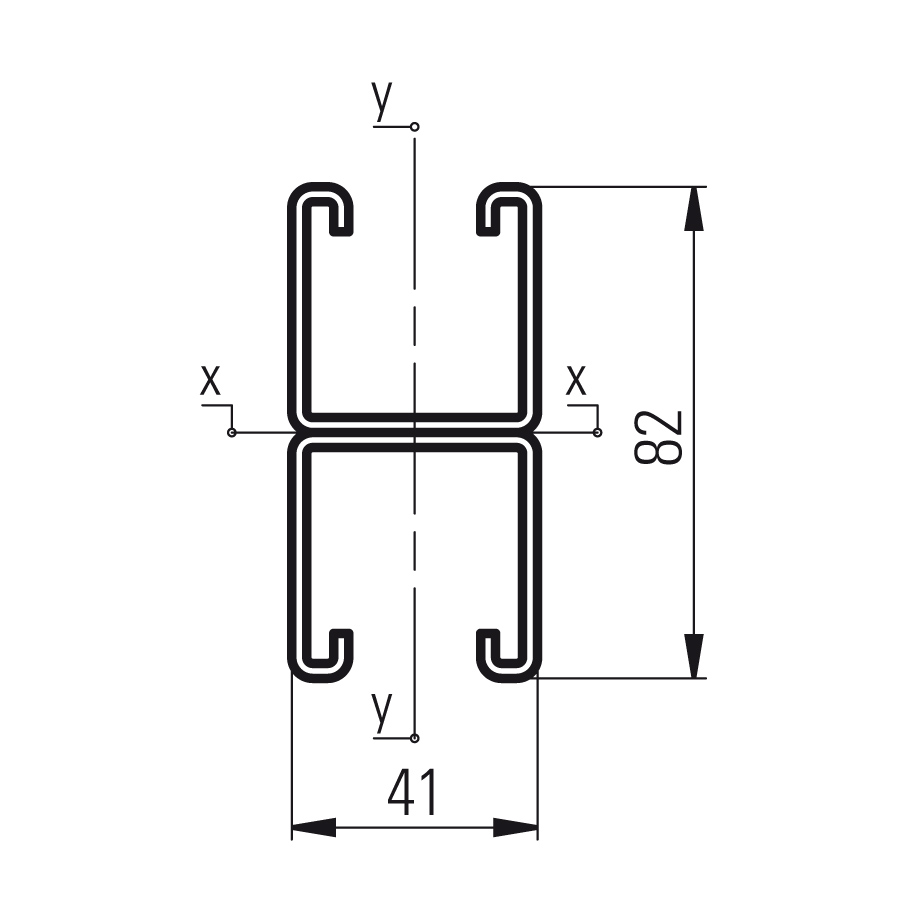

Fully slotted Double section - 82x41
Dimension brush Weight *Thickness identifier [mm] Code
L [Kg/m] 15 - 20 - 25
3000 3,00 - 4,00 - 5,00 1,50 - 2,00 - 2,50 F0 DC4 3000
3000 4,00 2,00 F0 DC4 3000
3000 3,00 - 4,00 - 5,00 1,50 - 2,00 - 2,50 F0 DC4 3000

Code composition :
Add the desired coating and thickness to the code.
On demand: L.4000 - 6000

Dimension of slots: 13 x 22
Material: S 235JR - DIN EN 10025 • S 250GD - DIN EN 10326

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
76 ZnMg ZM310 - UNI EN 10346
Fully slotted Double section - 82x41
