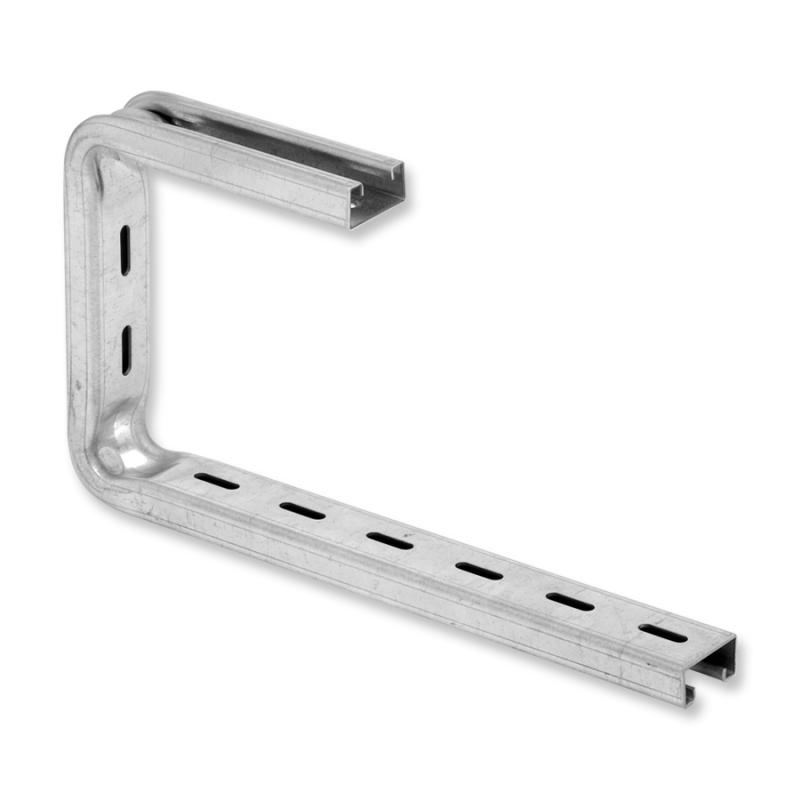

“C” bracket

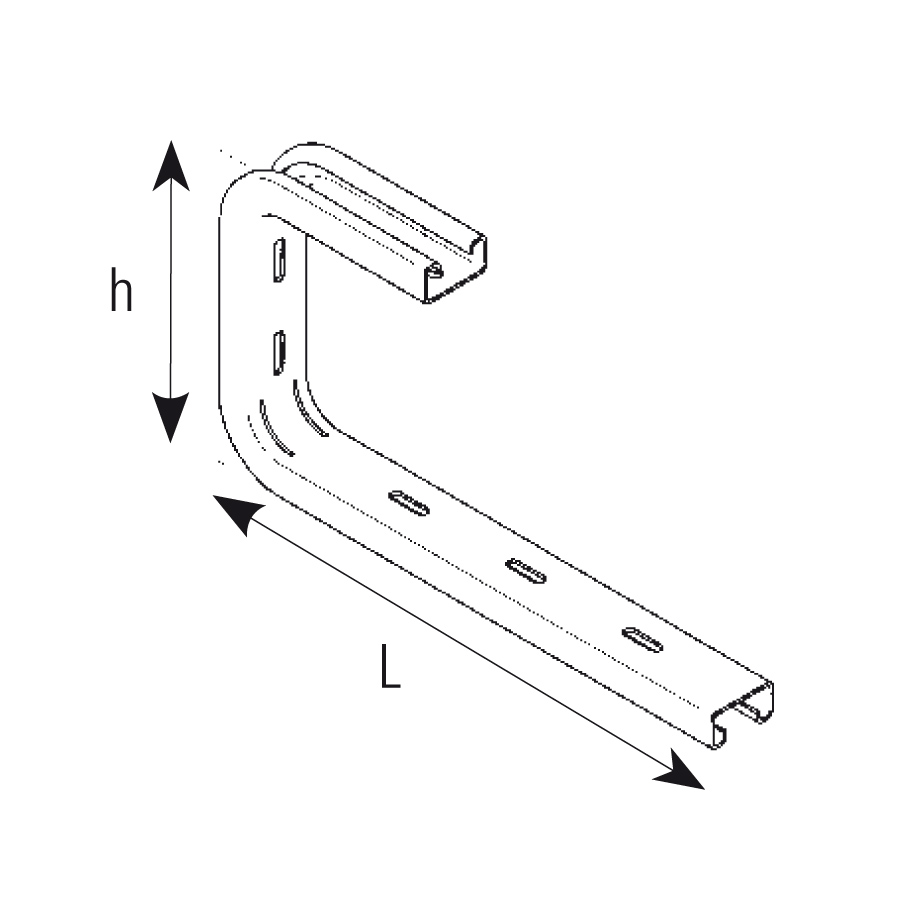

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] L h
150 2,00 0,82 172 244 R0 165 0015
200 2,00 0,94 222 244 R0 165 0020
300 2,00 1,09 322 244 R0 165 0030

For B.400-500-600 serie ZT/ZFserie

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088

For mounting the trunking:
n.1 M6x20 T0 620 0620
n.1 M6 T0 621 0600

n.1 R0 116 0000

Threaded bar Ø 20 - R0 315 2000 + n.2 M20 T0 624 2000
Not included

“C” bracket
