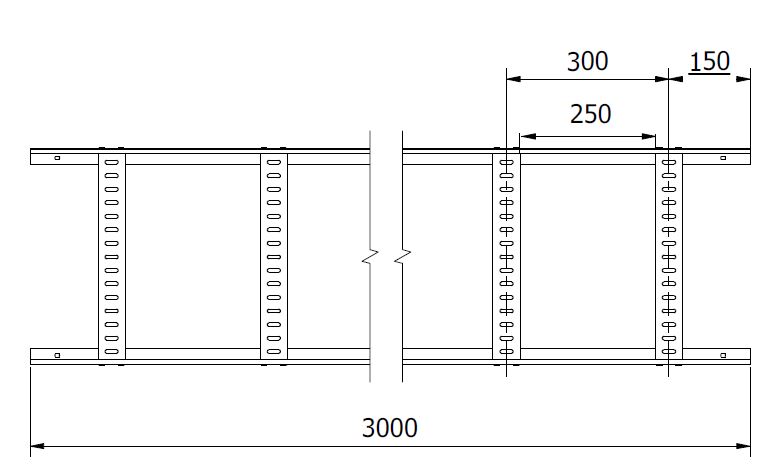

Cable Ladder riveted rungs

Also called: LADDER

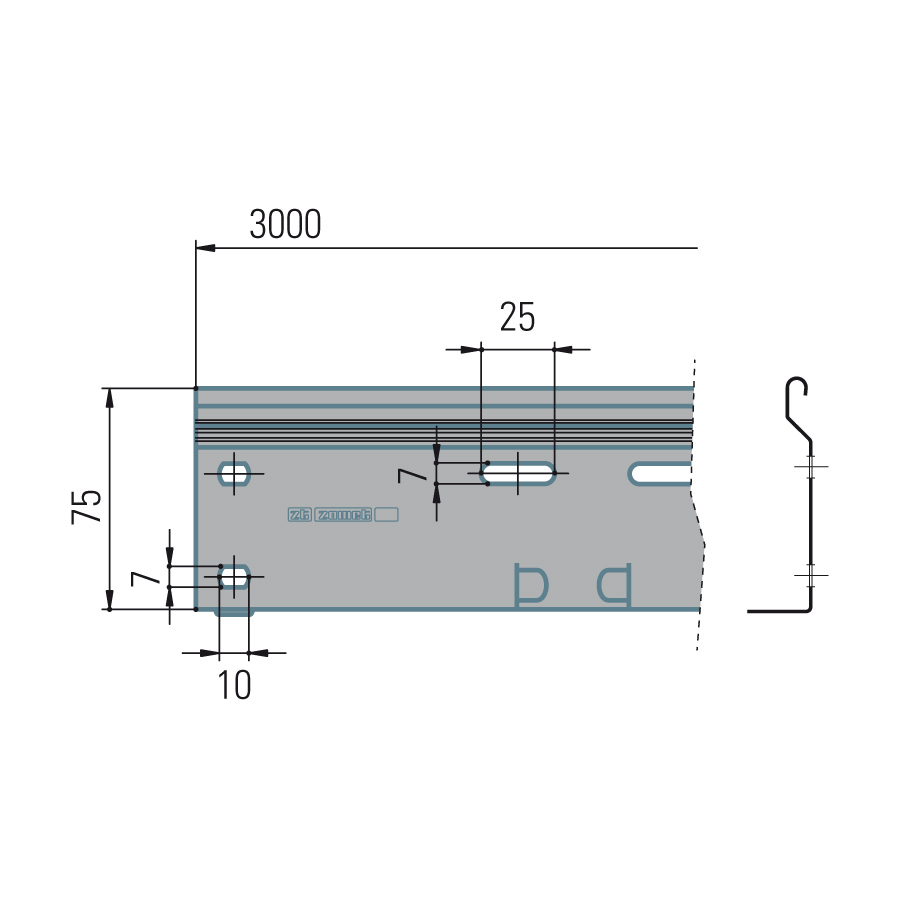

H 75

H 100

H 120

H 150

Dimension				Thickness	SWL (N/m) as function of the span (S) [m] - EN 61537						Weight	Length *	Code

W (B)				[mm]	S≤1,5	1,5-2	2-2,5	2,5-3	3-3,5	3,5-4	[Kg/m]	[mm]

100	01	03	40	1,50	245	196	147	89	57	21	2,90	3000	S3 003 0710
200	01	03	40	1,50	490	392	294	179	114	42	3,16	3000	S3 003 0720
300	01	03	40	1,50	735	588	441	269	171	63	3,50	3000	S3 003 0730
400	01	03	40	1,50	980	784	588	359	228	84	3,95	3000	S3 003 0740
500	01	03	40	1,50	1225	980	735	449	286	106	4,20	3000	S3 003 0750
600	01	03	40	1,50	1470	1176	882	539	343	127	4,52	3000	S3 003 0760

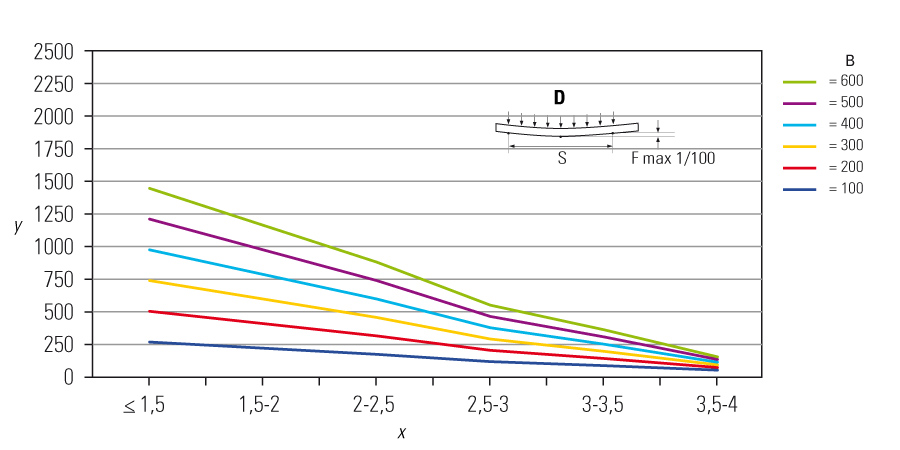

**SWL: Norma EN 61537-1 ed 2007
10.4 - Test for SWL (safe working load) of cable tray lengths and cable ladder lengths mounted in the horizontal plane running horizontally on a single span installation.
The practical mod-span deflection at the SWL shall not exceed 1/100th of the span.
The transverse deflection at the SWL shall not exceed 1/20th of the width of the samples.

*Length:
- Bars up to 6000 mm treatment 40 - 41 (Aisi 316L on request)
- Bars up to 6000 mm treatment 03 (riveted and welded crossbars)
