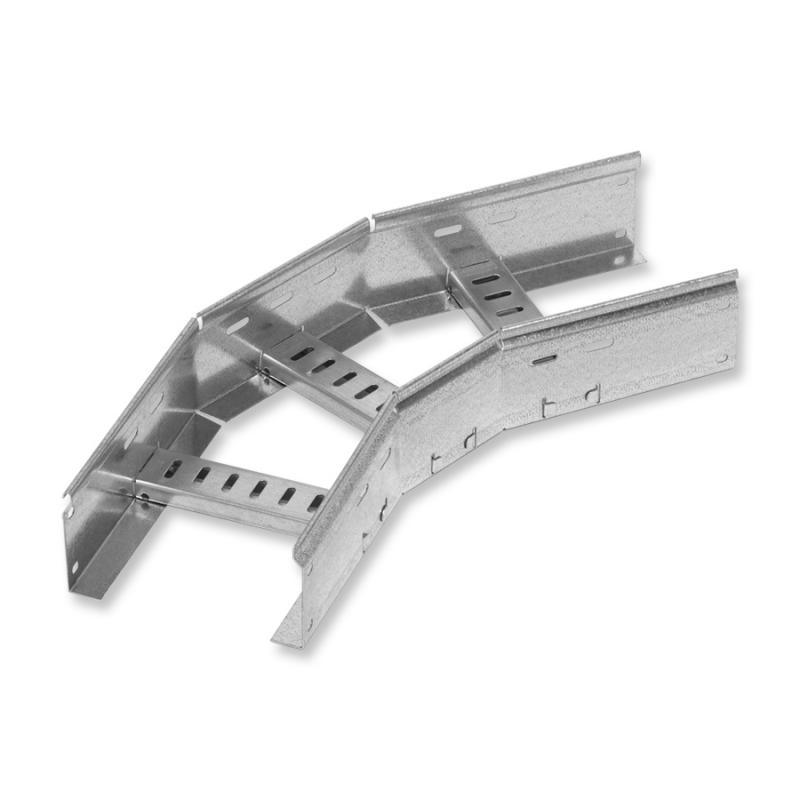

Flat 45° Elbow

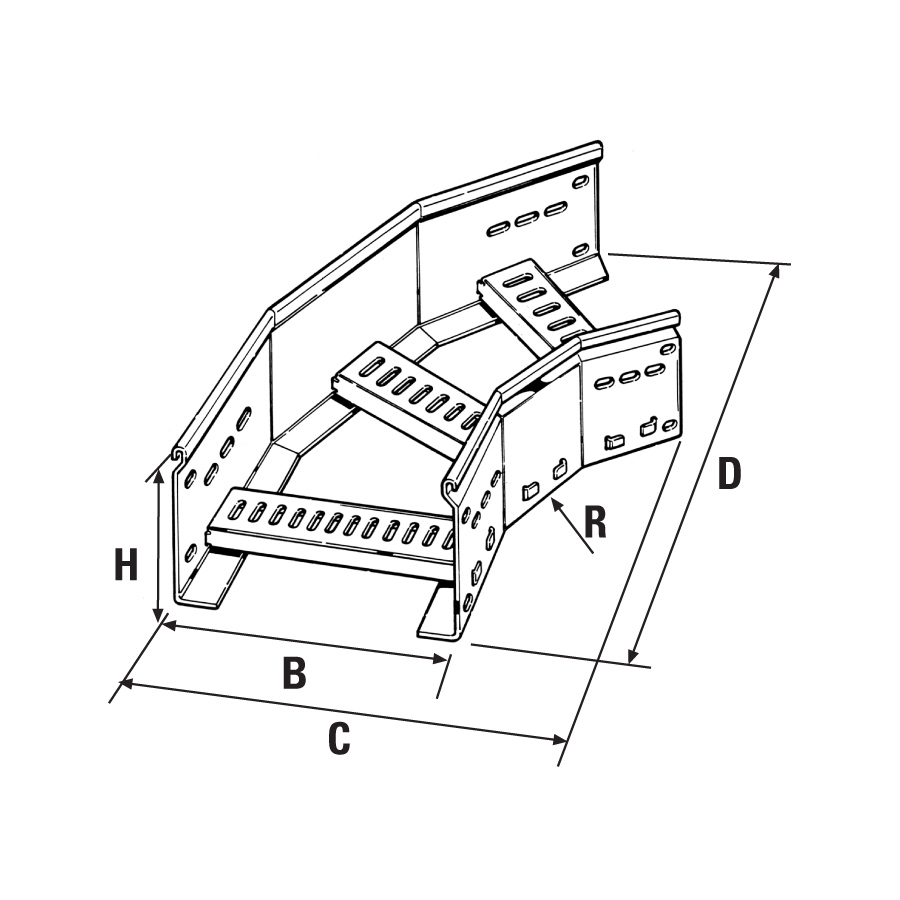

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] R c d
100 1,50 1,80 300 292 538 S3 087 0710
200 1,50 2,14 300 392 609 S3 087 0720
300 1,50 2,55 300 492 679 S3 087 0730
400 1,50 3,06 300 592 750 S3 087 0740
500 1,50 3,40 300 692 821 S3 087 0750
600 1,50 3,78 300 792 891 S3 087 0760
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

EN 61537-1 ed.2007- (Rif: Norm limitation)
IMQ

Flat 45° Elbow
