Code | ||||
|---|---|---|---|---|---|
| C0 830 0000 | |||||
| 01 | Galvanization (Sendzimir method) - UNI EN 10346 | |
| 40 | Stainless steel AISI 304 - UNI EN 10088 |

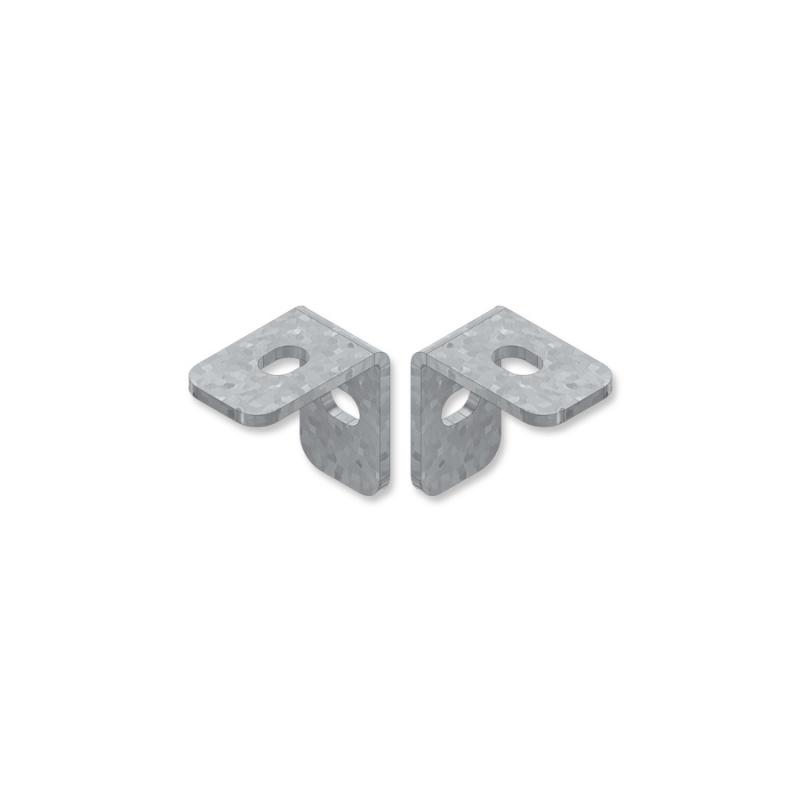

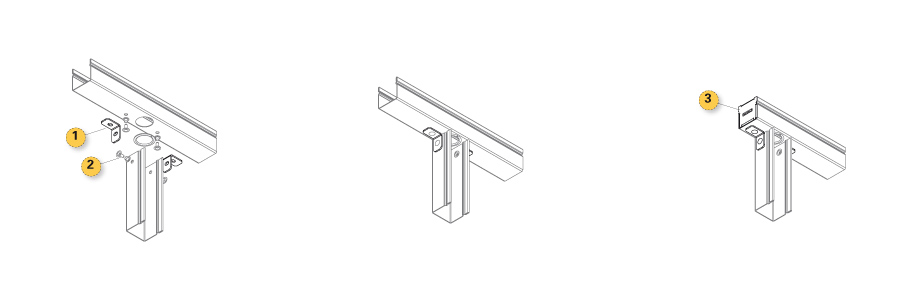

In order to make a descending skewed “T” junction, you can use the bracket (1) to be fixed on the bottom of the trunking using 2 rivets (2), with the pressure punch (C0 671) or using 2 M4 round-headed bolts+nuts
Likewise, by adding the end closure (3), it is possible to make a right or left vertical outside elbow.Zamet provides an assembly kit comprising 25 pairs of brackets and 100 rivets.
