Floor support foot
brush Thickness Weight Technical Info Code
[mm] [Kg/cad] a w (b) L Inserts Slot
1,50 0,04 25 15 73 M6 7x15 M0 425 2573
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

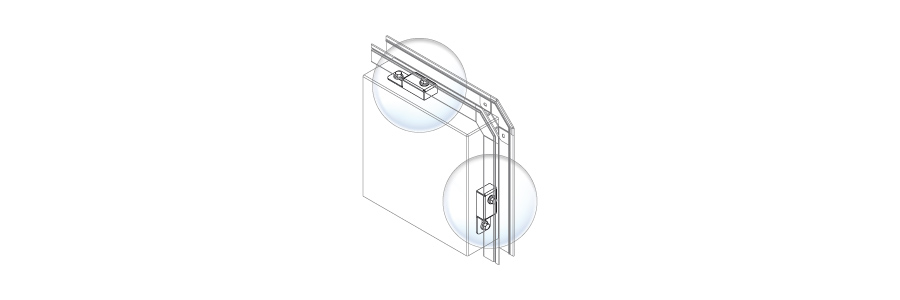

Spacer support foot

This accessory allows the movement of trunking away from machine body, maintaining the correct distance to create horizontal and vertical deviations.

Floor support foot
