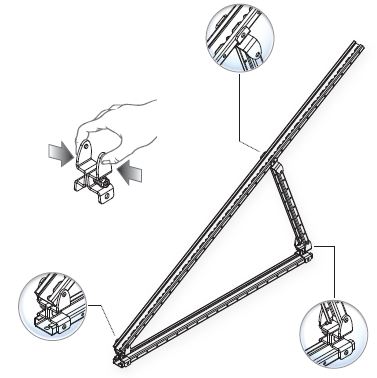

Triangle in assembly kit
brush Weight Section thickness L1 L2 L3 Code
[Kg] [mm] [mm] [mm] [mm]
3,538 1,50 1400 950 450 E0 303 0000
2,837 1,50 1000 750 350 E0 303 0001
4,830 1,50 1700 1600 800 E0 303 0002
List of Coatings
brush
73 Stainless steel AISI 430 - UNI EN 10088
76 ZnMg ZM310 - UNI EN 10346

The assembly kit includes the following articles:
- E0 044 1000/1400/1700 x 1
- E0 044 0750/0950/1600 x 1
- E0 044 0350/0450/0800 x 1
- E0 271 x 3
Upon request: - 2,0 mm profile thickness - Different kind of stainless steel and section length


Note:

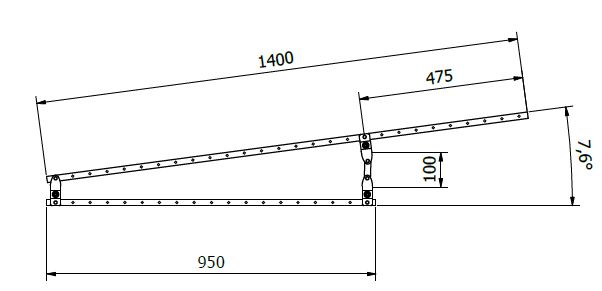

E0 303 0000 - with (L3) minimum 100mm you get an angle of 8°

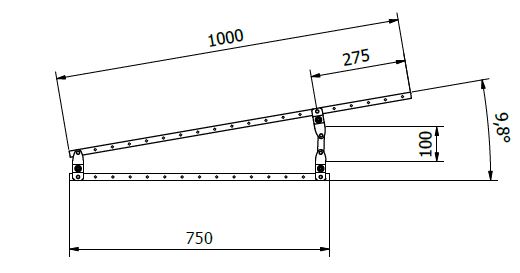

E0 303 0001 - with (L3) minimum 100mm you get an angle of 10°

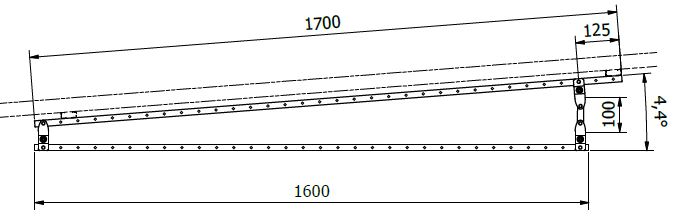

E0 303 0002 - with (L3) minimum 100mm you get an angle of 4°


Triangle in assembly kit


×
