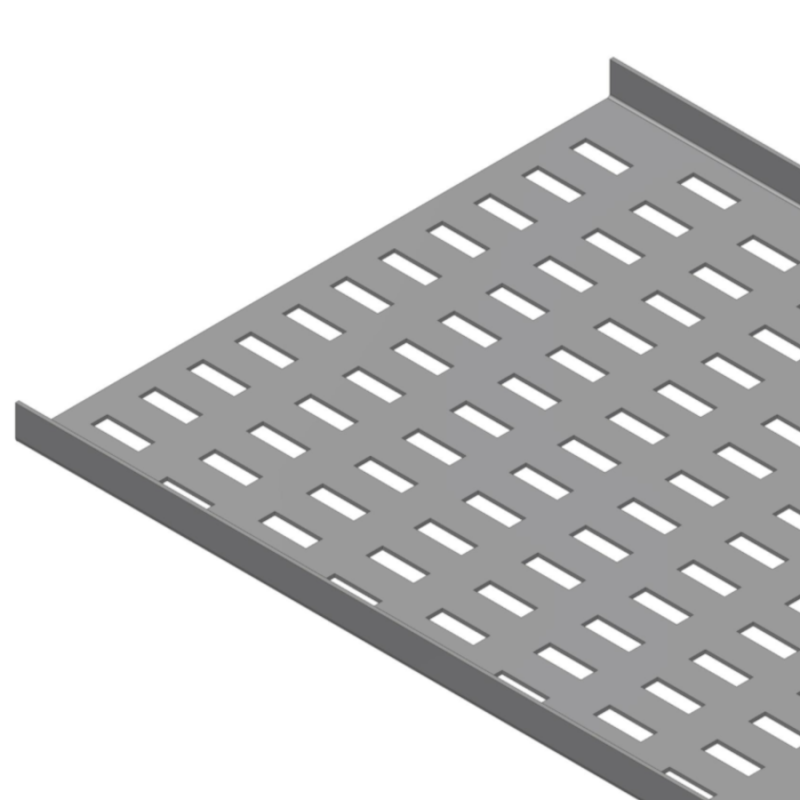

Cable tray with staggered slots

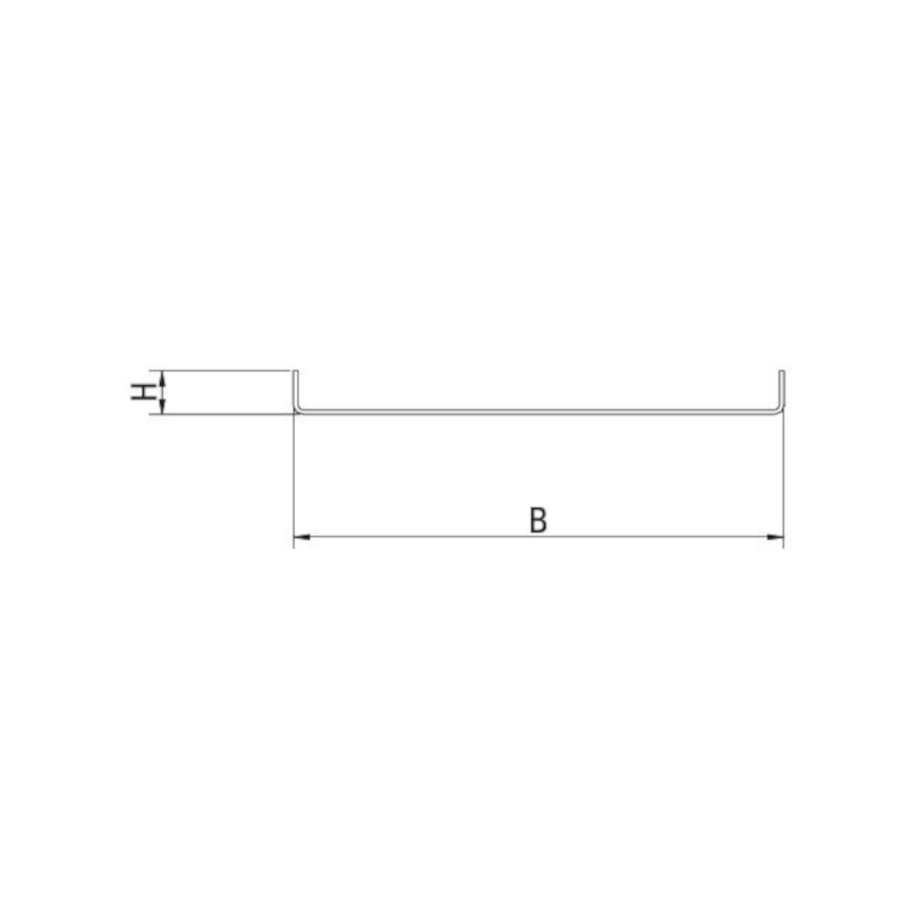

Dimension brush Thickness Th (18-42) Weight (01) Weight (42) Length Code
W (B) [mm] [mm] [Kg/m] [Kg/m] [mm]
50 1,50 2,00 0,81 0,36 2000 NR 002 0105
75 1,50 2,00 1,06 0,48 2000 NR 002 0107
100 1,50 2,00 1,32 0,59 2000 NR 002 0110
125 1,50 2,00 1,57 0,71 2000 NR 002 0112
150 1,50 2,00 1,83 0,82 2000 NR 002 0115
200 1,50 2,00 2,34 1,06 2000 NR 002 0120
250 1,50 2,00 2,85 1,29 2000 NR 002 0125
300 1,50 2,00 3,36 1,52 2000 NR 002 0130
400 1,50 2,00 4,38 1,98 2000 NR 002 0140
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
17 Send Galvanizing + White Ral 9010
18 Aluminium + White Ral 9010
41 Stainless steel AISI 316L - UNI EN 10088
42 ENAW 1050H24 - Aluminium
Cable tray with staggered slots
