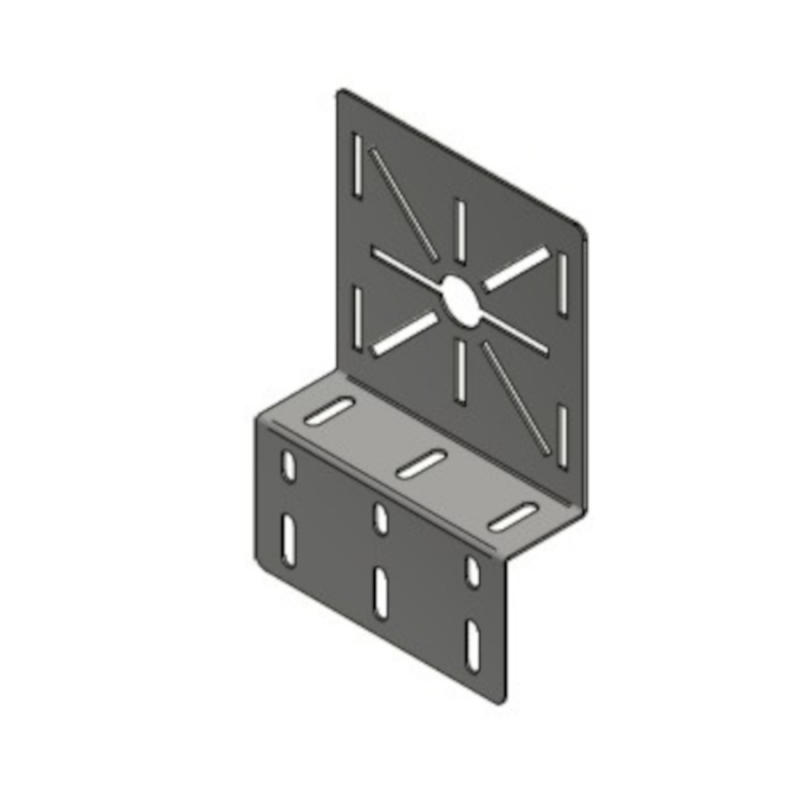

Connector block support

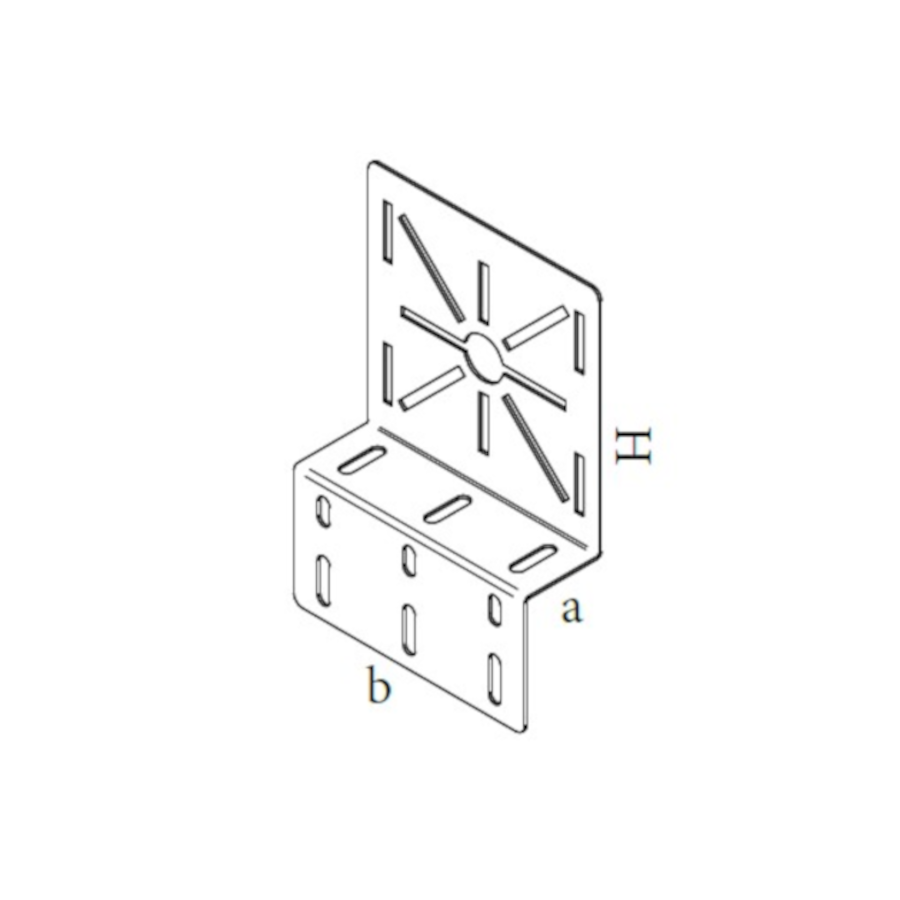

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] a w (b)
203,5 1,50 0,34 45 135 S3 285 0000
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
In accordance to:

EN 61537-1 ed.2007- (Rif: Norm limitation)
IMQ

n. 2 M6x10 T0 620 0610 / T0 620 0612
n. 2 M6 T0621 0600
Not included

Connector block support
