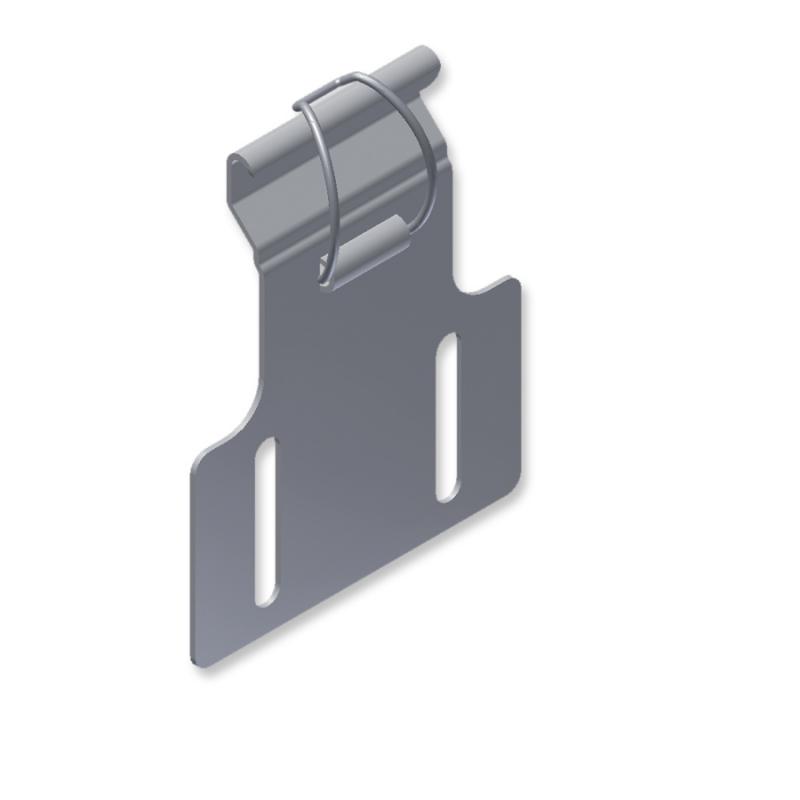

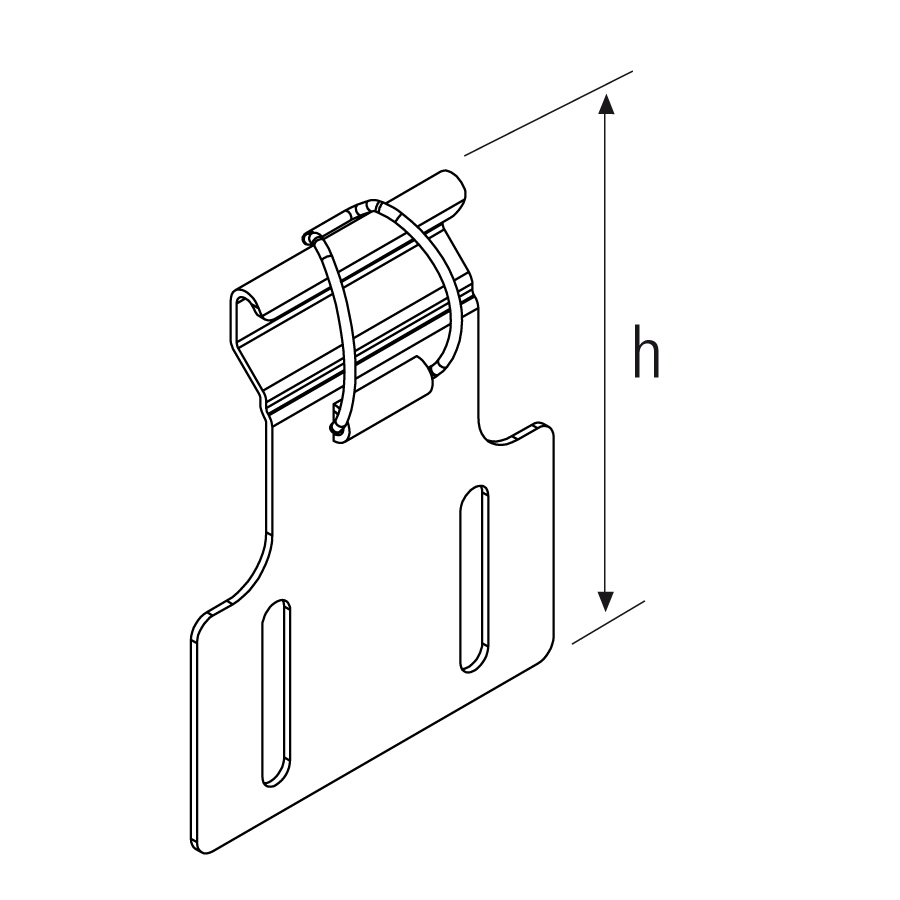

Cover support with included clamp
brush Thickness Weight Code
[mm] [Kg]
1,50 0,10 S3 208 0010
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

EN 61537-1 ed.2007- (Rif: Norm limitation)
IMQ

n. 2 M6x10/M6x12 T0 620 0610 / T0 620 0612
n. 2 M6 T0 621 0600
n. 6 S3 208 for each cover 3 m long

Not included

Sloping Cover and Flat Cover

Cover support with included clamp
