Zamet - ZT - T0 095 - 30° Inside Elbow with Cover

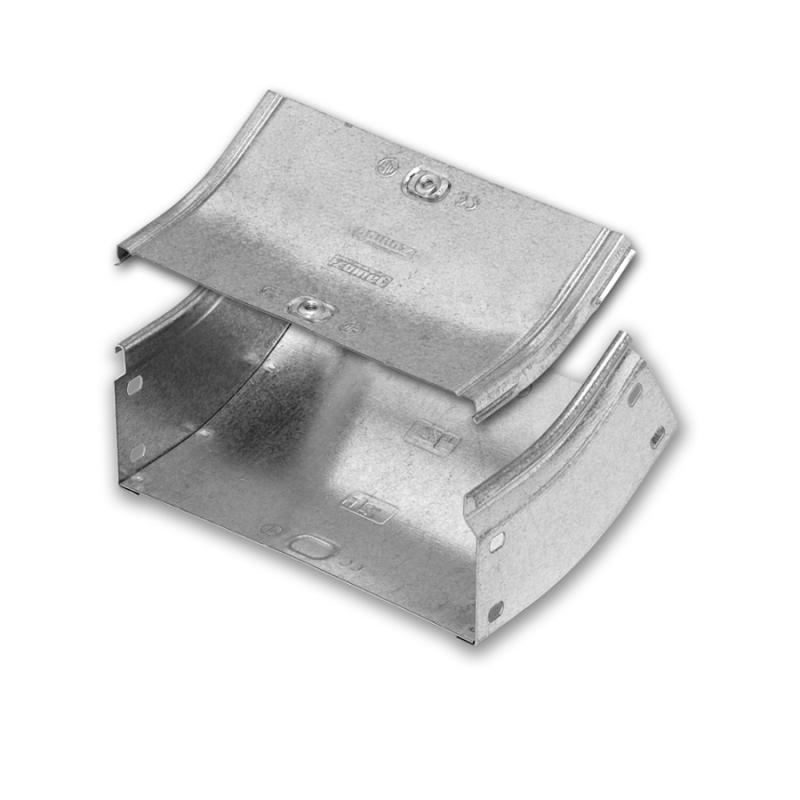

30° Inside Elbow with Cover

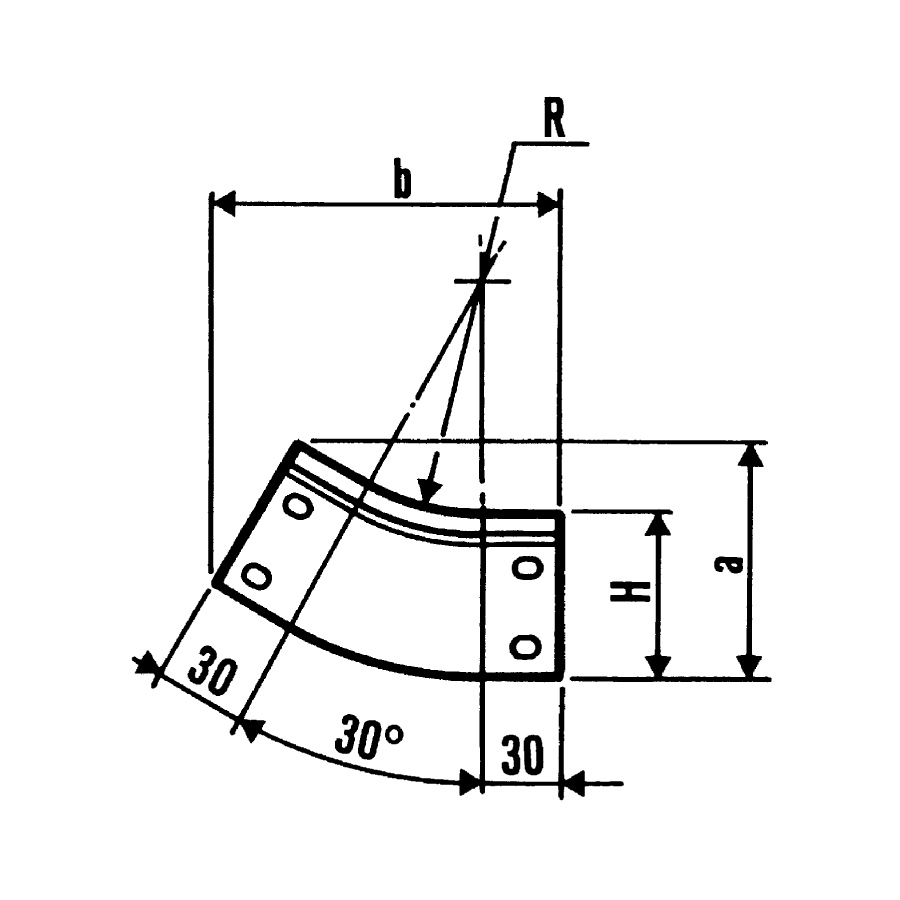

Dimension							Weight	Technical Info			Code

W (B)							[Kg]	a	w (b)	R

50	01	03	11	15	40	41	0,27	80	131	100	T0 095 0505
100	01	03	11	15	40	41	0,35	80	131	100	T0 095 0510
150	01	03	11	15	40	41	0,43	80	131	100	T0 095 0515
200	01	03	11	15	40	41	0,51	80	131	100	T0 095 0520
300	01	03	11	15	40	41	0,67	80	131	100	T0 095 0530
400	01	03	11	15	40	41	0,82	80	131	100	T0 095 0540
500	01	03	11	15	40	41	1,02	80	131	100	T0 095 0550
600	01	03	11	15	40	41	1,20	80	131	100	T0 095 0560

Thickness
T1 095 - Component - 1,00mm
T1 096 - Cover - 0,80mm

*T0 095 0507 - Dimension on demand

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	03	Hot dip galvanizing - UNI EN ISO 1461
	11	Grey RAL 7032 - ISO9227-ISO6270-ISO2810
	15	Blue RAL 5015 - ISO9227-ISO6270-ISO2810
	40	Stainless steel AISI 304 - UNI EN 10088
	41	Stainless steel AISI 316L - UNI EN 10088

Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
