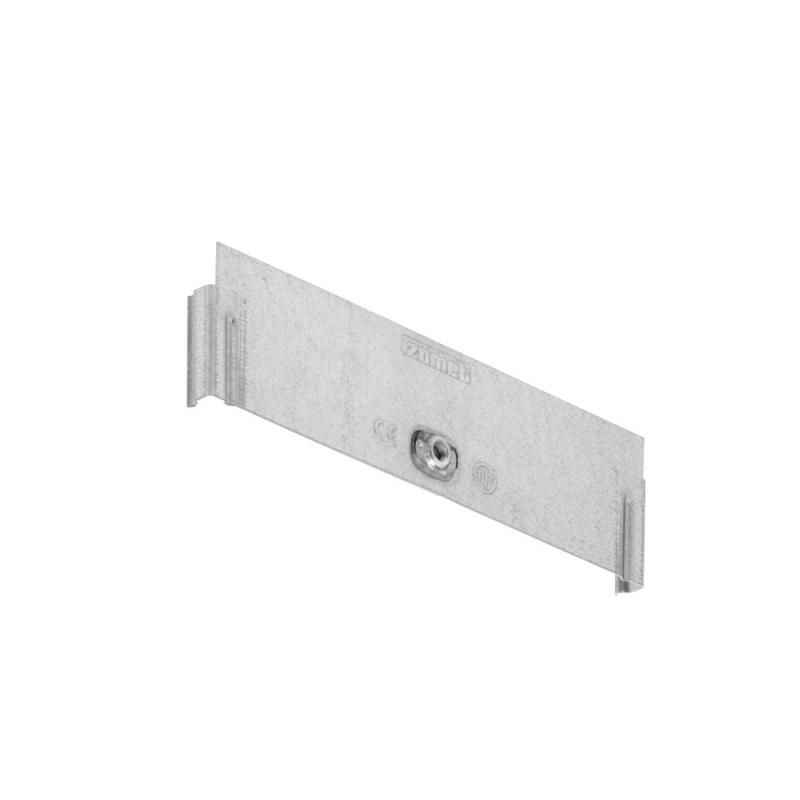

Cover 90° Vertical inside/outside elbow
Dimension brush Thickness Weight Code
W (B) [mm] [Kg]
50 0,80 0,03 T1 104 0005
75 0,80 0,04 T1 104 0007
100 0,80 0,05 T1 104 0010
150 0,80 0,06 T1 104 0015
200 0,80 0,08 T1 104 0020
300 0,80 0,11 T1 104 0030
400 0,80 0,15 T1 104 0040
500 0,80 0,18 T1 104 0050
600 0,80 0,21 T1 104 0060
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
