Upon Request:
40 Stainless steel AISI 304
| 01 | Galvanization (Sendzimir method) - UNI EN 10346 |

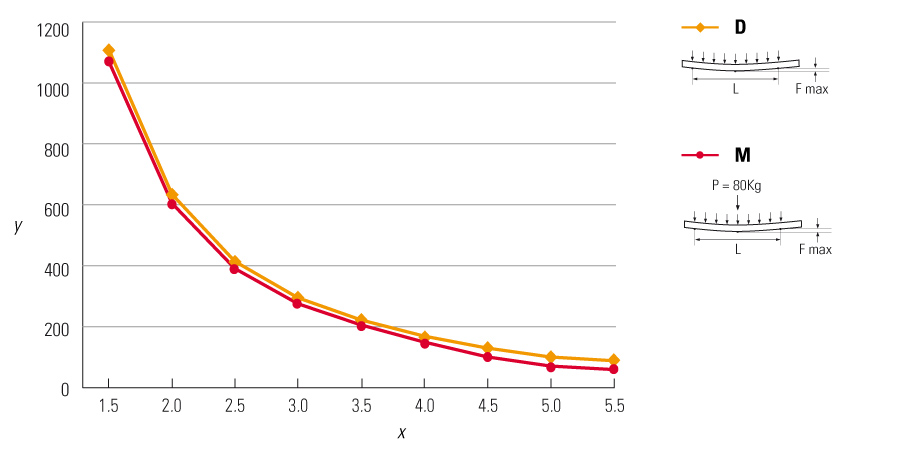

y= Max load (Kg/m)
x= Distance between supports (m)
D= Uniform load
M= Uniform load + Concentrated load 80Kg
The maximum give (Fmax) under these loads must always be less than 1/200 of the span (L)
Recommended maximum length among supports 5,5m.
