Plate for beams

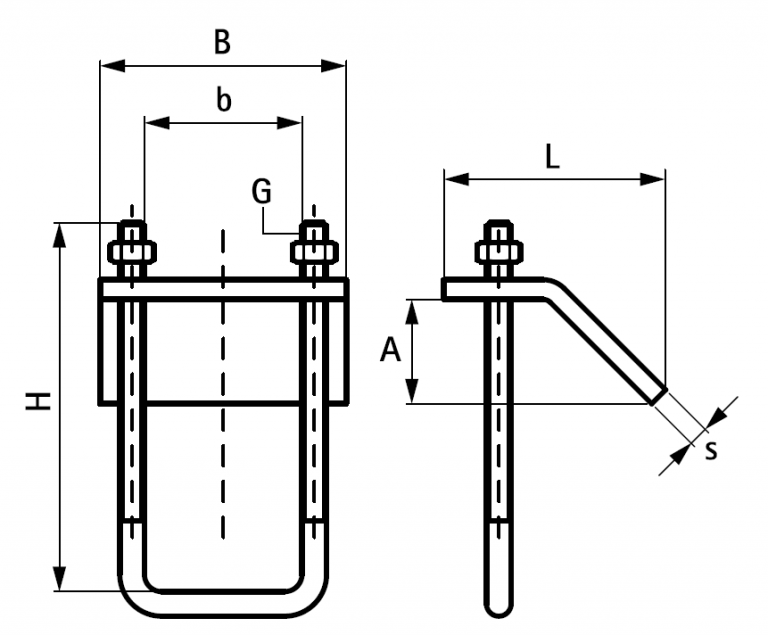

Dimension brush Thickness Weight Technical Info Code
W (B) H [mm] [Kg] L [mm] Bars A [mm] B [mm] G Ø Charge [N]
80 85 5,00 0,38 83 41x21 / 41x41 <20 44 M10 5700 F0 721 0001
80 115 6,00 0,44 83 41x62 / 41x82 <20 44 M10 5700 F0 721 0002

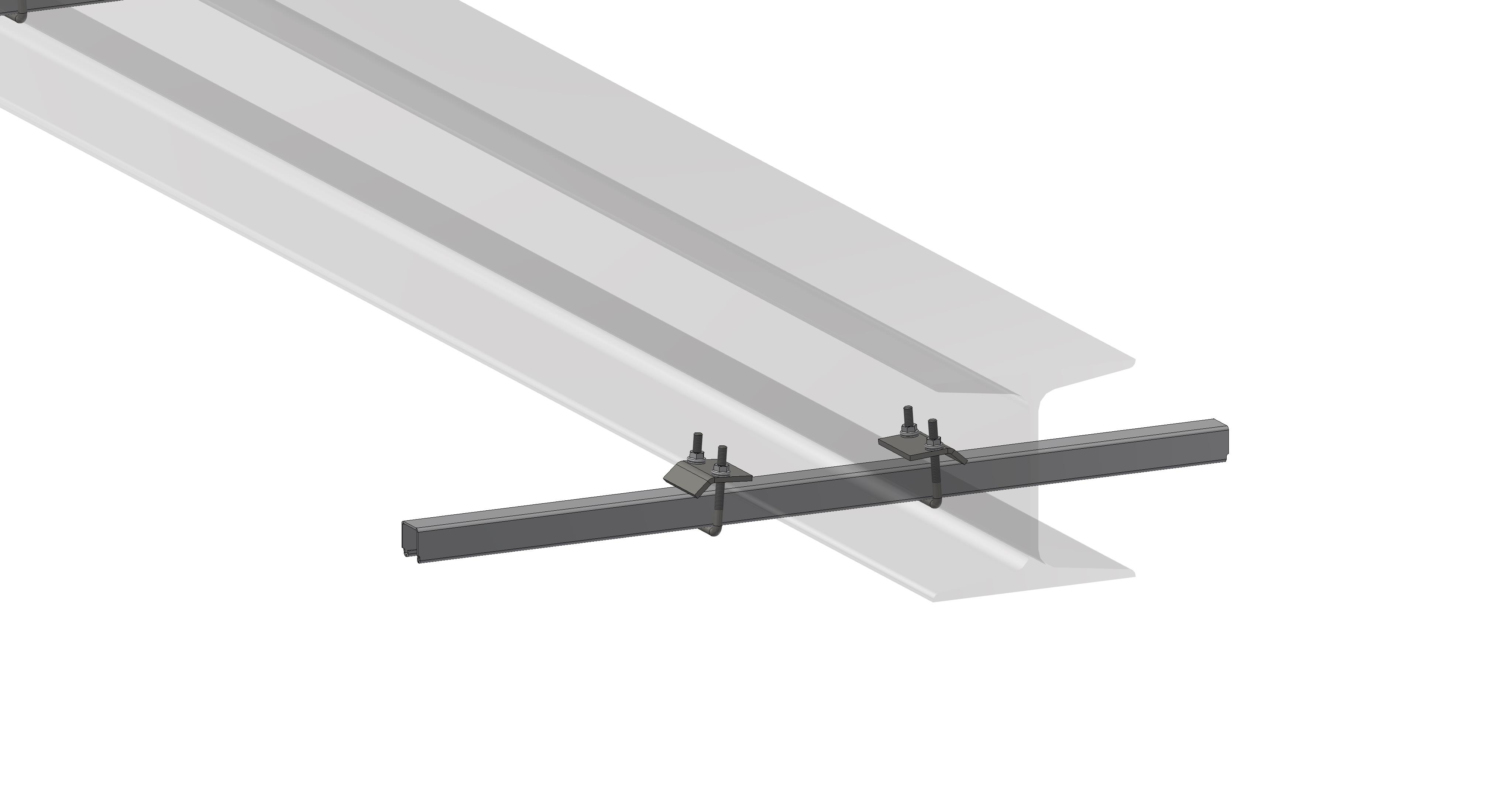

Assembly
- N°2 plate for each section bar
- Material: S235JR

List of Coatings
brush
03 Hot dip galvanizing - UNI EN ISO 1461
Plate for beams
