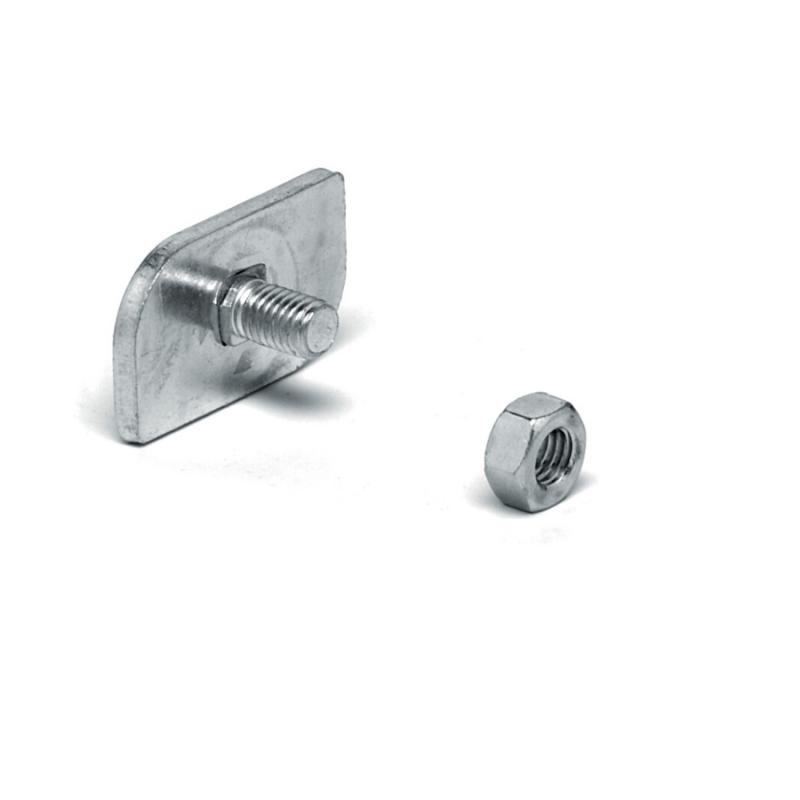

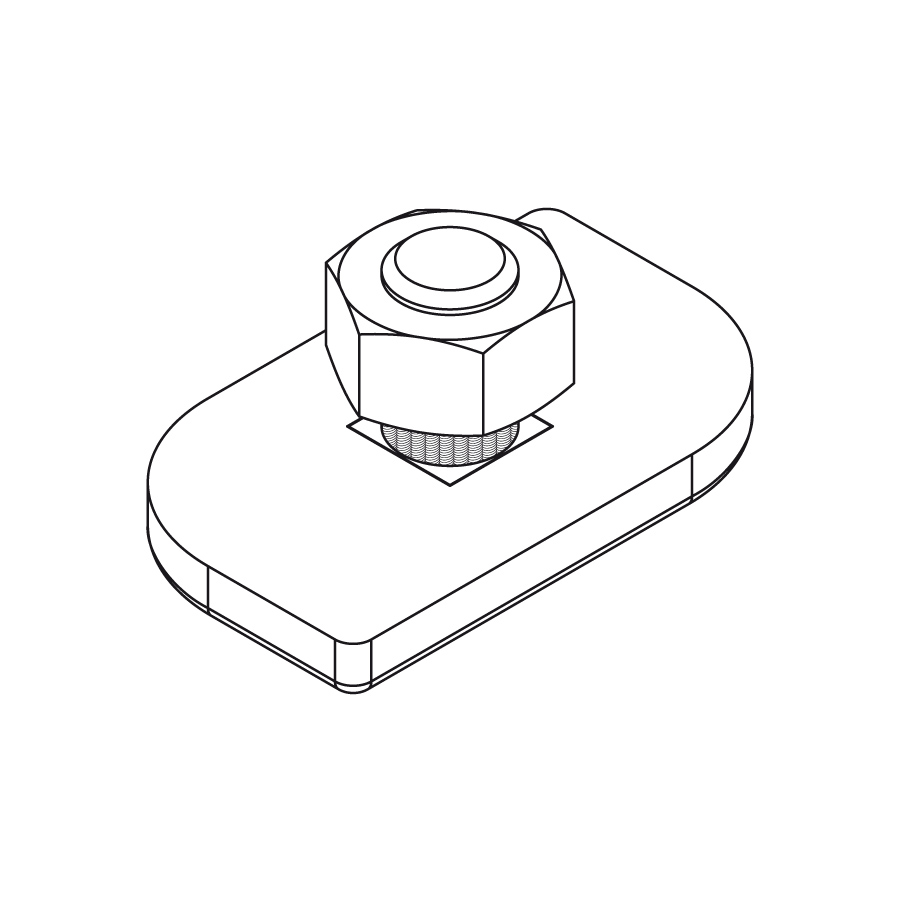

Securing element for ZT/ZE system

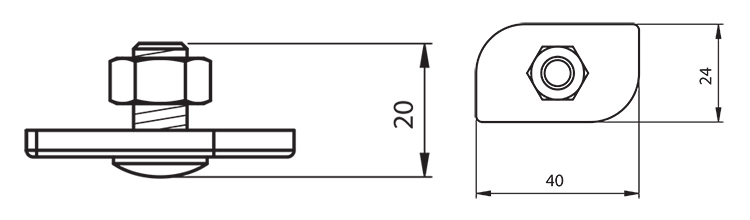

Dimension brush Weight Anti-theft nut Code
Dimension [Kg] Code
M8 0,04 T0 625 0000
M8 0,039 E0 631 0800 40 T0 625 0801
List of Coatings
brush
47 Geomet® 321
73 Stainless steel AISI 430 - UNI EN 10088
Certified System

EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
UL - E471266

IMQ

Nuts and bolts included, with anti-theft nut (T0 625 0801 73)

Quick and easy installation.

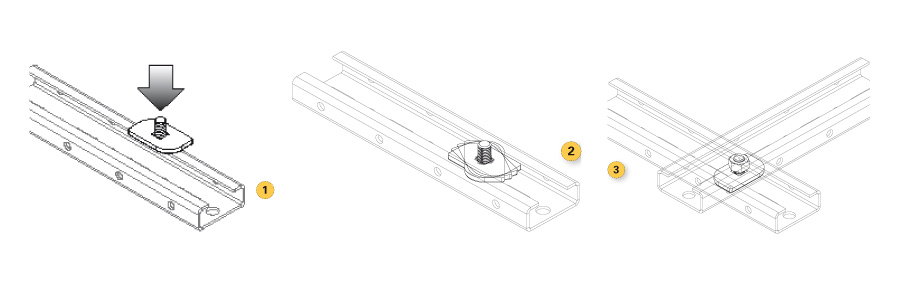

Insert into section (1); rotate as indicated in the figure (2) until correctly positioned (3).
