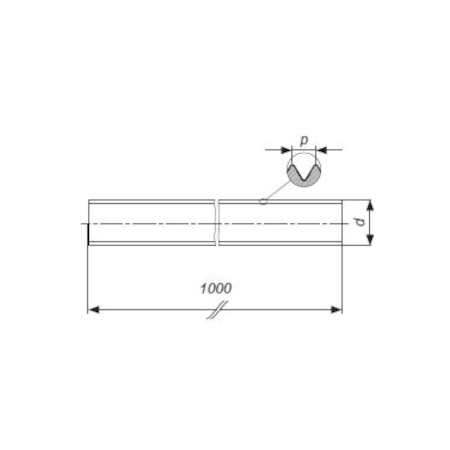

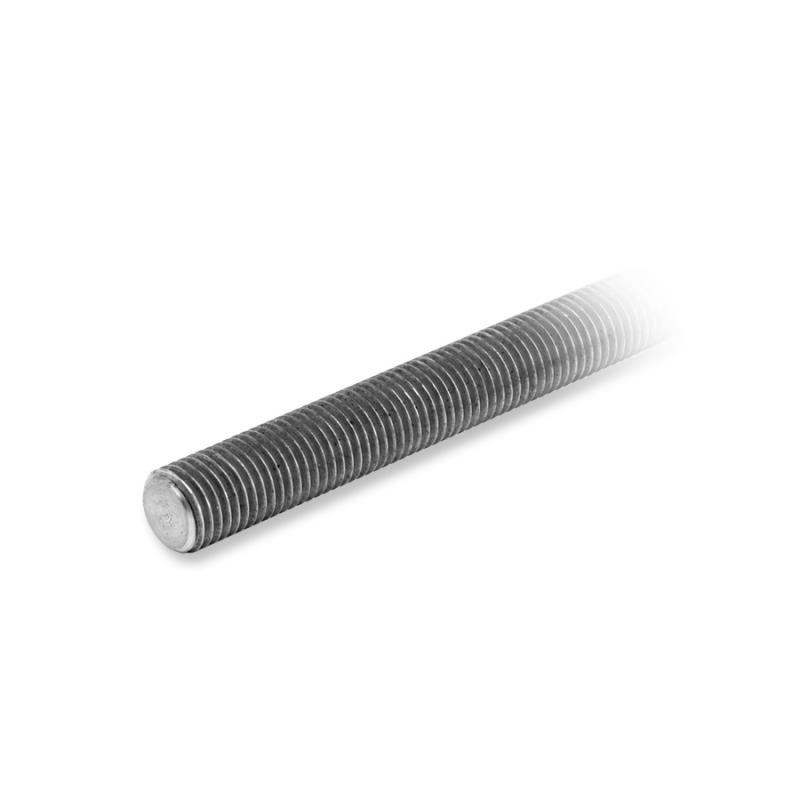

Threaded bar
Dimension brush Weight L Technical Info Code
Ø Kg. [mm] d
M6 0,20 1000 1 R0 315 0600
M8 0,31 1000 1,25 R0 315 0800
M10 0,48 1000 1,5 R0 315 1000
M12 0,70 1000 1,75 R0 315 1200
M16 1,60 1000 2 R0 315 1600
M20 2,01 1000 2,5 R0 315 2000

Material steel:
- Mechanical Properties in accordance to ISO 898-1
- Class 8.8
- Din 975
- Tollerances according to: ISO 4759-1 CAT C

Material stainless steel:
- Tolerance Class 6g
- Din 976-1

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
