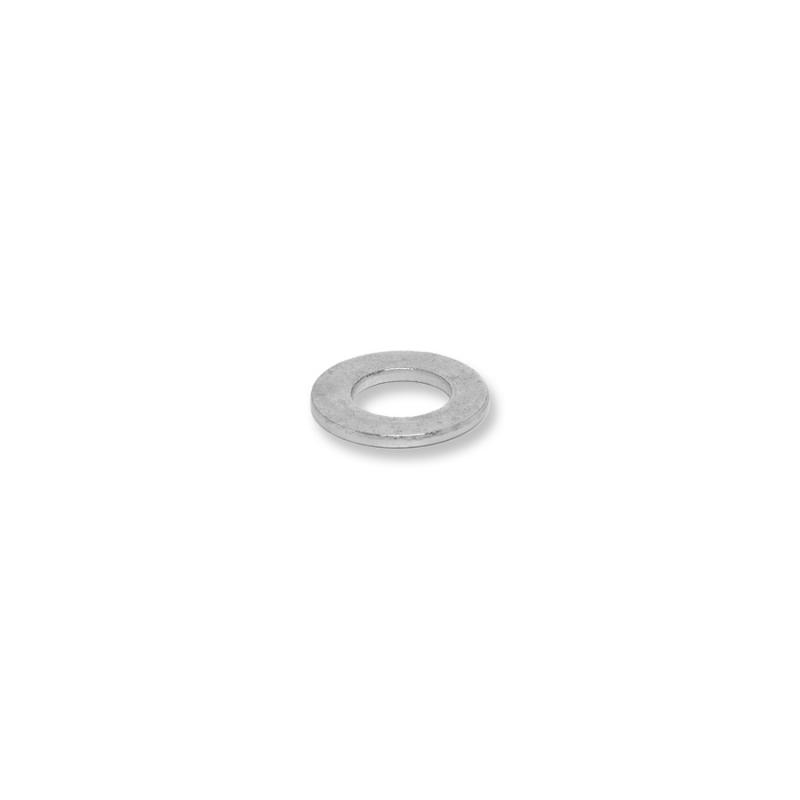

Washer
Dimension brush Weight Technical Info Code

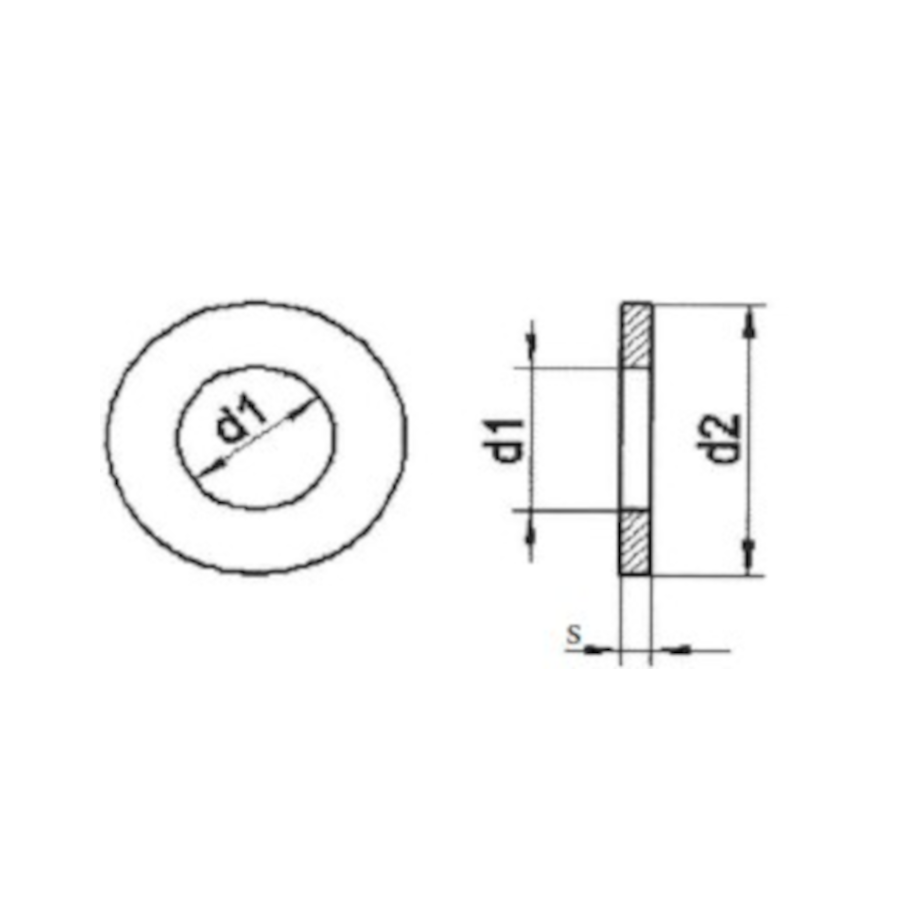

Ø - d1 conf/100* Ø - d2 s
Ø 6,4 0,08 Ø 12 1,6 T0 650 0600
Ø 8,4 0,18 Ø 16 1,6 T0 650 0800
Ø 10,5 0,40 Ø 20 2,0 T0 650 1000
Ø 13 0,63 Ø 24 2,5 T0 650 1200
Ø 17 1,13 Ø 30 3,0 T0 650 1600
Ø 21 1,70 Ø 37 3,0 T0 650 2000

UNI 6592 EN ISO 7089

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
47 Geomet® 321
Certified System

EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
UL - E471266

IMQ

Washer
