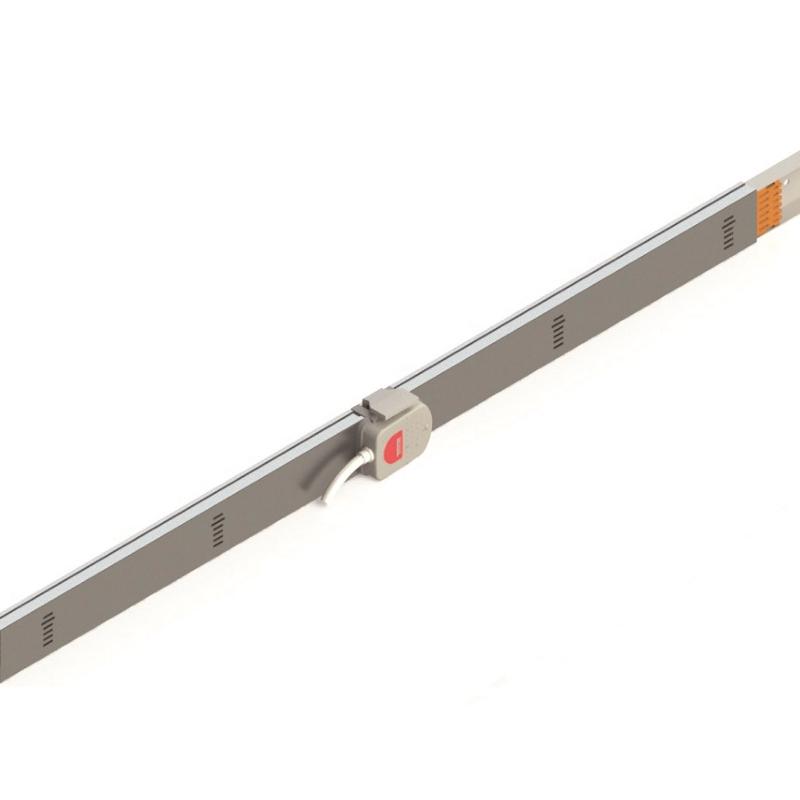

2/4/6 pole - 25A - straight element
Dimension Weight Technical Info Length Thickness edge Derivations Code
W (B) H [Kg/pcs] In (A) Conductors mm Al[mm] n°
17 47 0,70 25A 5P+N+T 1000 0,85 1 BA 25A 106
17 47 1,35 25A P+N+T 3000 0,85 5 BA 25A 3052S
17 47 1,65 25A 3P+N+T 3000 0,85 5 BA 25A 305S
17 47 2,10 25A 5P+N+T 3000 0,85 5 BA 25A 3065S

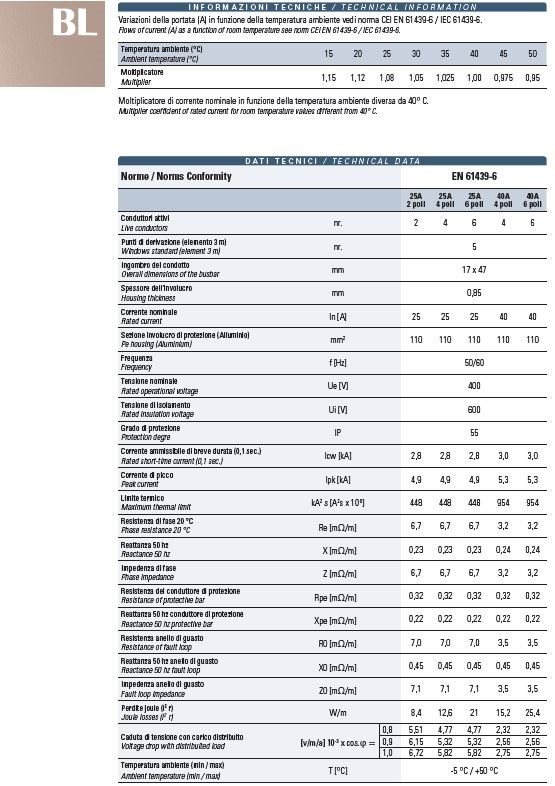

- Coating: AL 6060 T6 - used as earth conductor (PE)
- Equivalent copper cross-section of the coating: 69 mm2
- Protection degree IP55

Measurements other than 3 m can be provided upon request
The minimum length for measured parts is L = 600 mm

In accordance to:

CEI EN 61439-6 / IEC 61439-6

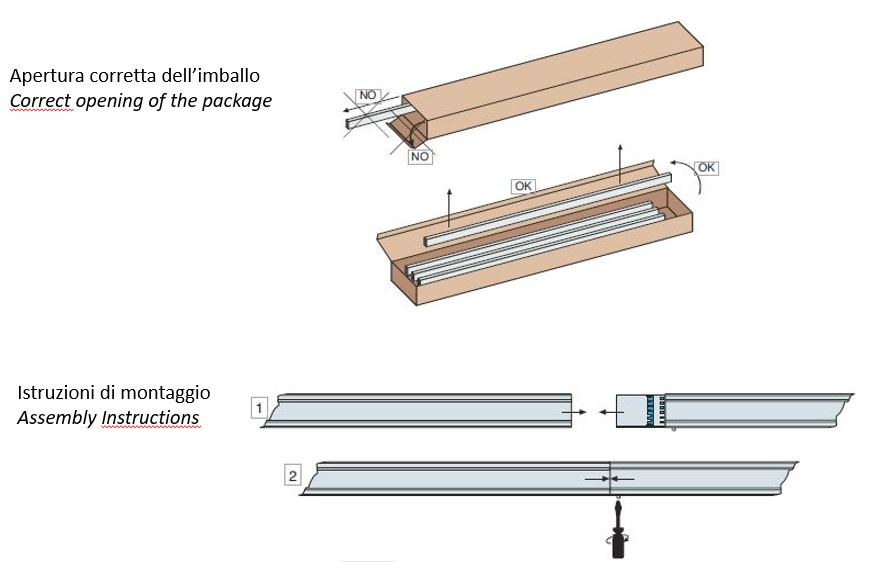

IMPORTANT

Combine the joint side of a bar with the other in the concuctor side.
Make sure that the snap insertion is performed correctly.

At the end of the installation, the profile of the busbar duct in both horizontal
and vertical planes must be lear.
If this is not the case,the brackets and shelves must be adjusted.
