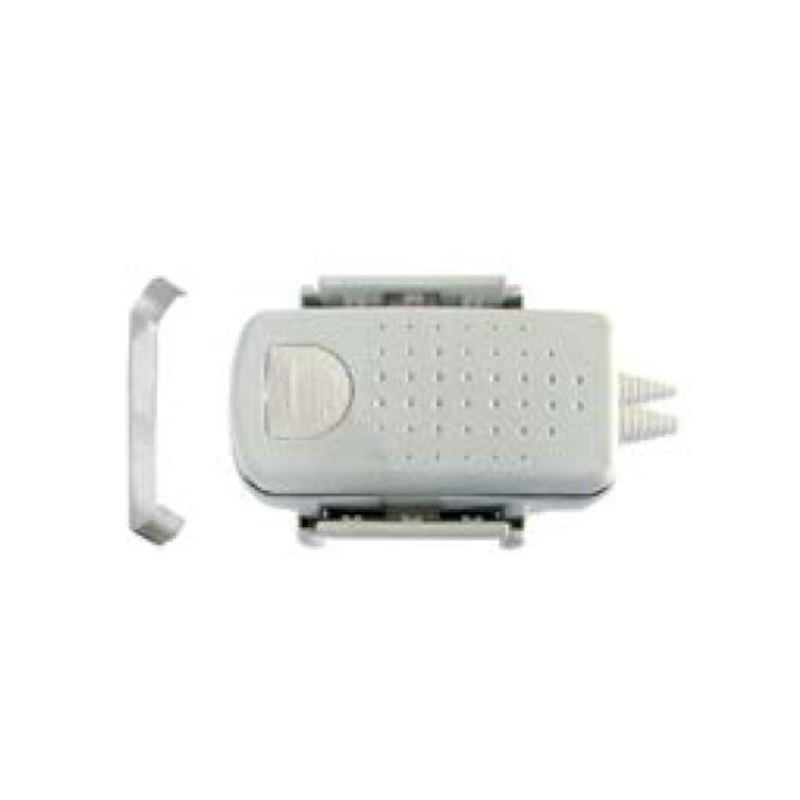

SBM16A plug

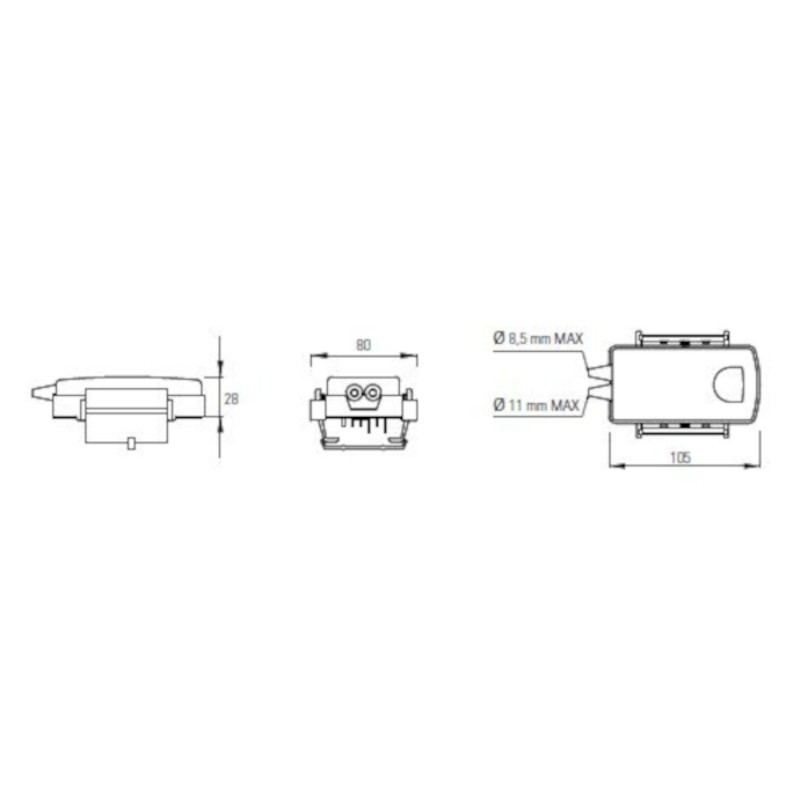

Dimension Weight Technical Info Terminal block Code
W (B) H [Kg/pcs] In (A) Contacts provided Fuse 5x20 mm² max
80 28 0,130 16A N+L+PE 16A 6 SBM 16A
In accordance to:

CEI EN 61439-6 / IEC 61439-6

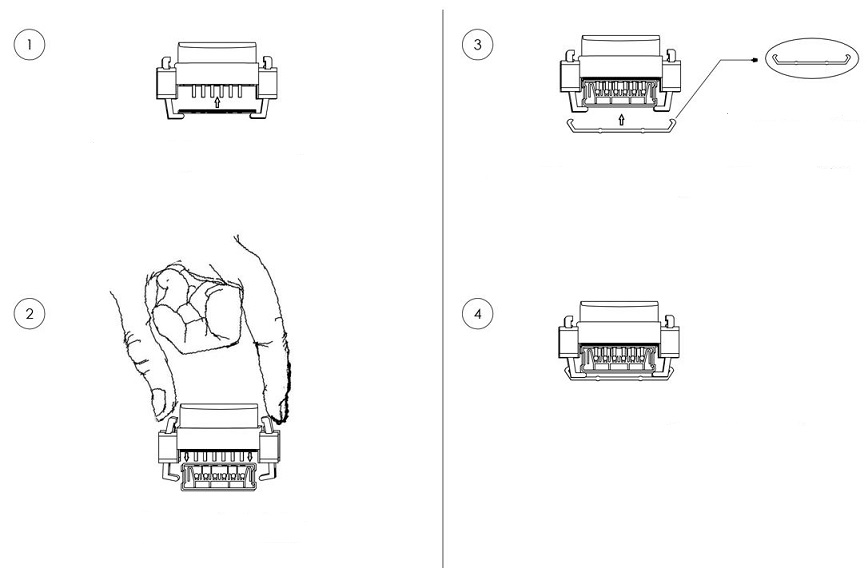

1 - Place the gasket upon the base of the tap-off
2 - Joint the tap-off to the busbar
3 - Tap-off assembly to the busbar put on the special safety spring - Safety spring COMPULSORY
4 - Tap-off assembly with the special safety spring

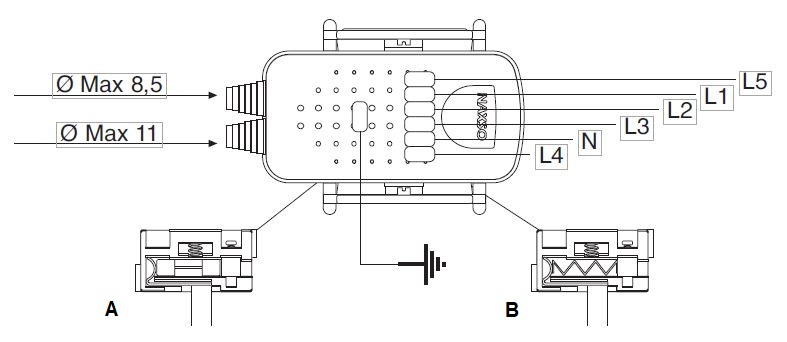

A - Contact with 16A fuse
B - Direct contact

SBM16A plug
