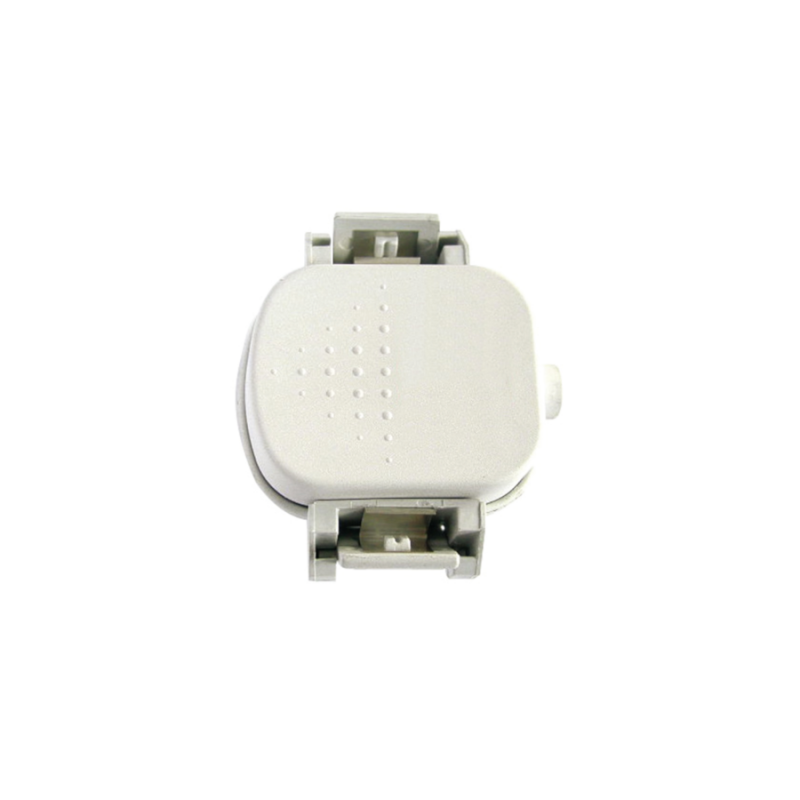

SM10AN Plug

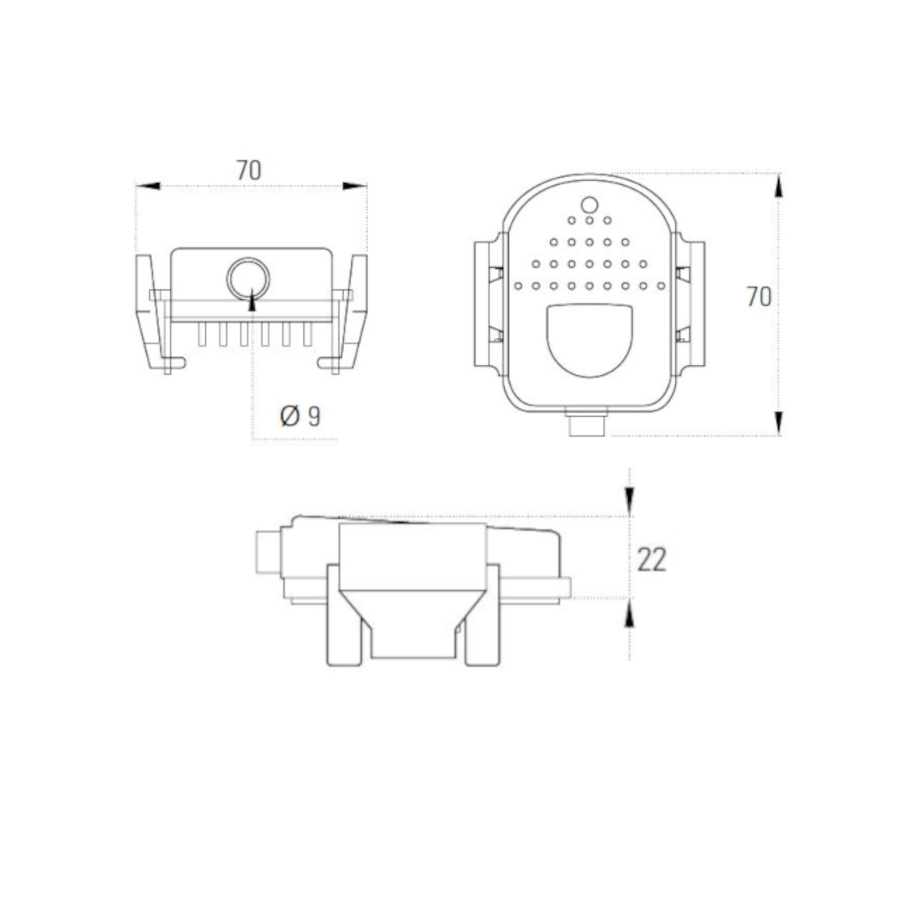

Dimension Weight Technical Info Terminal block Code
W (B) H [Kg/pcs] In (A) Contacts provided mm² max
70 22 0,084 10A N+L+PE 2,5 SM 10A N

Equipped with 2 direct 10A contacts and option of up to 6 poles

In accordance to:

CEI EN 61439-6 / IEC 61439-6

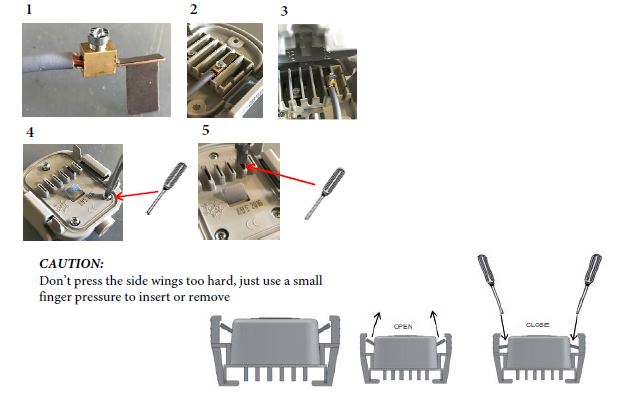

1 - 2 - CONNECT THE CABLES TO THE PHASE CONTACTS AND INSERT THEM IN THE DESIRED POSITION.
3 - PLACE THE SPRINGS ON THE COVER IN THE POSITION WHERE THE CONTACTS HAVE BEEN INSTALLED
4 - CLOSE THE PLUG COMPLETELY BY SCREWING THE 3 SCREWS LOCATED AT THE REAR AND MAKE SURE IT IS PROPERLY CLOSED IN PLACE.
5 - TEST THE SPRINGINESS OF THE TWO CONTACTS WITH A SCREWDRIVER - THE CONTACT MUST SPRING
