SFIPN plug
Dimension Weight Technical Info Derivations Terminal block Code
W (B) H [Kg/pcs] In (A) Contacts provided Fuse 5x20 mm² max mm² max

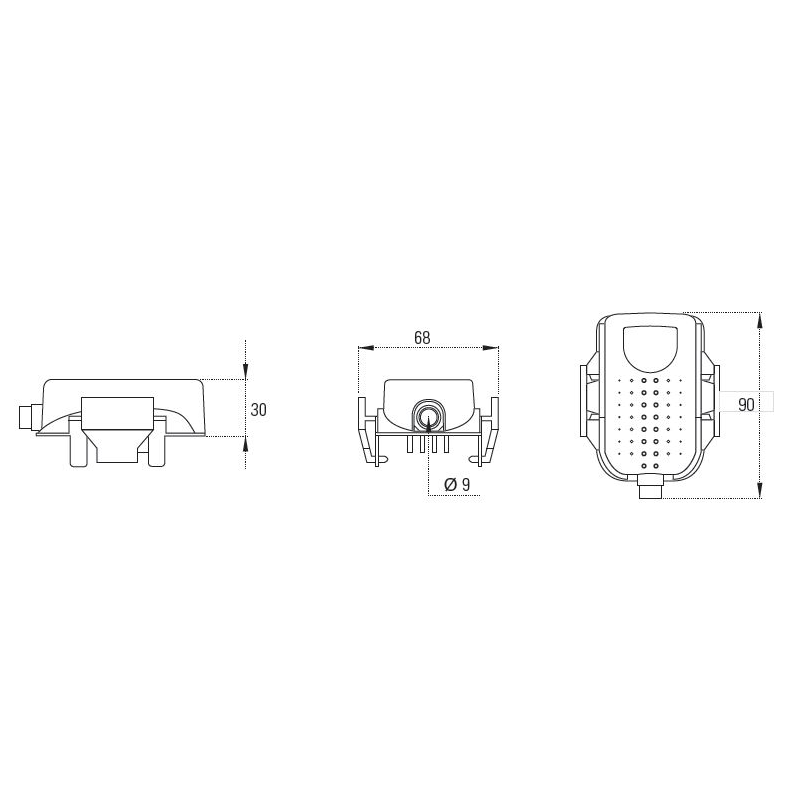

68 30 0,068 10A N+L+PE 6,3A incompatible L4-L5 2,5 SFI PN

Equipped with 1 contact with 6,3A fuse + 1 direct 10A contact and option of up to 4 poles

In accordance to:

CEI EN 61439-6 / IEC 61439-6

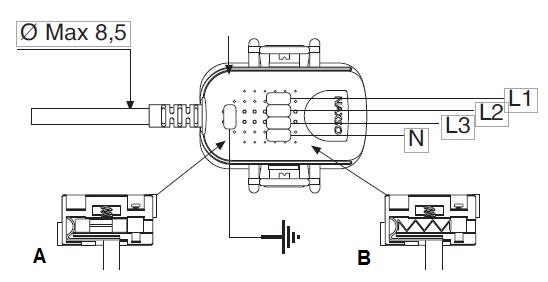

A - Contact with 6,3A fuse
B - Direct contact

SFIPN plug
