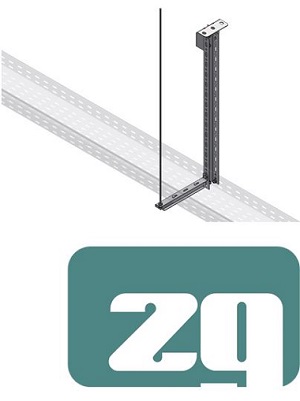

Single and double bracket for threaded bar

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] * SWL (Nm) * SWL (N)
200 2,00 0,41 200 - T0 412 0020
300 2,00 0,54 200 - T0 412 0030
100 x 100 2,00 0,48 - 2210 T0 412 1010
200 x 200 2,00 0,75 - 2210 T0 412 2020
300 x 300 2,00 1,01 - 2210 T0 412 3030

SWL Safe Working Load
* Bending moment of the pendant bracket at the supporting bracket:
** SWL of the pendant bracket with bracket sup-ported at the centre:
(When it is mounted on the high load capacity section item no. T0 042 2000 and in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)

List of Coatings
brush
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

According to:
EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

n.3 M8x20 T0 623 0820 + n.3 M8 T0 624 0800 + n.6 M8 T0 650 0800


Threaded bar
Single bracket - n.1 M10 R0 315 1000 + n.3 T0 624 1000 + n.2 T0 650 1000
Double bracket - n.2 M10 R0 315 1000 + n.6 T0 624 1000 + n.4 T0 650 1000

Not included

Single and double bracket for threaded bar


×
