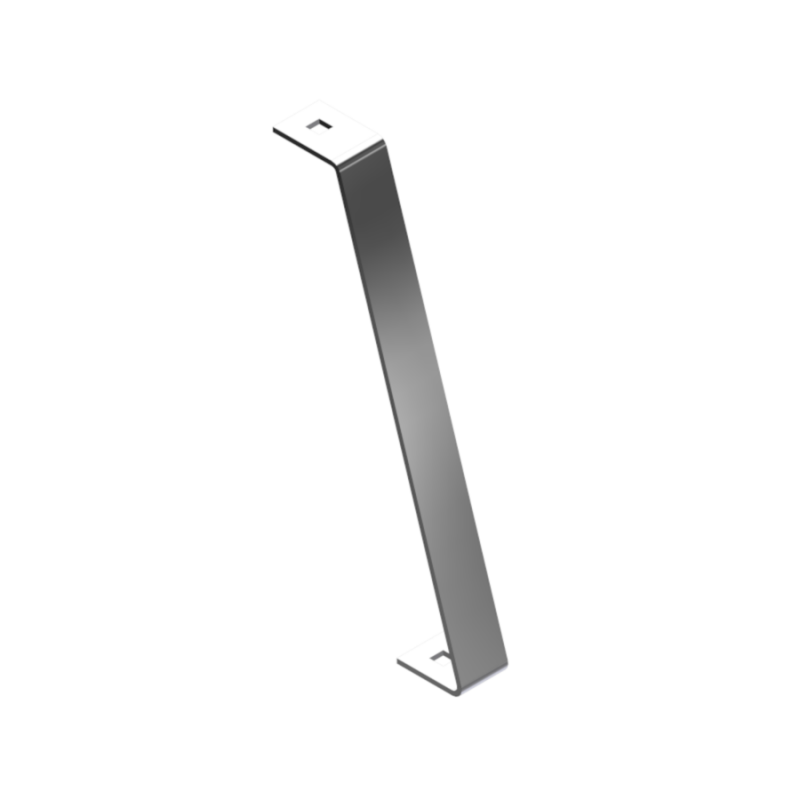

Tie for balance bracket for functional integrity

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

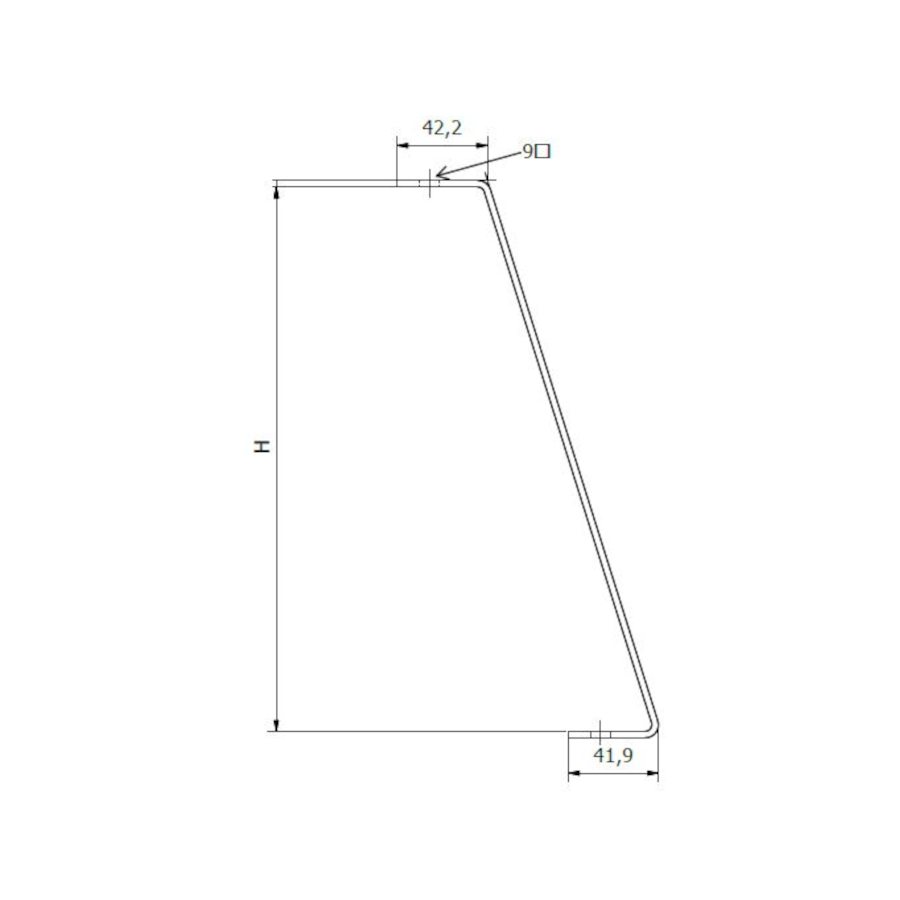

Dimension brush Thickness Weight Code
H [mm] [Kg]
250 3,00 0,247 T0 425 0020
250 3,00 0,264 T0 425 0030
List of Coatings
brush
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

According to:
EN 61537-1 ed.2007

Fire Resistance test - UNI EN 1363-1:2020

Tie for balance bracket for functional integrity
