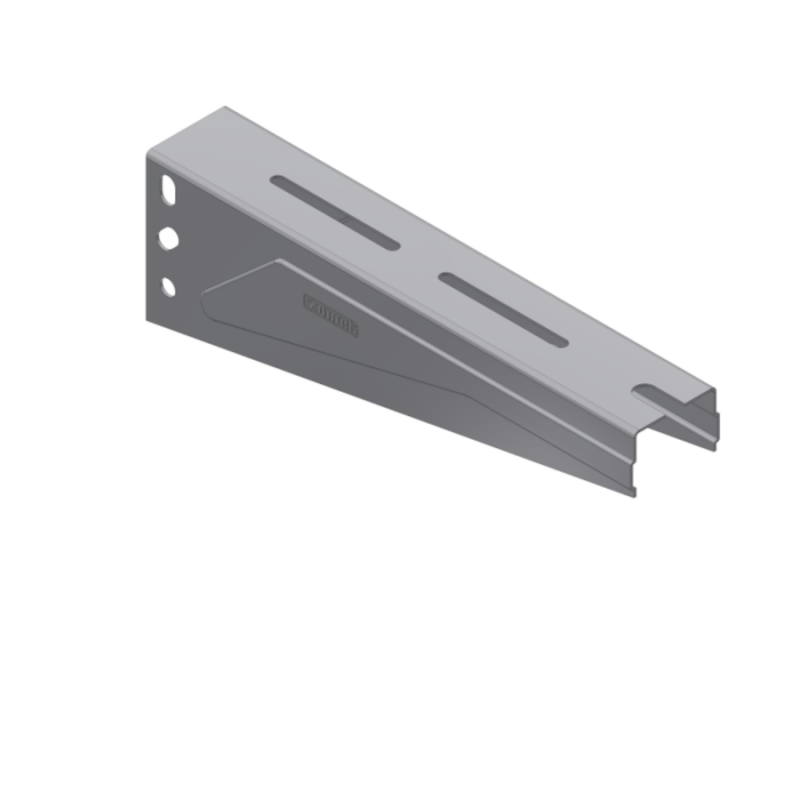

Upright bracket for threaded bar

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] a w (b) c **SWL (Nm) *SWL (N)
100 1,50 0,35 240 89 49 120 520 T0 420 0015
200 1,50 0,57 290 89 49 120 1040 T0 420 0020
300 1,50 0,77 390 89 49 120 1560 T0 420 0030
400 1,50 0,98 490 89 49 120 2080 T0 420 0040

SWL Safe Working Load
** Safe Working Load of the supporting bracket:
(F according to the paragraph 10.8.1 of the standard EN 61537:2007, verified with the test configuration shown in figure 6b)
* Bending moment of the pendant bracket at the supporting bracket:
(When it is mounted on the high load capacity section item no. T0 042 2000 and in such a way that the distance
between the ladder supporting surface and the anchoring surface is not less than 200 mm)

List of Coatings
brush
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088

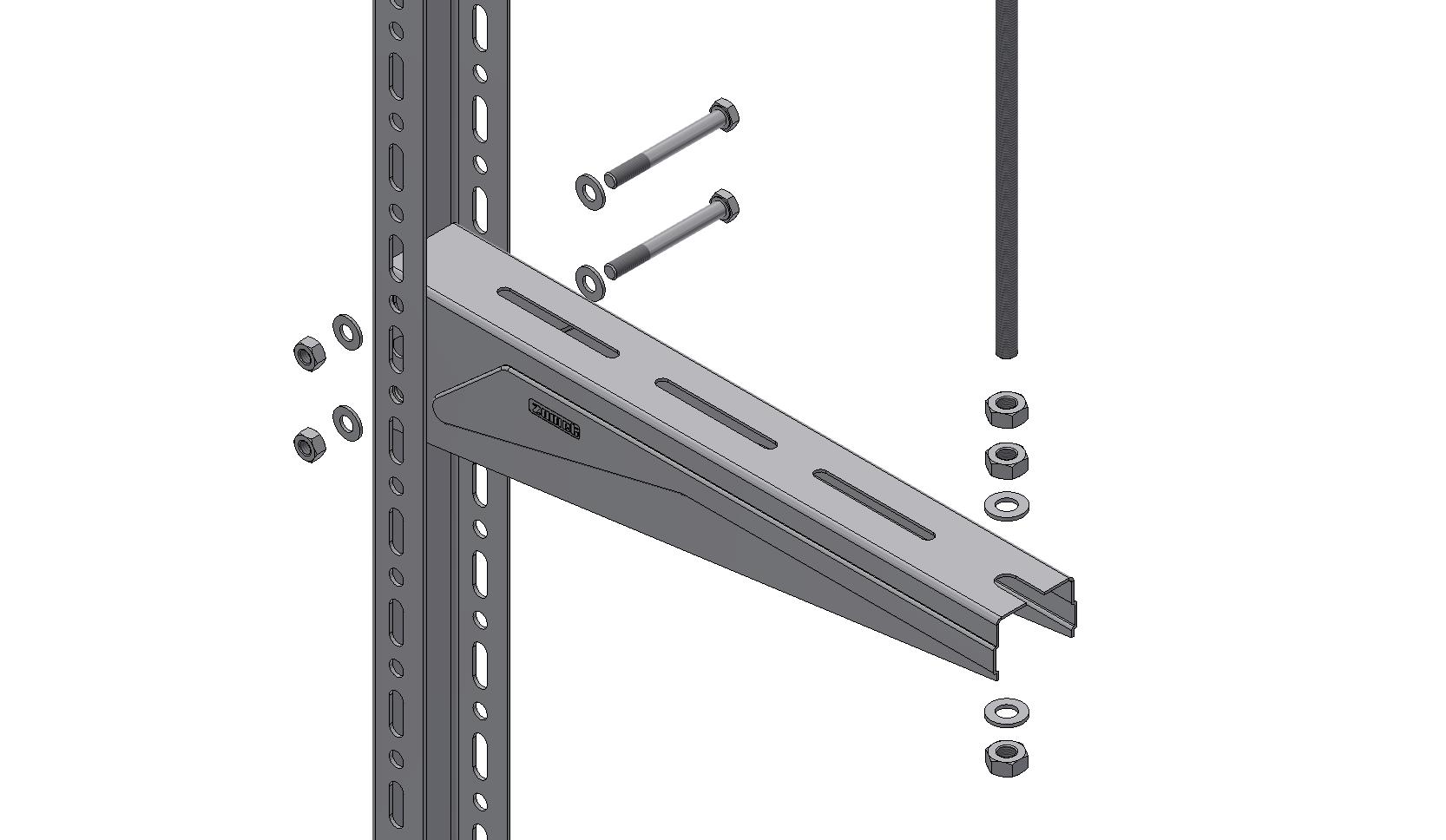

n.2 M8x70 T0 623 0870 + n.2 M8 T0 624 0800 + n.4 M8 T0 650 0800
or
n.4 M8x20 T0 623 0820 + n.4 M8 T0 624 0800 + n.8 M8 T0 650 0800

Threaded bar
M10 R0 315 1000 + n.3 T0 624 1000 + n.2 T0 650 1000

Not included

Upright bracket for threaded bar


×
