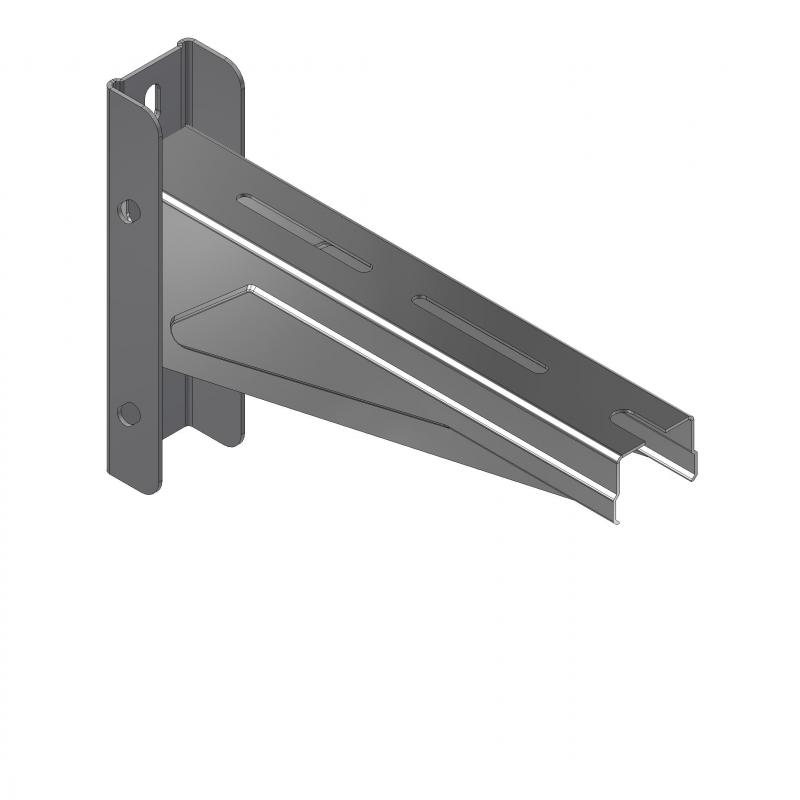

Wall or upright bracket for threaded bar

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] a w (b) c d **SWL (Nm) *SWL (N)
150 1,50 0,66 210 190 49 32 120 690 T0 430 0015
200 1,50 0,89 260 190 49 32 120 1040 T0 430 0020
300 1,50 1,08 360 190 49 32 120 1560 T0 430 0030
400 1,50 1,28 460 190 49 32 120 2080 T0 430 0040

SWL Safe Working Load
* Bending moment of the pendant bracket at the supporting bracket:
** SWL of the pendant bracket with bracket sup-ported at the centre:
(When it is mounted on the high load capacity section item no. T0 042 2000 and in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)

List of Coatings
brush
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

According to:
EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

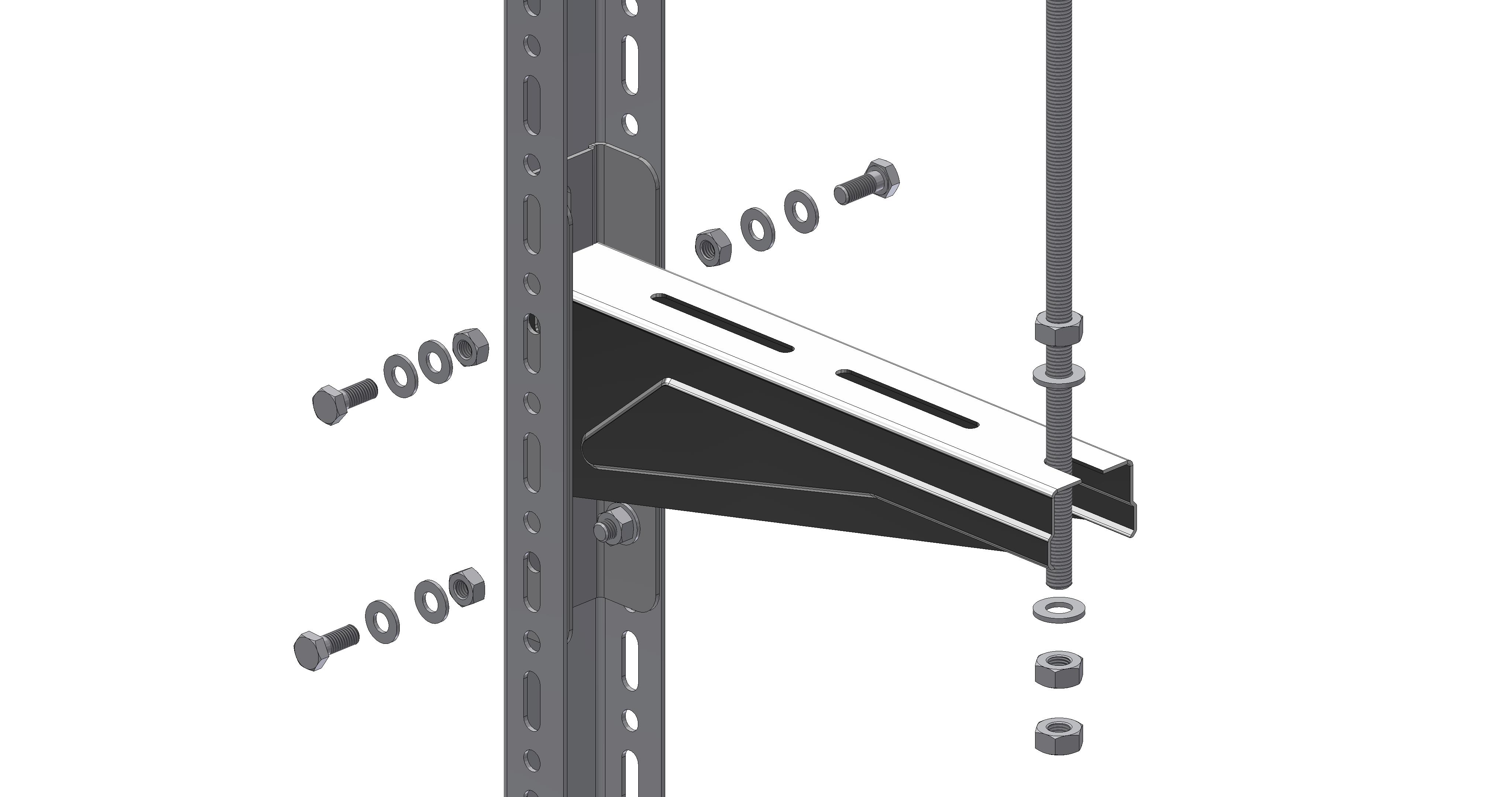

n.4 M8x20 T0 623 0820 + n.4 M8 T0 624 0800 + n.8 M8 T0 650 0800
or
n.2 M8x70 T0 623 0870 + n.2 M8 T0 624 0800 + n.4 M8 T0 650 0800

Threaded bar
M10 R0 315 1000 + n.3 T0 624 1000 + n.2 T0 650 1000

Not included
