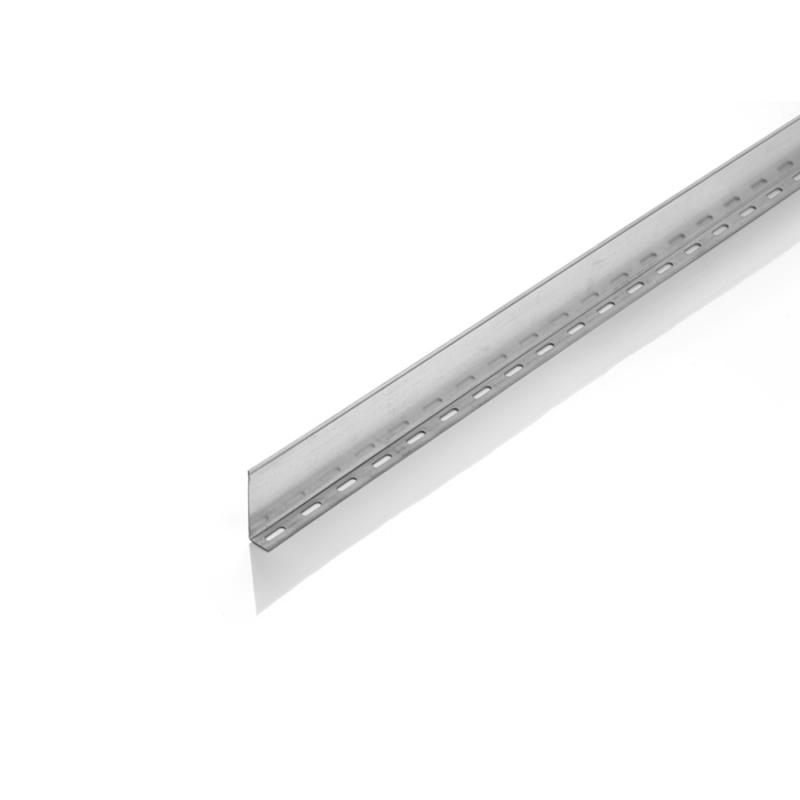

Separator with bent top edge - M0 065

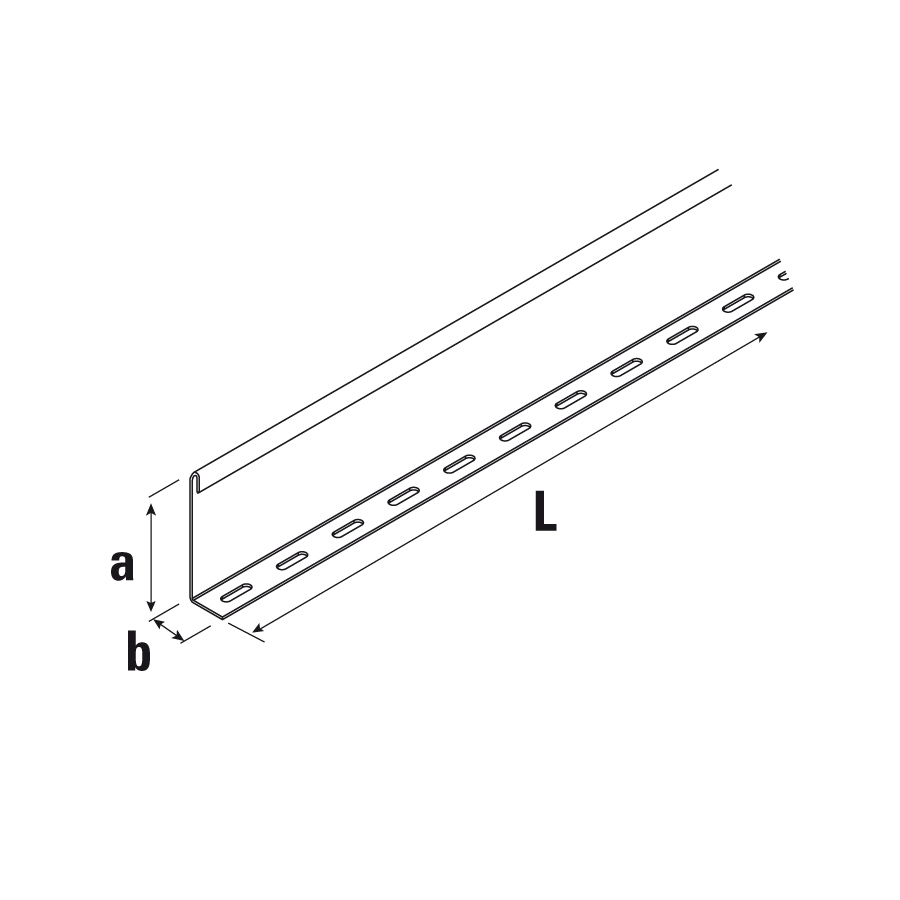

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg/m] a w (b) L
75 1,00 0,67 59 25 2000 M0 065 0602
100 1,00 0,87 84 25 2000 M0 065 0902
150 1,00 1,26 134 25 2000 M0 065 1402

Minimum distance from the edge of the cable way = 100 mm
Assembly with: T0 620 0610+T0 624 0600

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Separator with bent top edge - M0 065
