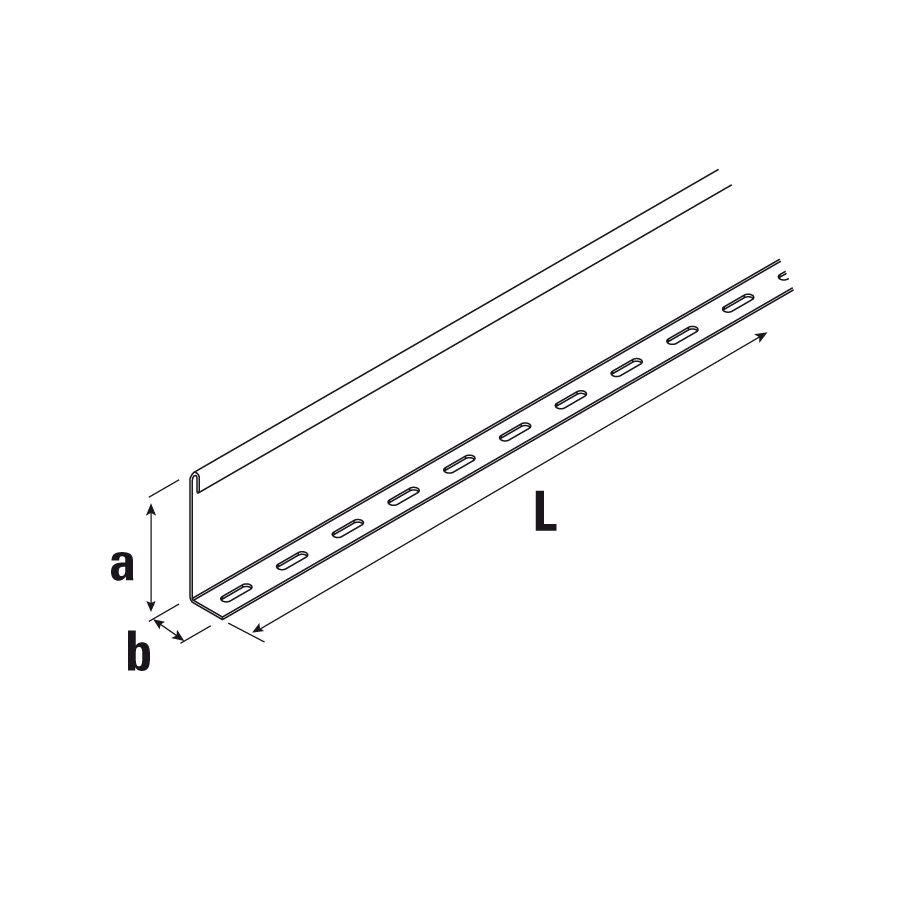

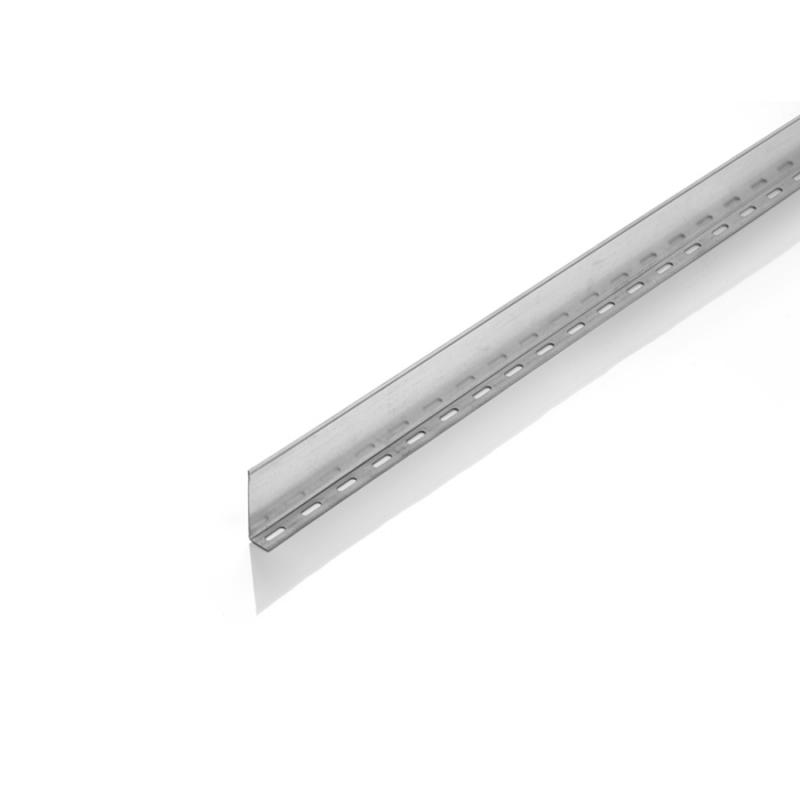

Separator with bent top edge - M0 066
Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg/m] a w (b) L
**150 1,00 1,38 148 25 2000 M0 066 1482
**100 1,00 0,95 98 25 2000 M0 066 9802

** Installable from Base 300 (Base 200 only on the center line of the channel)
Assembly with: T0 620 0610+T0 624 0600

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Separator with bent top edge - M0 066
