135° angle plate

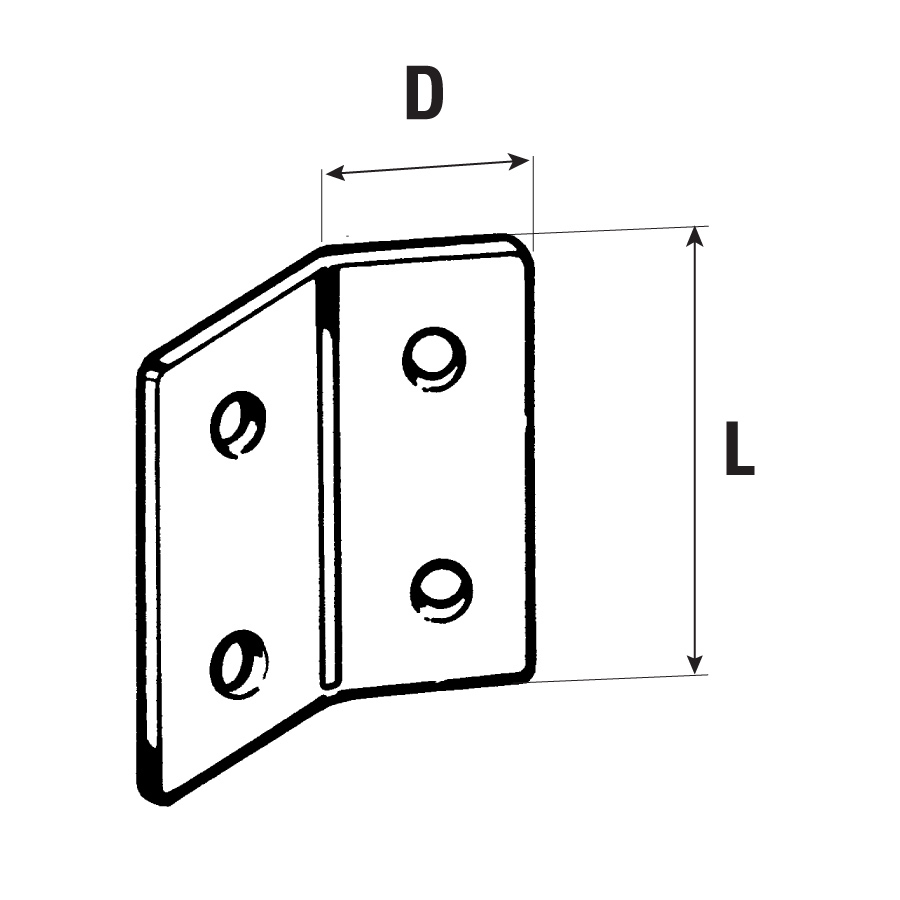

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] L d
50 2,00 0,05 44 37 M0 460 0005
75 2,00 0,08 68 37 M0 460 0007
100 2,00 0,11 95 37 M0 460 0010
150 2,00 0,17 145 37 M0 460 0015

H. 50 -75
Assembly with n°2 M0 560 + T0 621
for components without male clutch

H.100 -150
Assembly with n°4 M0 560 + T0 621
for components without male clutch

List of Coatings
brush
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

135° angle plate
