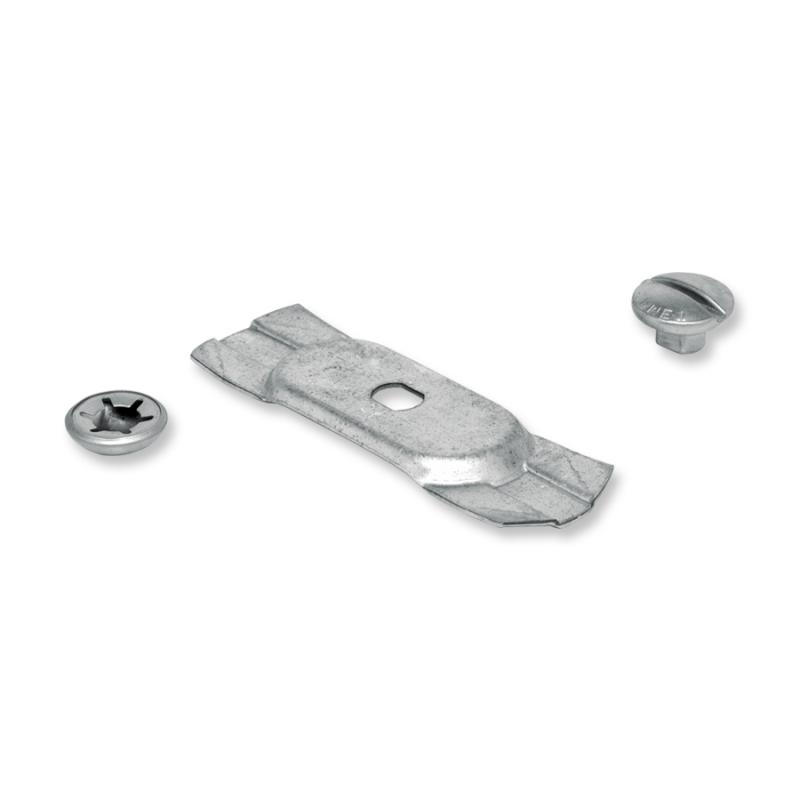

Winged locking - Smooth cover

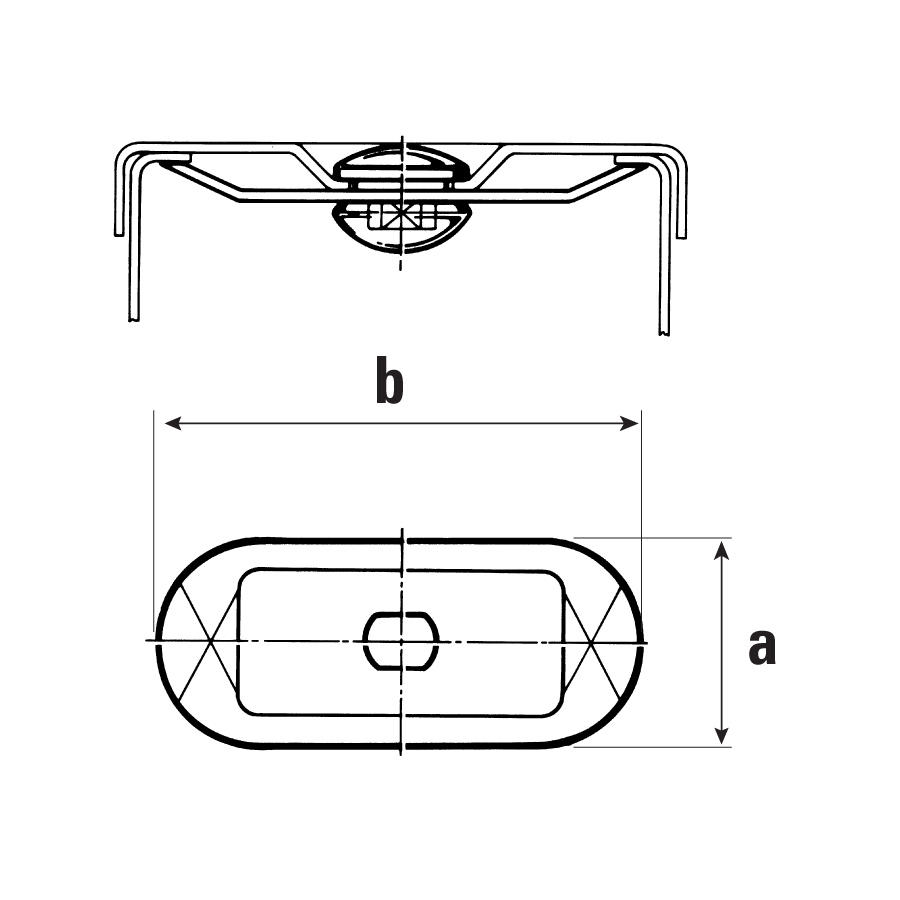

Dimension brush Thickness Weight Technical Info Code
B cover Cover B [mm] [Kg] a w (b)
50 50 1,20 0,02 30 45 M0 490 0005
75 75 1,20 0,03 30 73 M0 490 0007
100 100 1,20 0,04 30 97 M0 490 0010

For Cover Base 150-200-300-400-500-600 - Assembly with winged locking M0 490 0007

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
49 Galvanised steel with IV S Fe/Zn 12 treatment - UNI 7687
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Winged Clamps

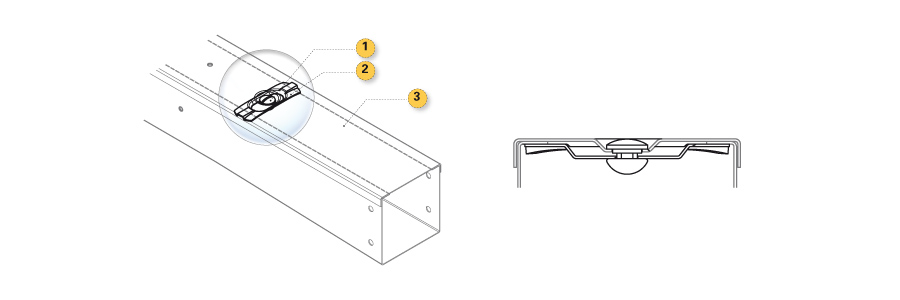

The cover clamp allows a good seal and creates a strong system body. The outside screw (1) is used to turn and clamp the wing (2), which is inserted in the cover (3) avoiding dangerous roughness.

Winged locking - Smooth cover
