Outside joint (for elbows)

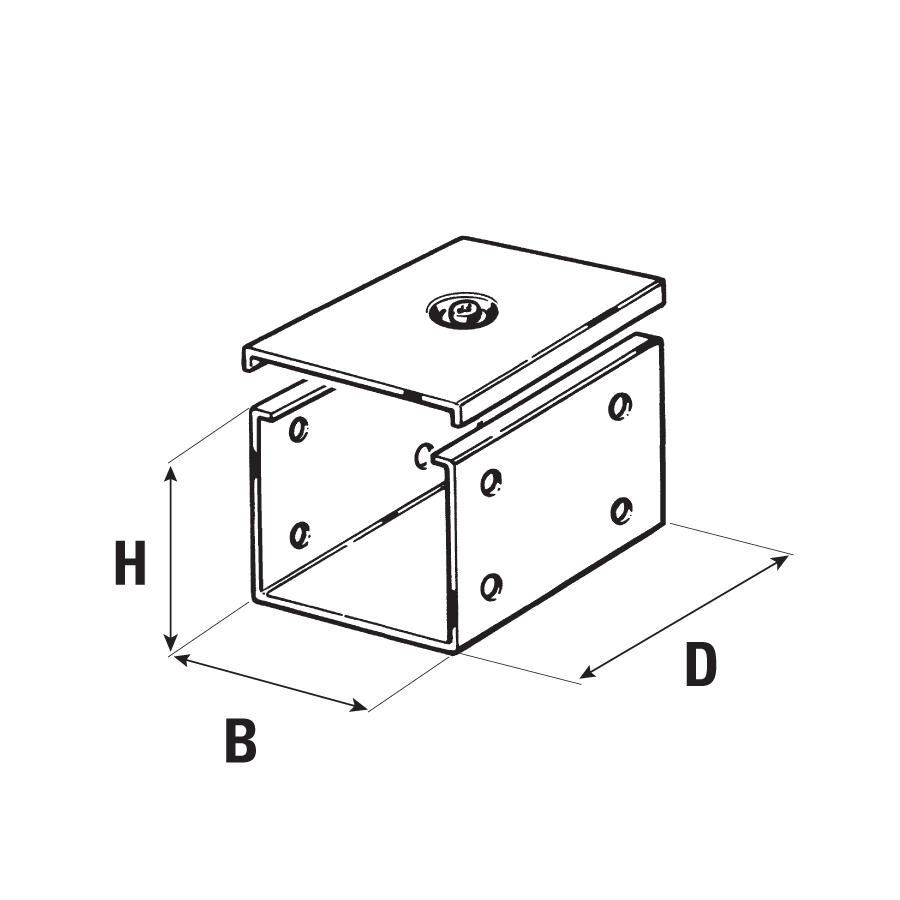

Dimension brush Thickness Weight Technical Info Code
H W (B) [mm] [Kg] d No.of Holes Ø8
50 50 1,50 0,23 76 4 M0 400 0505
75 75 1,50 0,34 76 4 M0 400 0707
100 100 2,00 0,58 76 8 M0 400 1010
100 150 2,00 0,73 76 8 M0 400 1015
100 200 2,00 0,85 76 8 M0 400 1020
100 300 2,00 1,09 76 10 M0 400 1030
100 400 2,00 1,33 76 10 M0 400 1040
100 500 2,00 1,58 76 10 M0 400 1050
100 600 2,00 1,82 76 10 M0 400 1060
150 300 2,00 1,21 76 10 M0 400 1530
150 400 2,00 1,45 76 10 M0 400 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

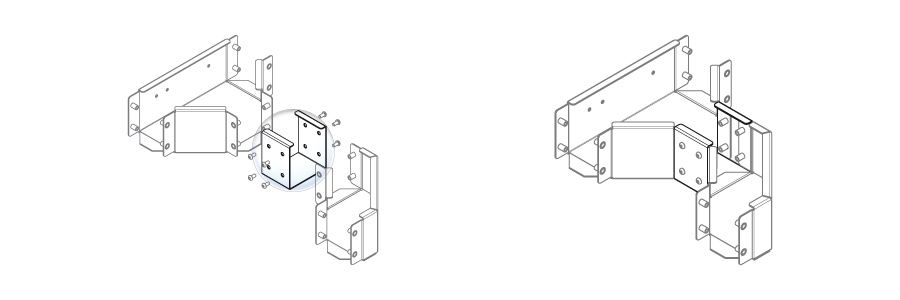

Joint between elbows

Indispensable element for connecting an elbow with other components, such as elbows, Ts, junctions, etc.

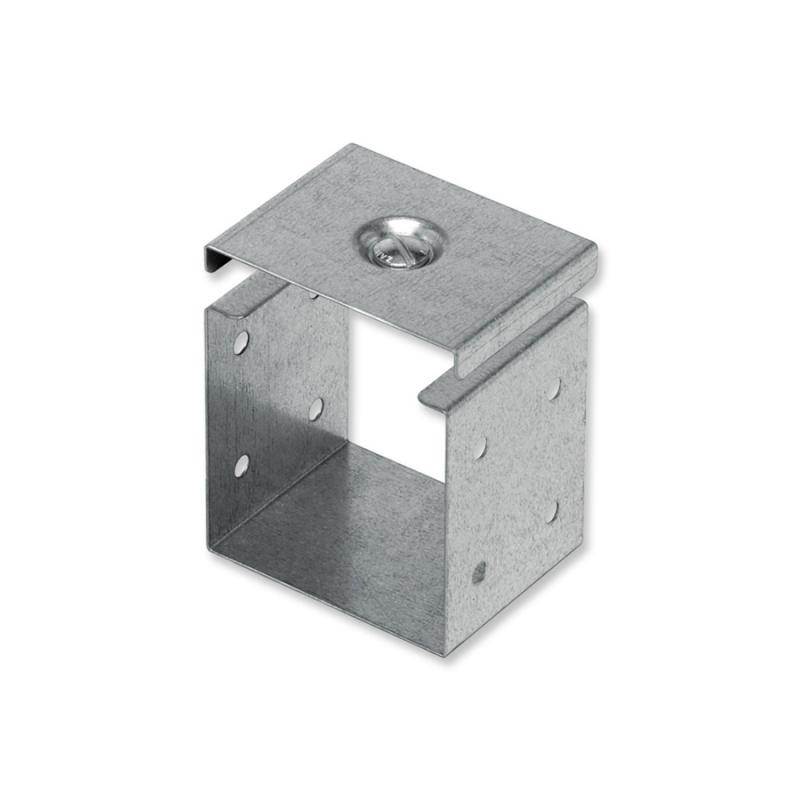

Outside joint (for elbows)
