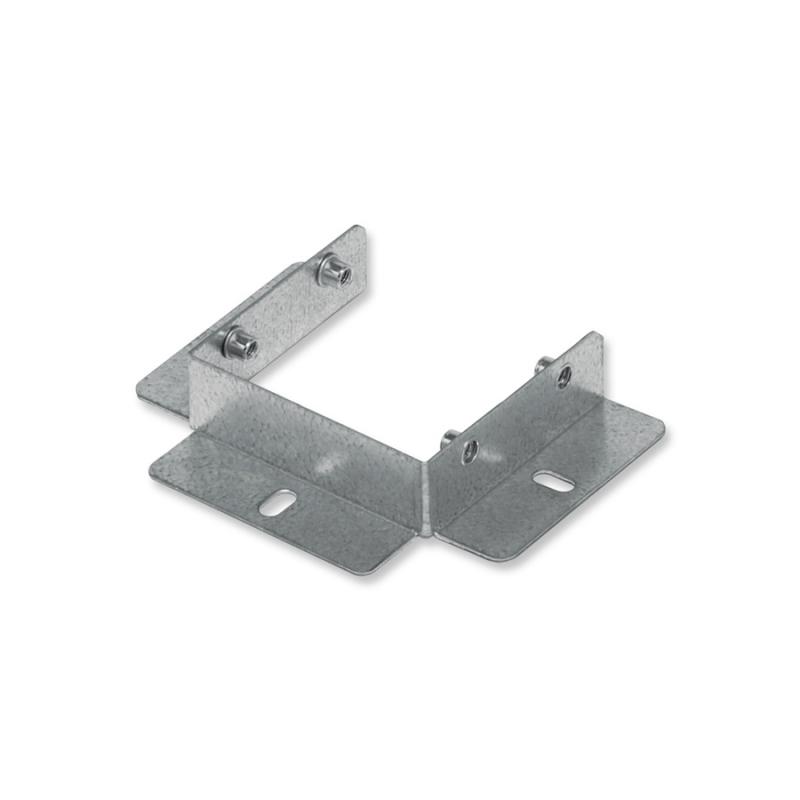

Zamet - ZM - M0 410 - Flange with threaded inserts

Flange with threaded inserts

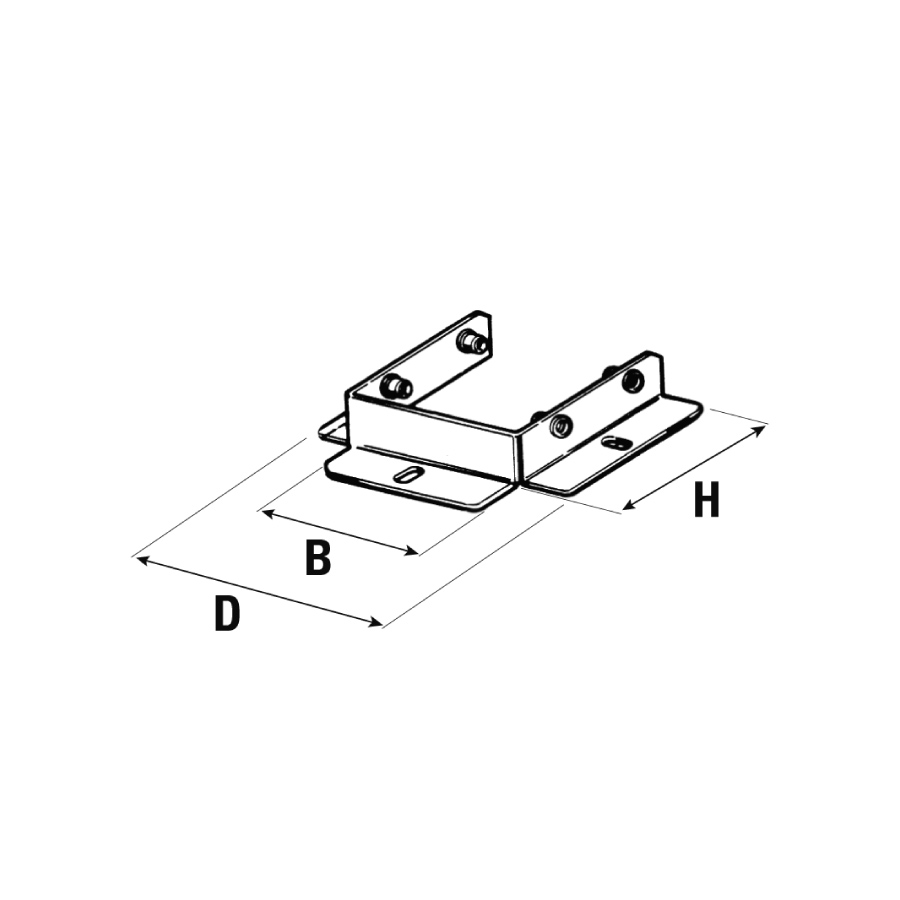

Dimension				Thickness	Weight	Technical Info		Code

H	W (B)			[mm]	[Kg]	d	No.of Inserts Ø6

50	50	01		1,50	0,09	102	2	M0 410 0505
75	75	01		1,50	0,14	127	2	M0 410 0707
100	100		20	2,00	0,25	151	4	M0 410 1010
100	150		20	2,00	0,29	201	4	M0 410 1015
100	200		20	2,00	0,34	251	4	M0 410 1020
100	300		20	2,00	0,43	351	5	M0 410 1030
100	400		20	2,00	0,52	451	5	M0 410 1040
100	500		20	2,00	0,61	557	5	M0 410 1050
100	600		20	2,00	0,70	658	5	M0 410 1060
150	300		20	2,00	0,52	351	5	M0 410 1530
150	400		20	2,00	0,61	451	5	M0 410 1540

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
