Zamet - ZM - M0 390 - Inside “U” joint for Trunkings

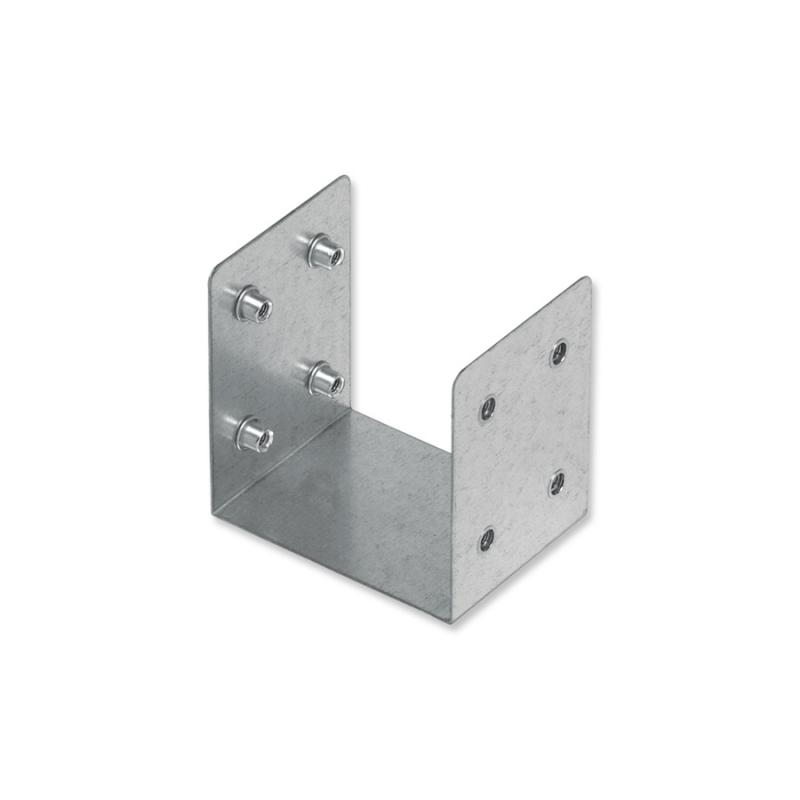

Inside “U” joint for Trunkings

With threaded inserts

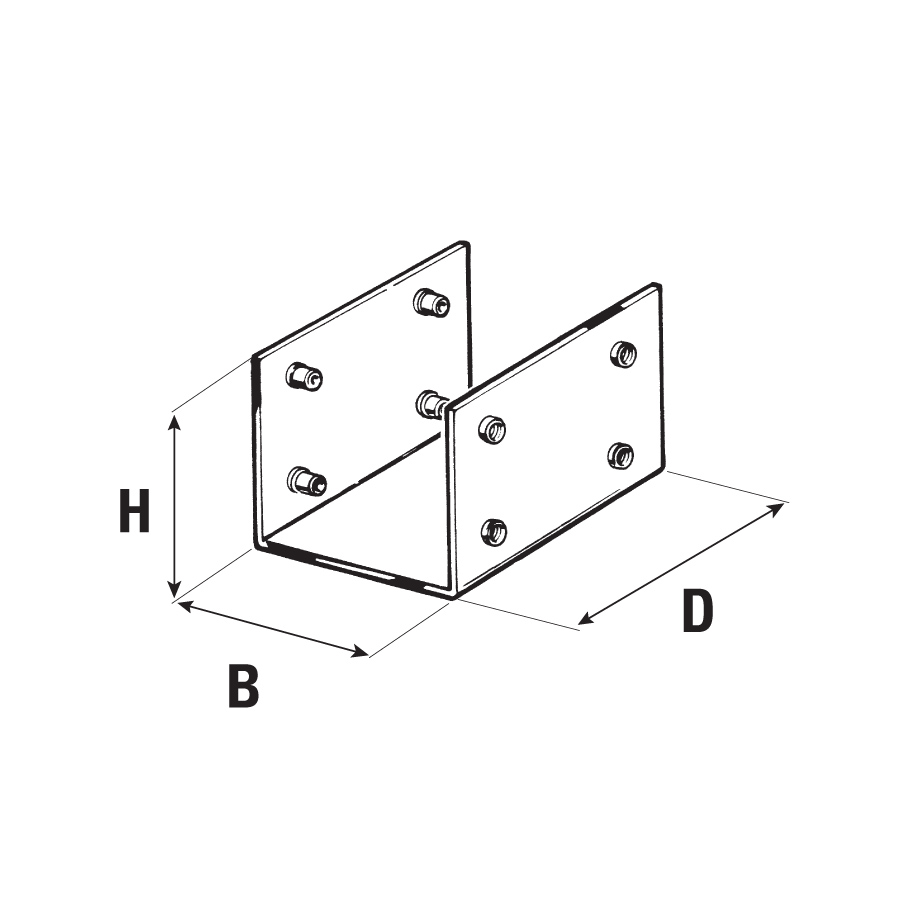

Dimension				Thickness	Weight	Technical Info		Code

H	W (B)			[mm]	[Kg]	d	No.of Inserts

50	50	01		1,50	0,13	76	4	M0 390 0505
75	75	01		1,50	0,20	76	4	M0 390 0707
100	100		20	2,00	0,36	76	8	M0 390 1010
100	150		20	2,00	0,42	76	8	M0 390 1015
100	200		20	2,00	0,48	76	8	M0 390 1020
100	300		20	2,00	0,60	76	10	M0 390 1030
100	400		20	2,00	0,72	76	10	M0 390 1040
100	500		20	2,00	0,84	76	10	M0 390 1050
100	600		20	2,00	0,96	76	10	M0 390 1060
150	300		20	2,00	0,72	76	10	M0 390 1530
150	400		20	2,00	0,84	76	10	M0 390 1540

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
