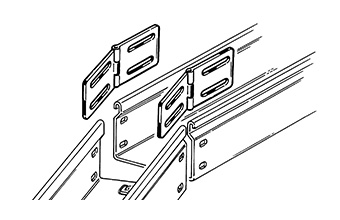

Articulated horizontal joint - T0 204

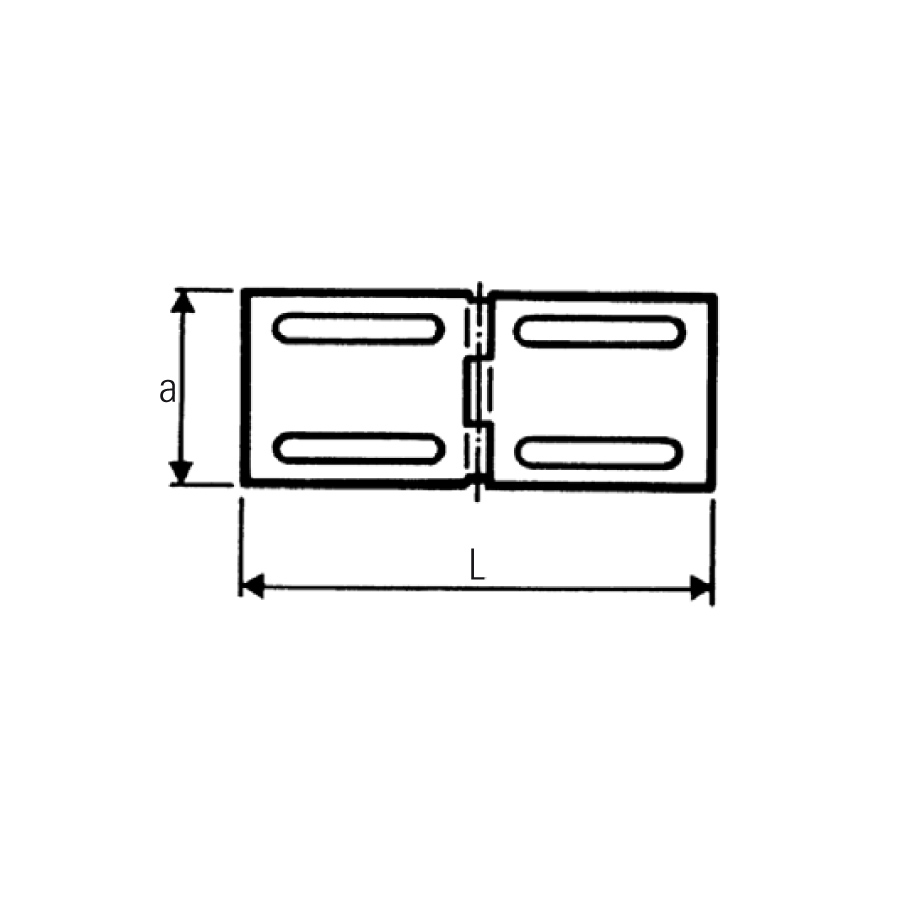

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] a L
50 1,50 0,08 26 200 T0 204 0005
75 1,50 0,13 53 200 T0 204 0007
100 1,50 0,18 76 200 T0 204 0010
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

n. 4 M6x10 / M6x12 T0 620 0610 / T0 620 0612
n. 4 M6 T0 621 0600

Not included

With the S3 204 code item, a supporting device will have to be applied

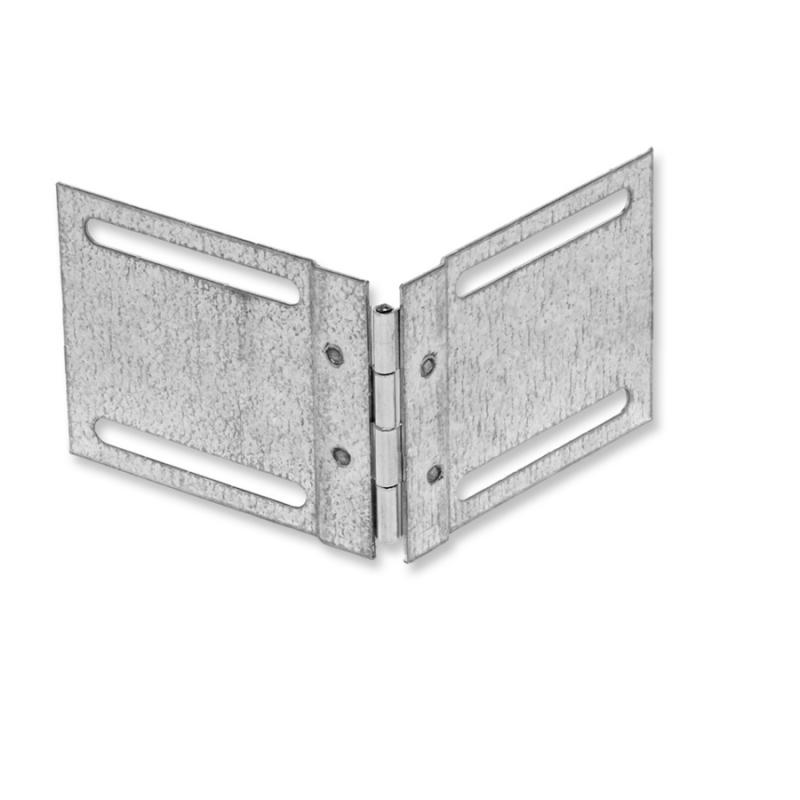

Articulated horizontal joint - T0 204
