Zamet - ZT - T0 079 - Height Reducer with Cover

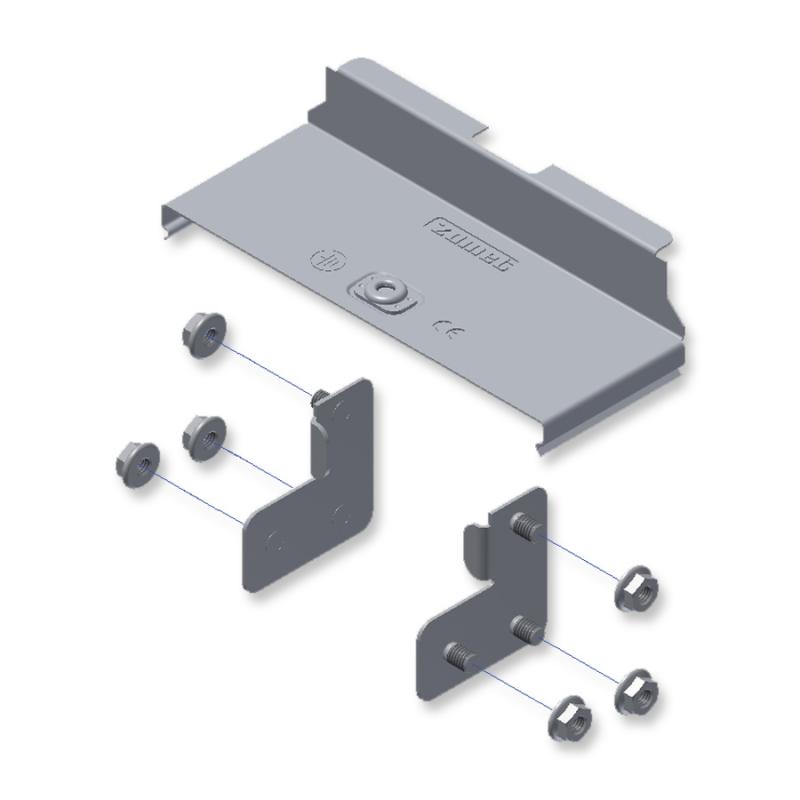

Height Reducer with Cover

Assembly with: 1rh. + 1lf. + N°6 T0 621 - included

Dimension					Weight	Code

W (B)					[Kg]

100	01	11	15	40	0,10	T0 079 2313
150	01	11	15	40	0,13	T0 079 2414
200	01	11	15	40	0,16	T0 079 2515
300	01	11	15	40	0,23	T0 079 2616
400	01	11	15	40	0,30	T0 079 2717
500	01	11	15	40	0,36	T0 079 2818
600	01	11	15	40	0,43	T0 079 2919

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	11	Grey RAL 7032 - ISO9227-ISO6270-ISO2810
	15	Blue RAL 5015 - ISO9227-ISO6270-ISO2810
	40	Stainless steel AISI 304 - UNI EN 10088

Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
