Code | |||
|---|---|---|---|---|
| T0 240 0045 | ||||
| T0 240 0048 | ||||

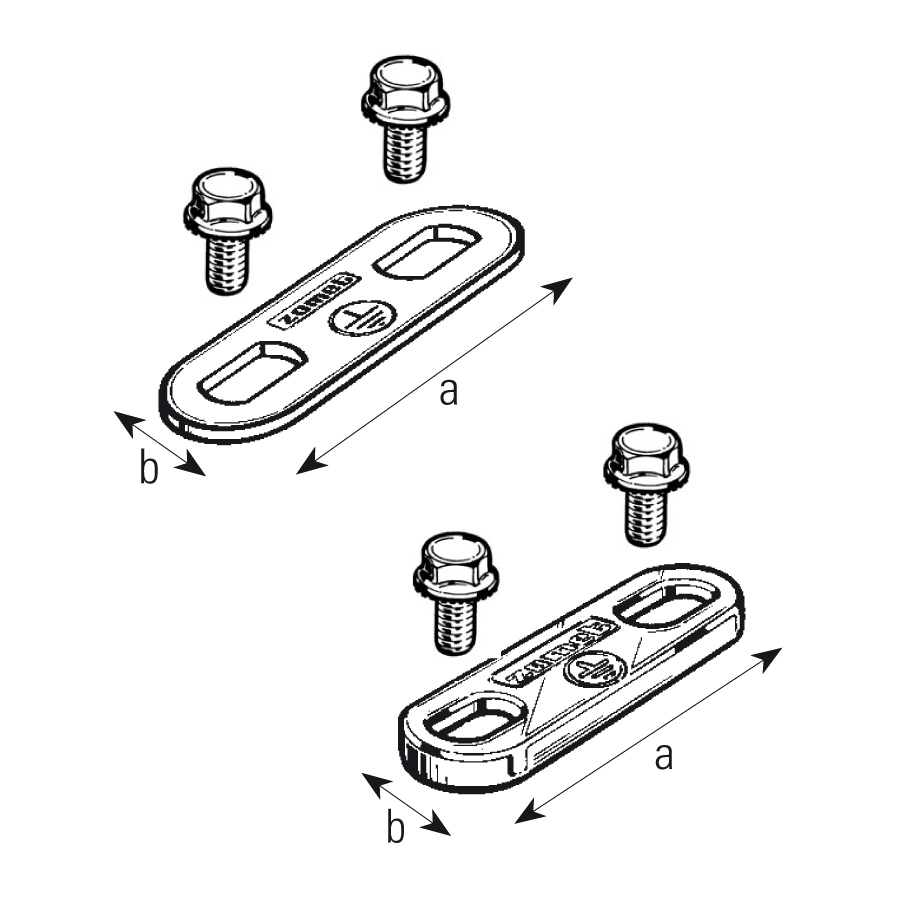

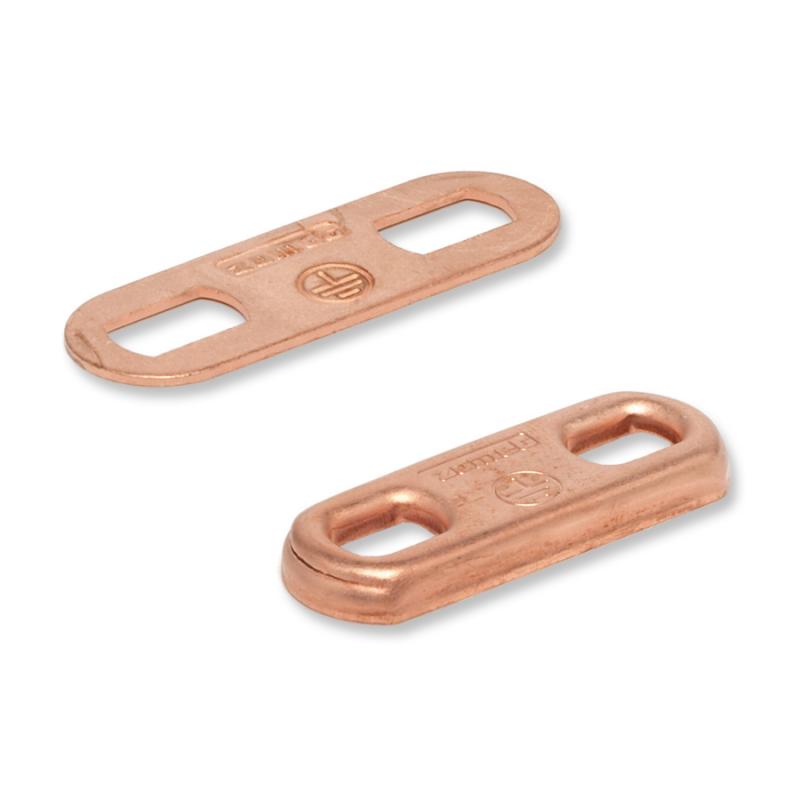

T0 240 0048 - Copperplate for inside "U"joint
| 33 | Copper-coated |
- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
n.2 M6x6 T0 622 0606 - included

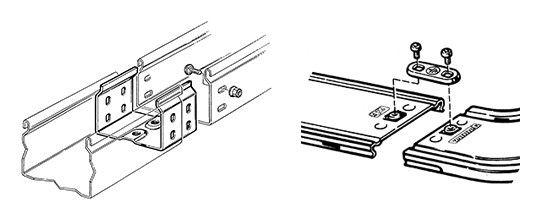

In the case of the installation of internal “U” joints on painted items,
preparation with equipotential plates is required.

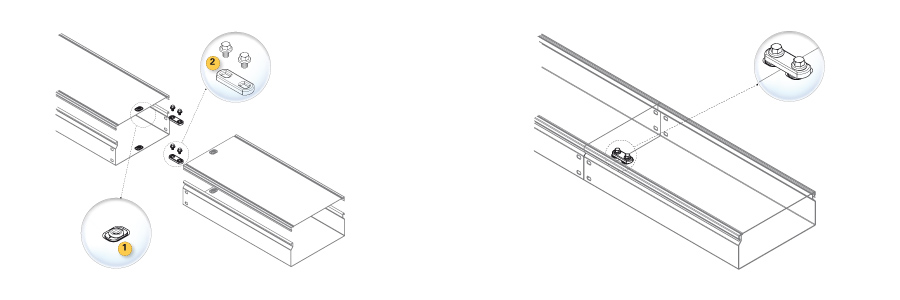

Both covers and trunking have a threaded electro-welding indentation (1) for receiving the earthing devices
(2) in order to guarantee the perfect equipotential connection of the various components of the ZT system.
