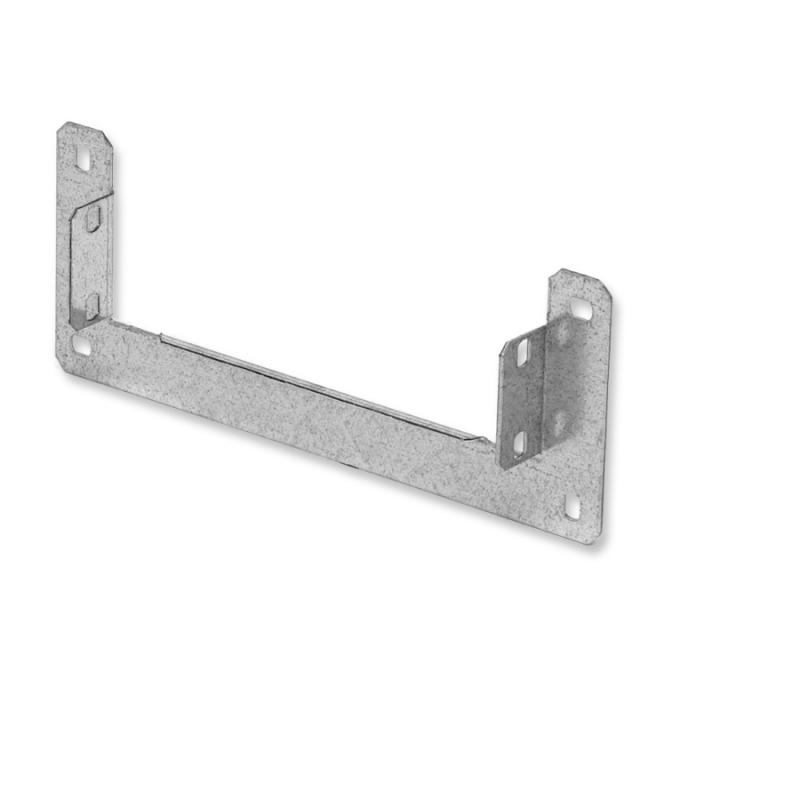

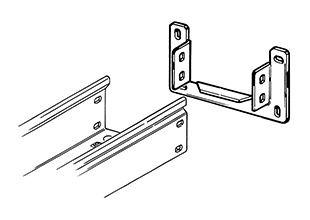

Flange for reducer for panel mount
H 50
H 75
H 100

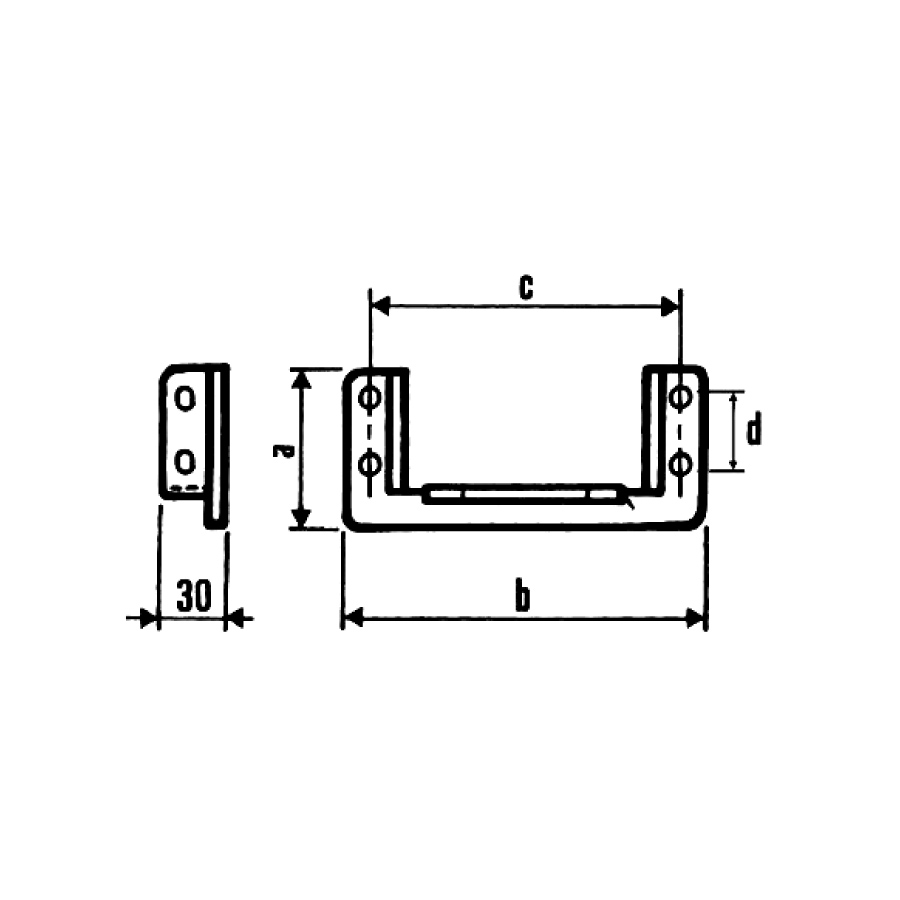

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] a w (b) c d
50 1,50 0,07 75 100 75 50 T0 261 0505
100 1,50 0,09 75 150 125 50 T0 261 0510
150 1,50 0,11 75 200 175 50 T0 261 0515
200 1,50 0,13 75 250 225 50 T0 261 0520
300 1,50 0,17 75 350 325 50 T0 261 0530
400 1,50 0,21 75 450 425 50 T0 261 0540
500 1,50 0,25 75 550 525 50 T0 261 0550
600 1,50 0,29 75 650 625 50 T0 261 0560
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

H 50 n. 2 M6x10 / M6x12 T0 620 0610 / T0 620 0612
n. 2 M6 T0 621 0600
for each flange
H 75-100 n. 4 M6x10 / M6x12 T0 620 0610 / T0 620 0612
n. 4 M6 T0 621 0600
for each flange

Not included
