End closure/reduction plate protection level IP20

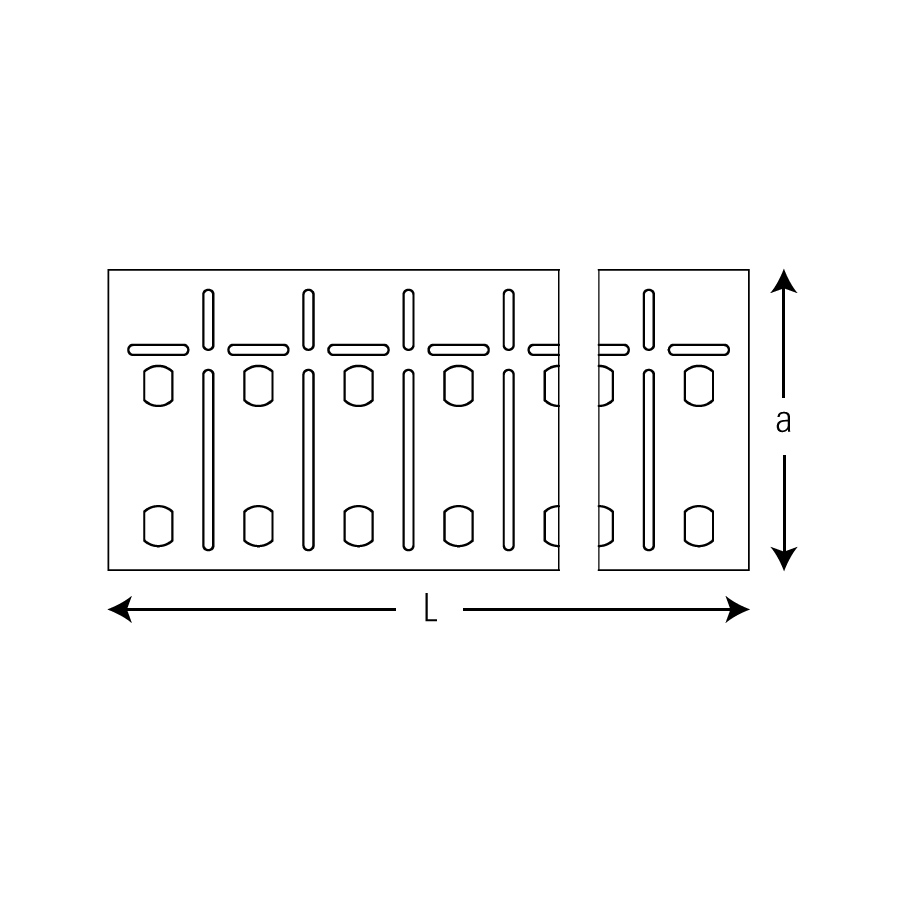

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] a L
50 1,00 0,38 50 1000 T0 251 0005
75 1,00 0,55 75 1000 T0 251 0007
100 1,00 0,74 100 1000 T0 251 0010
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

H 50 n. 2 M6x10 / M6x12 T0 620 0610 / T0 620 0612
n. 2 M6 T0 621 0600
H 75-100 n. 4 M6x10 / M6x12 T0 620 0610 / T0 620 0612
n. 4 M6 T0 621 0600

Not included

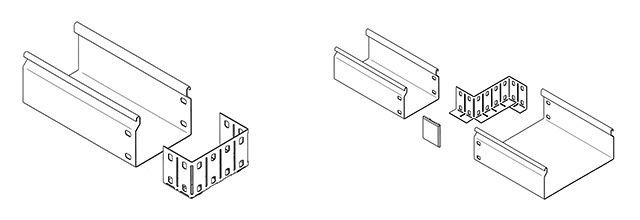

End closure/reduction plate protection level IP20
