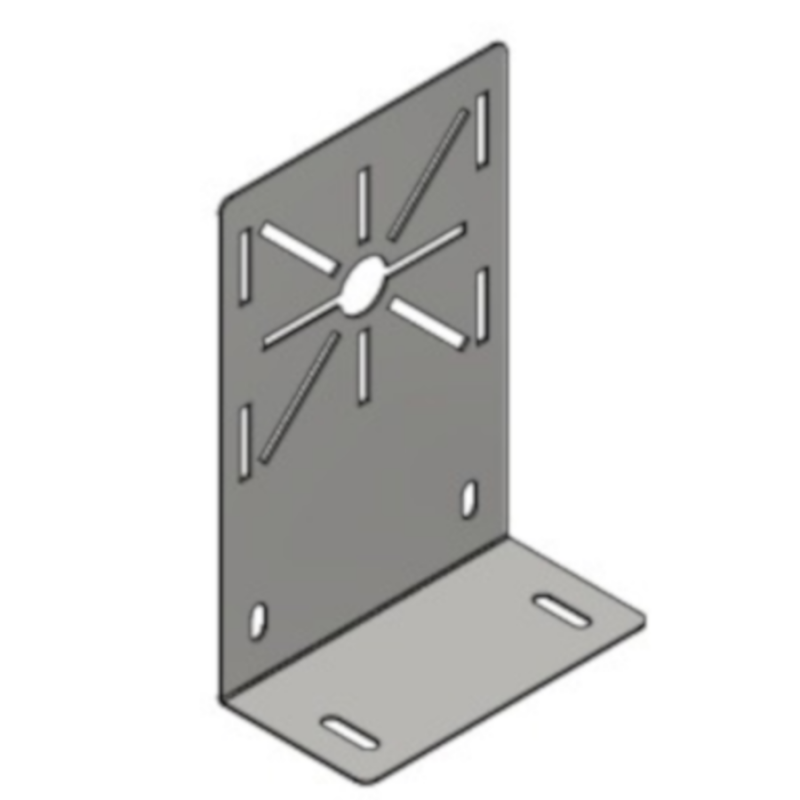

Connector block support

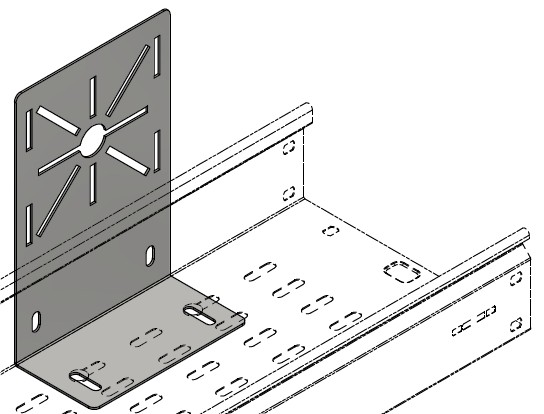

For cable tray H.75

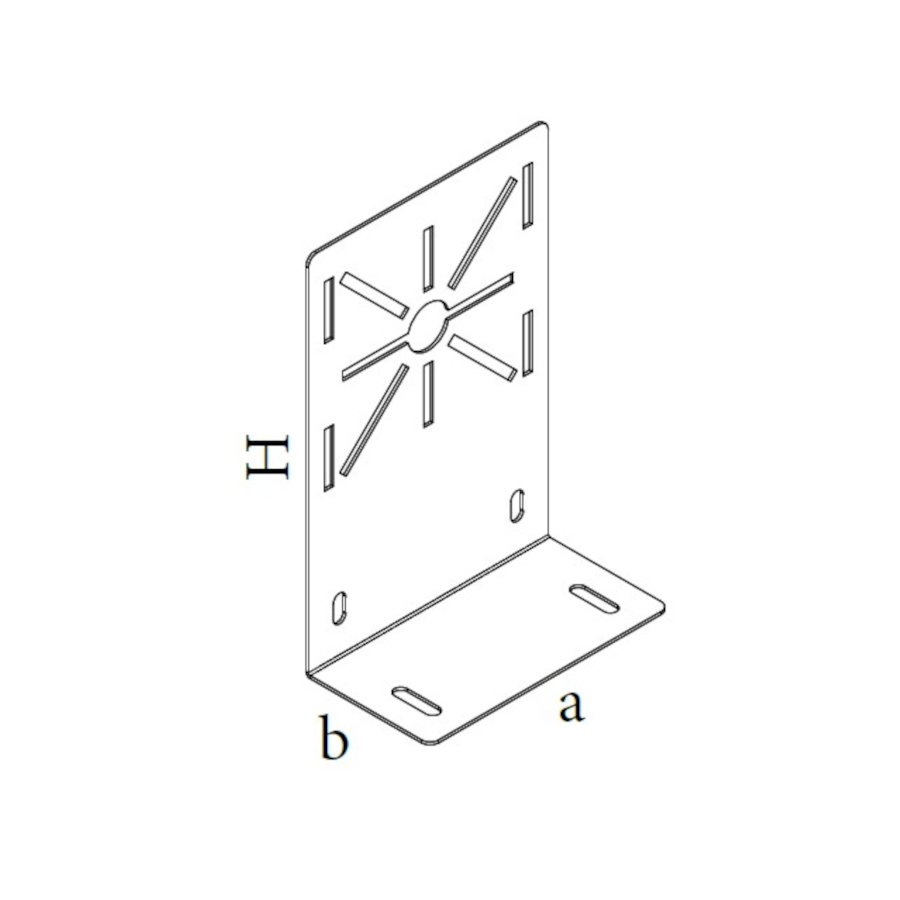

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] a w (b)
205 1,50 0,39 135 70 T0 285 0000
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
40 Stainless steel AISI 304 - UNI EN 10088
System certified in accordance with:

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

n. 2 M6x10 T0 620 0610 / T0 620 0612
n. 2 M6 T0621 0600
Not included

Connector block support
