Zamet - ZM - M0 230 - 45° Inside Elbow with Cover

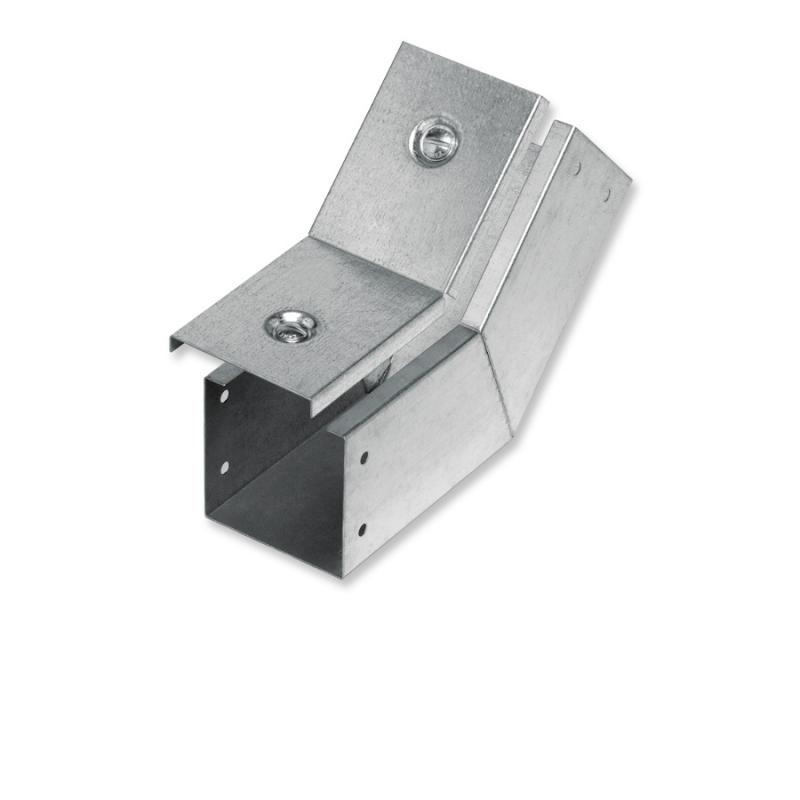

45° Inside Elbow with Cover

Cover with Winged locks

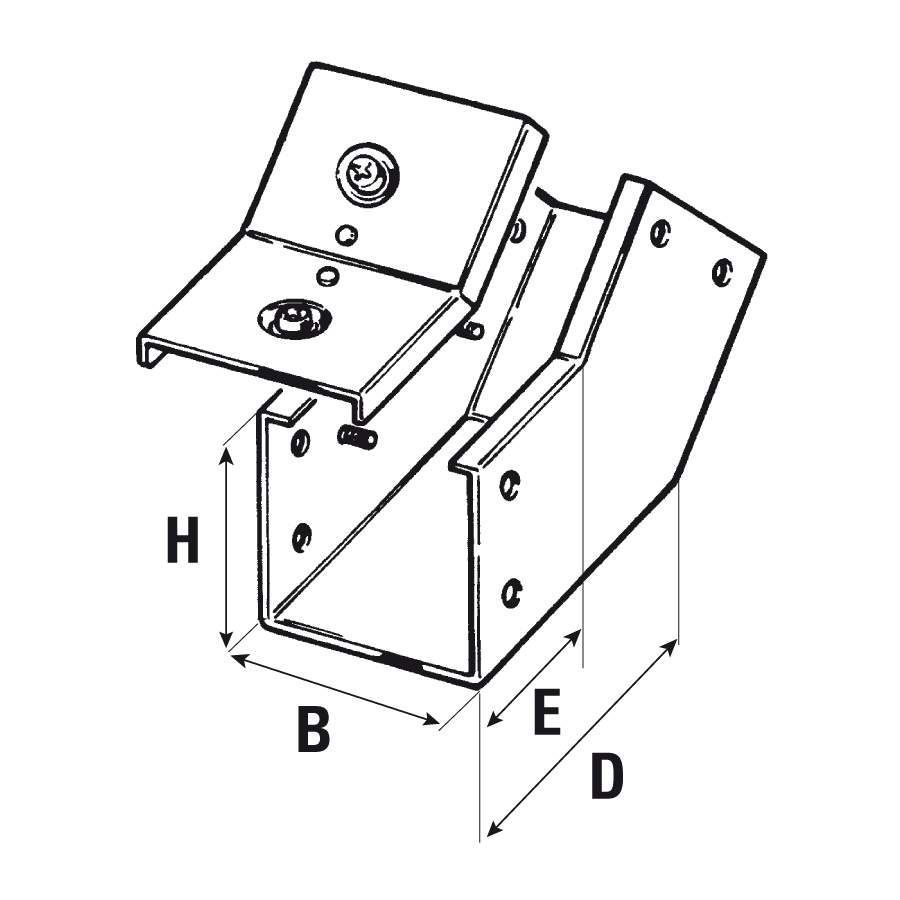

Dimension				Thickness	Technical Info		Code

W (B)	H			[mm]	d	No.of Holes Ø8

50	50	01		1,20	152	4	M0 230 0505
75	75	01		1,20	152	4	M0 230 0707
100	100	01		1,20	152	8	M0 230 1010
100	100		20	2,00	152	8	M0 230 1010
150	100	01		1,50	152	8	M0 230 1015
150	100		20	2,00	152	8	M0 230 1015
200	100	01		1,50	152	8	M0 230 1020
200	100		20	2,00	152	8	M0 230 1020
300	100	01		1,50	152	10	M0 230 1030
300	100		20	2,00	152	10	M0 230 1030
400	100		20	2,00	152	10	M0 230 1040
500	100		20	2,00	152	10	M0 230 1050
600	100		20	2,00	152	10	M0 230 1060
300	150		20	2,00	172	10	M0 230 1530
400	150		20	2,00	172	10	M0 230 1540

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
