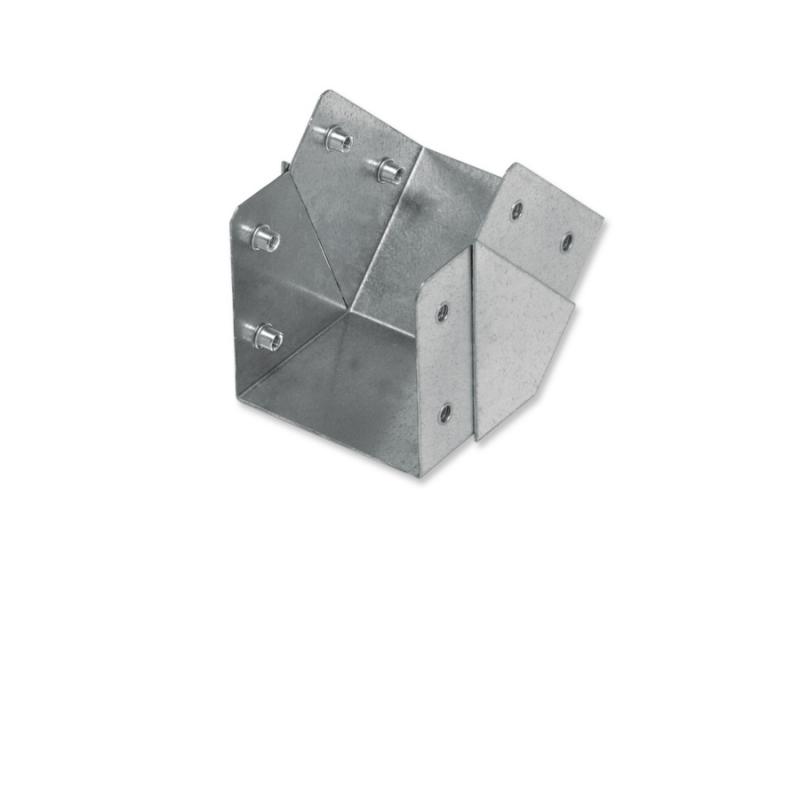

45° Inside Joint

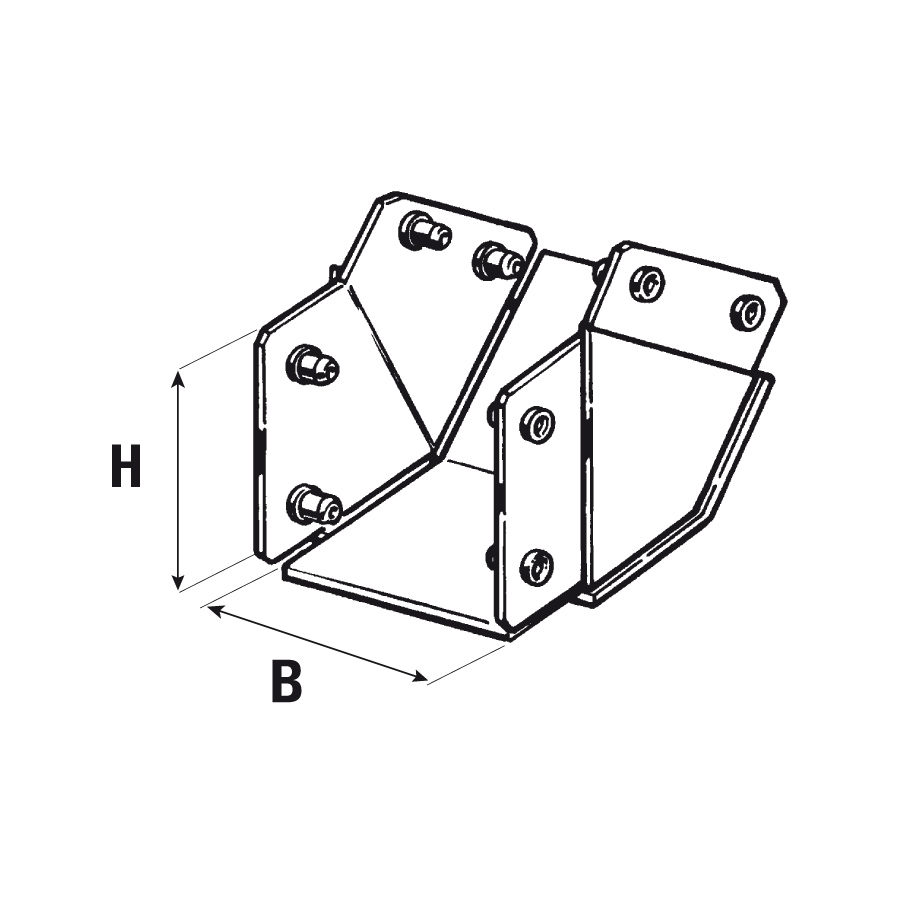

Dimension brush Thickness Technical Info Code
H W (B) [mm] No.of Inserts Ø6
50 50 1,20 6 M0 200 0505
75 75 1,20 6 M0 200 0707
100 100 1,20 10 M0 200 1010
100 150 2,00 10 M0 200 1015
100 200 2,00 10 M0 200 1020
100 300 2,00 10 M0 200 1030
100 400 2,00 10 M0 200 1040
100 500 2,00 10 M0 200 1050
100 600 2,00 10 M0 200 1060
150 300 2,00 10 M0 200 1530
150 400 2,00 10 M0 200 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

45° Inside Joint
