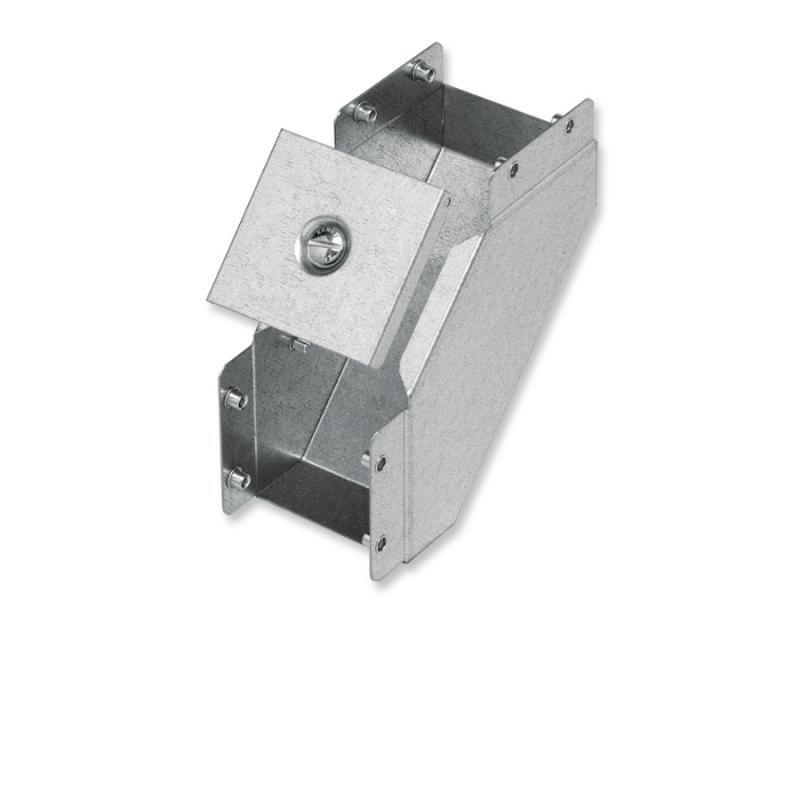

90° Inside Elbow with Cover

Cover with Winged locks

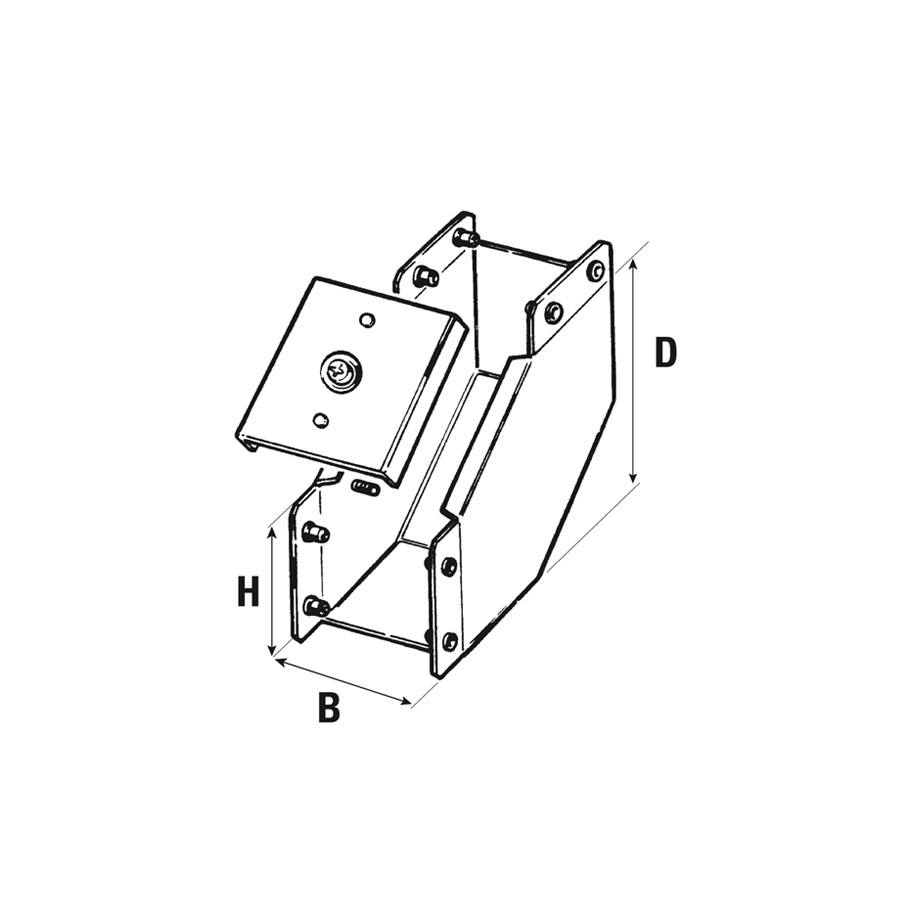

Dimension brush Thickness Technical Info Code
W (B) H [mm] d No.of Inserts
50 50 1,20 86 4 M0 210 0505
75 75 1,20 129 4 M0 210 0707
100 100 1,20 173 8 M0 210 1010
100 100 2,00 173 8 M0 210 1010
150 100 1,50 203 8 M0 210 1015
150 100 2,00 203 8 M0 210 1015
200 100 1,50 203 8 M0 210 1020
200 100 2,00 203 8 M0 210 1020
300 100 1,50 203 10 M0 210 1030
300 100 2,00 203 10 M0 210 1030
400 100 2,00 203 10 M0 210 1040
500 100 2,00 203 10 M0 210 1050
600 100 2,00 203 10 M0 210 1060
300 150 2,00 253 10 M0 210 1530
400 150 2,00 253 10 M0 210 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
