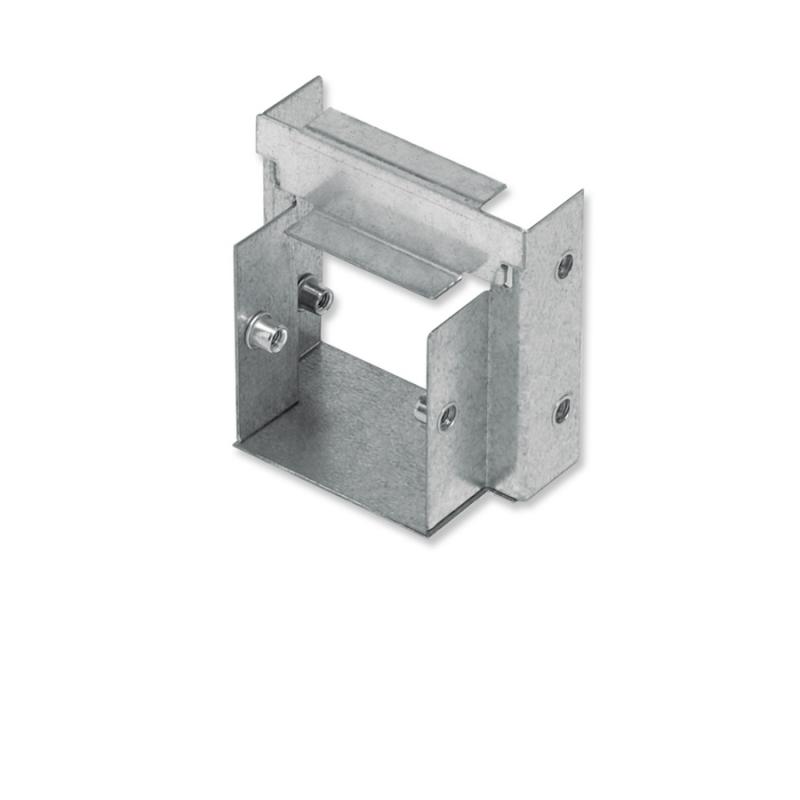

Compact Reduction

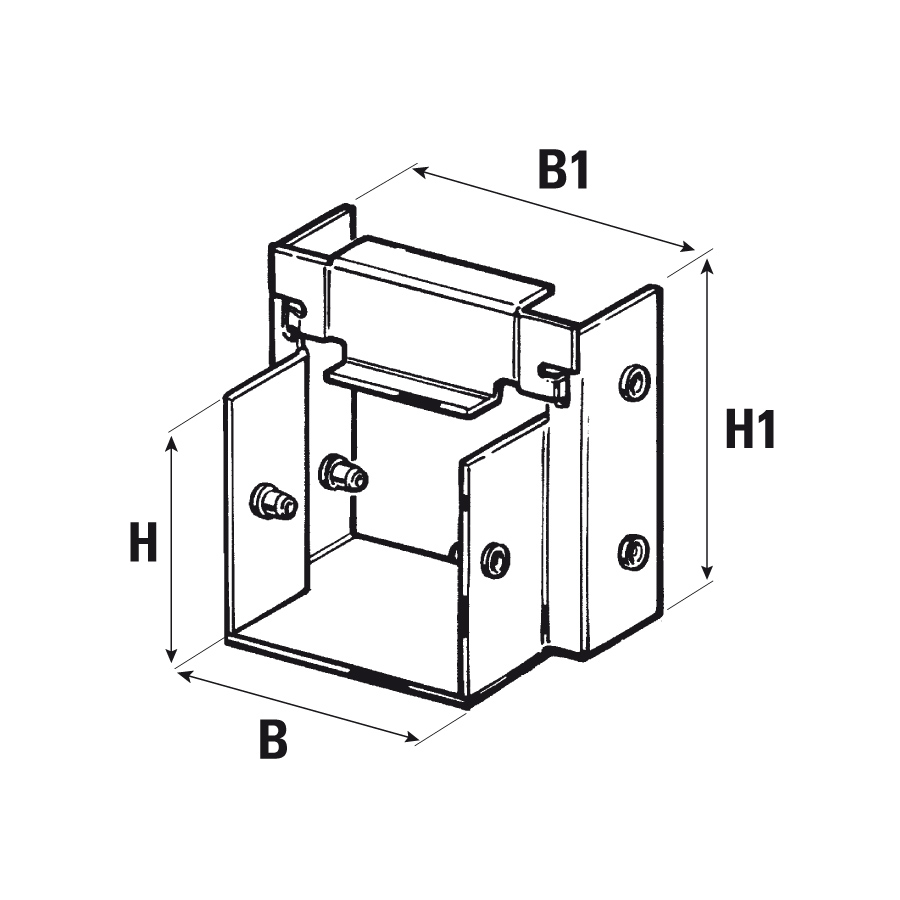

Dimension brush Thickness Technical Info Code
H1xW1(B1) HxW (B) [mm] No.of Inserts
75x75 50x50 1,50 6 M0 110 2211
100x100 50x50 1,50 8 M0 110 3311
100x100 75x75 1,50 8 M0 110 3322
100x150 100x100 1,50 8 M0 110 3433
100x200 100x100 1,50 8 M0 110 3533
100x200 100x150 1,50 8 M0 110 3534
100x300 100x100 1,50 9 M0 110 3633
100x300 100x150 1,50 9 M0 110 3634
100x300 100x200 1,50 9 M0 110 3635
150x300 100x300 1,50 12 M0 110 4636
150x400 150x300 1,50 10 M0 110 4746
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Compact Reduction

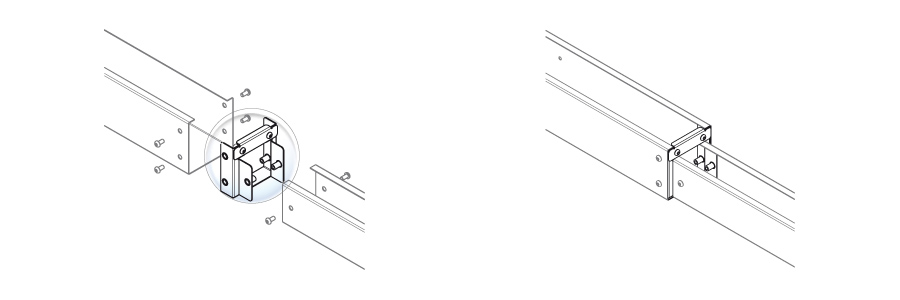

The utility of using the rollaway reducer is evident. It allows the reduction of the trunking section without further lengthening the system.

Compact Reduction
