Zamet - ZM - M0 220 - 90° Inside Elbow with right angle Cover

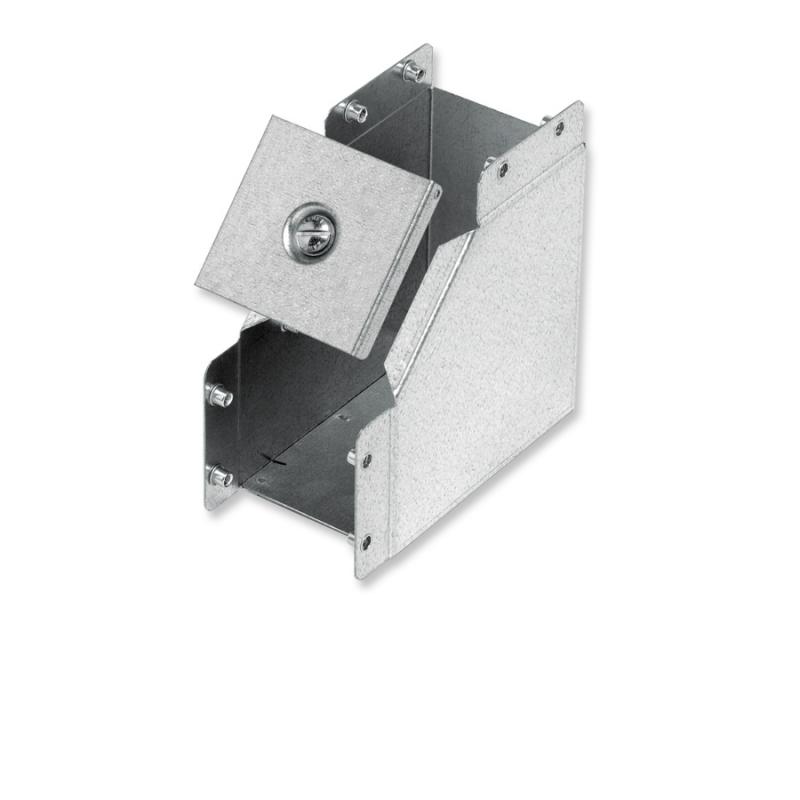

90° Inside Elbow with right angle Cover

Cover with Winged locks

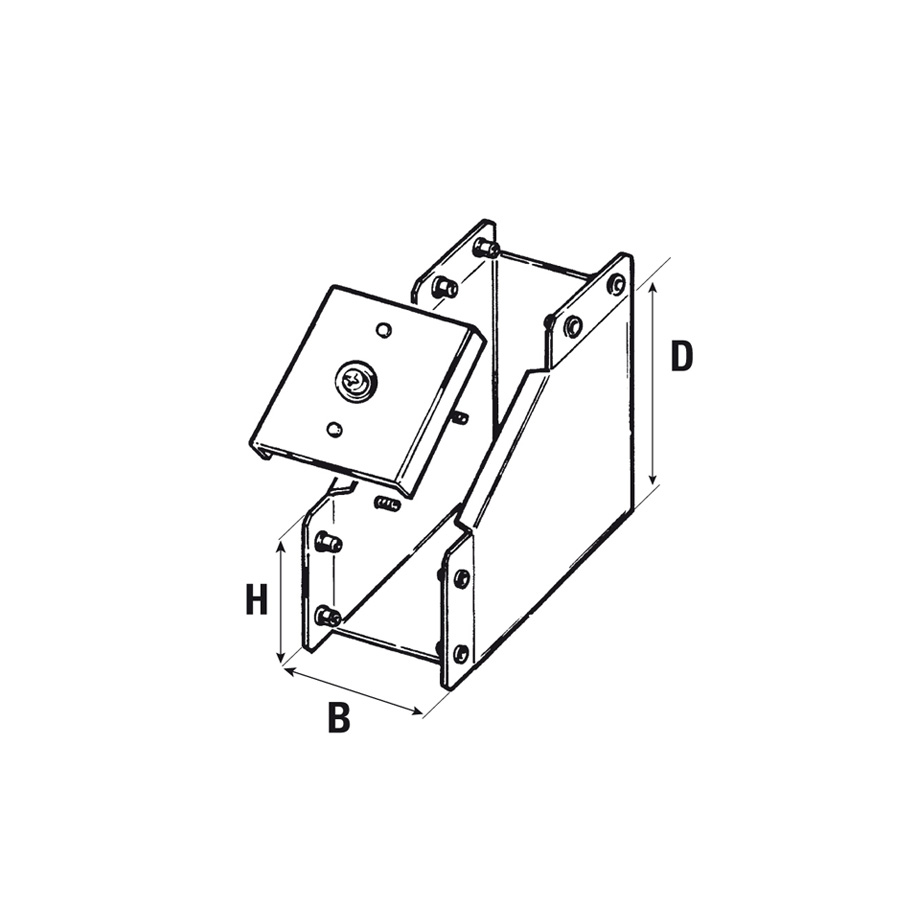

Dimension				Thickness	Technical Info		Code

H	W (B)			[mm]	d	No.of Inserts Ø6

50	50	01		1,20	86	4	M0 220 0505
75	75	01		1,20	129	4	M0 220 0707
100	100	01		1,20	173	8	M0 220 1010
100	100		20	2,00	173	8	M0 220 1010
100	150	01		1,50	203	8	M0 220 1015
100	150		20	2,00	203	8	M0 220 1015
100	200	01		1,50	203	8	M0 220 1020
100	200		20	2,00	203	8	M0 220 1020
100	300	01		1,50	203	10	M0 220 1030
100	300		20	2,00	203	10	M0 220 1030
100	400		20	2,00	203	10	M0 220 1040
100	500		20	2,00	203	10	M0 220 1050
100	600		20	2,00	203	10	M0 220 1060
150	300		20	2,00	253	10	M0 220 1530
150	400		20	2,00	253	10	M0 220 1540

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
