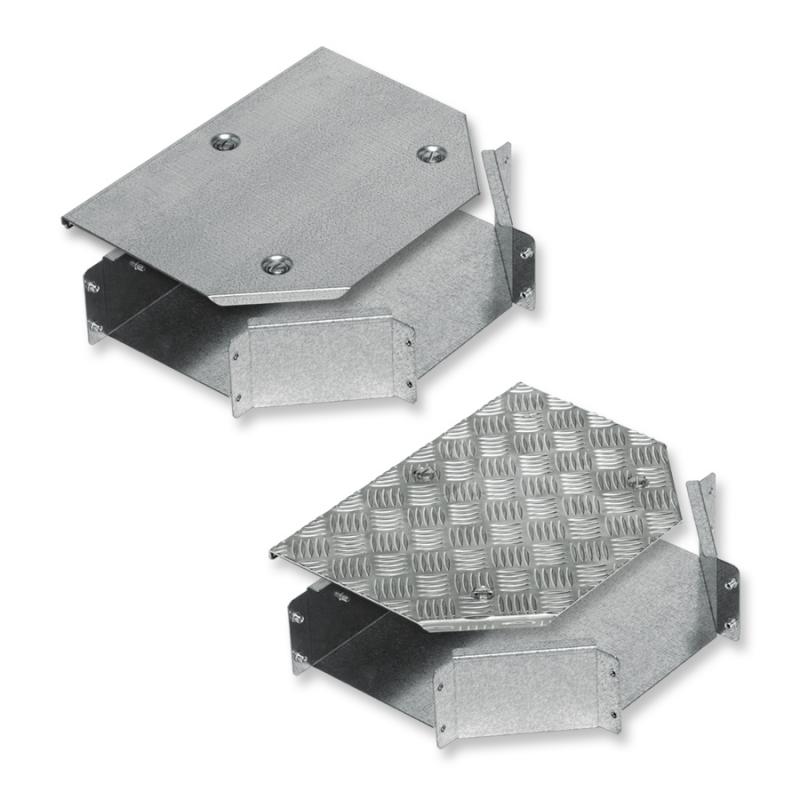

Horizontal “T” Junction with Cover

Cover with Winged locks

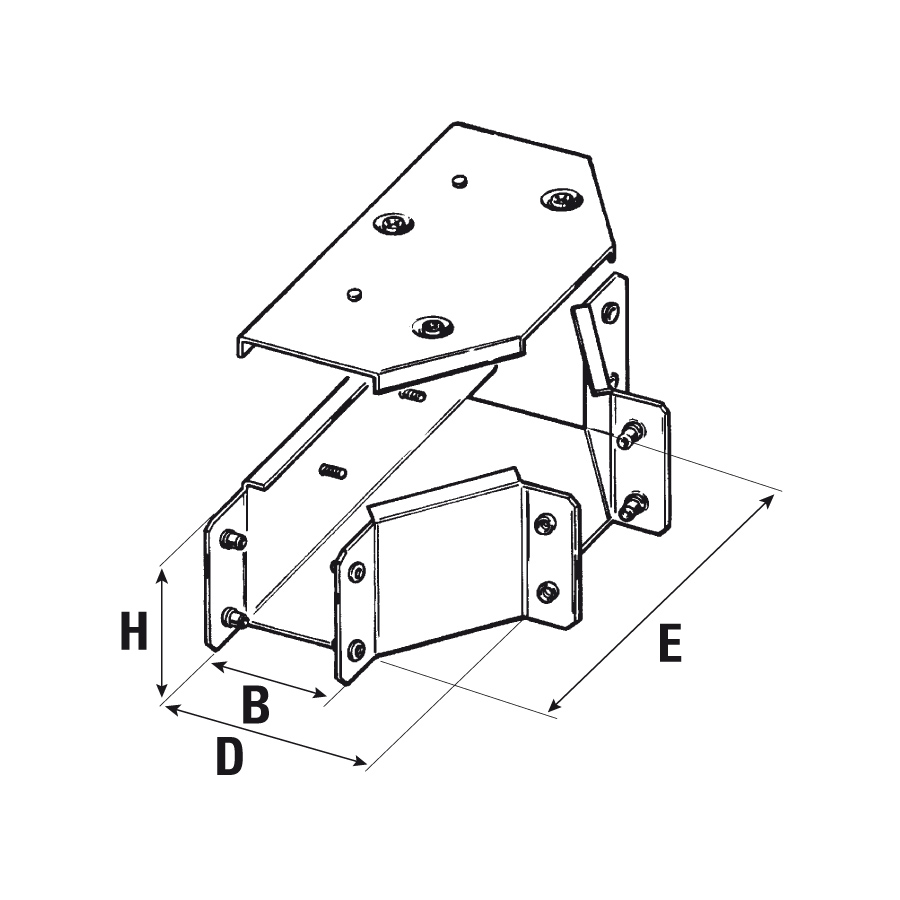

Dimension brush Thickness Technical Info Code
H W (B) [mm] d E No.of Inserts Ø6
50 50 1,20 86 121 6 M0 240 0505
75 75 1,20 131 182 6 M0 240 0707
100 100 1,20 174 243 12 M0 240 1010
100 100 2,00 174 243 12 M0 240 1010
100 100 2,00 174 245 12 M0 240 1010
100 150 1,50 256 354 12 M0 240 1015
100 150 2,00 256 354 12 M0 240 1015
100 150 2,00 254 355 12 M0 240 1015
100 200 1,50 306 405 12 M0 240 1020
100 200 2,00 306 405 12 M0 240 1020
100 200 2,00 305 406 12 M0 240 1020
100 300 1,50 406 507 15 M0 240 1030
100 300 2,00 406 507 15 M0 240 1030
100 300 2,00 407 508 15 M0 240 1030
100 400 2,00 506 607 15 M0 240 1040
100 400 2,00 508 609 15 M0 240 1040
100 500 2,00 606 707 15 M0 240 1050
100 500 2,00 610 711 15 M0 240 1050
100 600 2,00 706 807 15 M0 240 1060
100 600 2,00 712 813 15 M0 240 1060
150 300 2,00 406 507 15 M0 240 1530
150 400 2,00 506 507 15 M0 240 1540

50 Sendzimir basis +”peraluman” aluminium cover
(thickness 3,00 + 1,50mm)

Not walkable per UL standard

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
50 Sendzimir basis+peraluman aluminium Cover
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Horizontal “T” Junction with Cover
