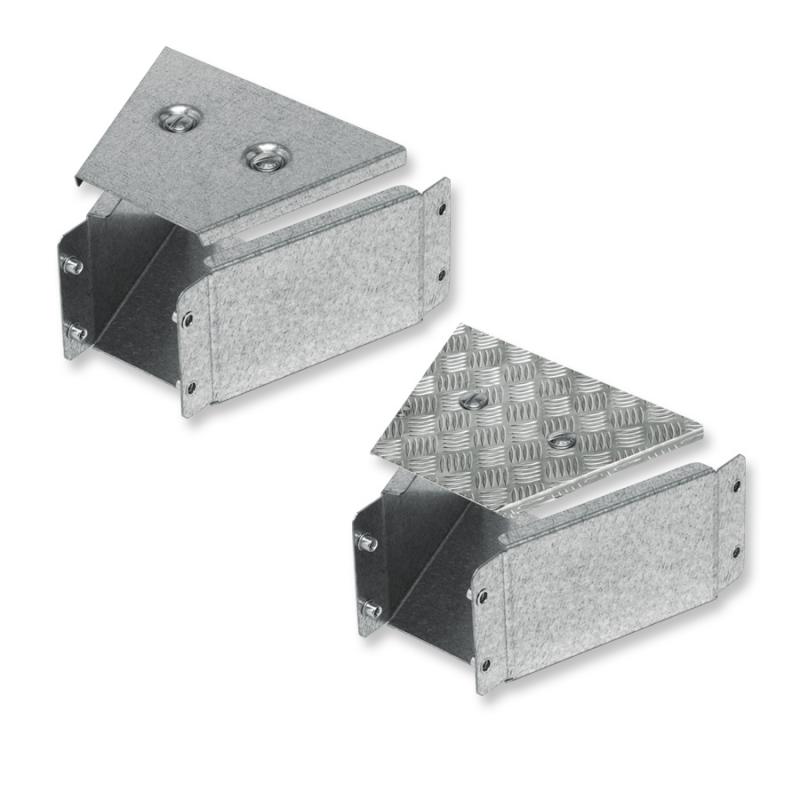

Reducer with Cover

Cover with Winged locks

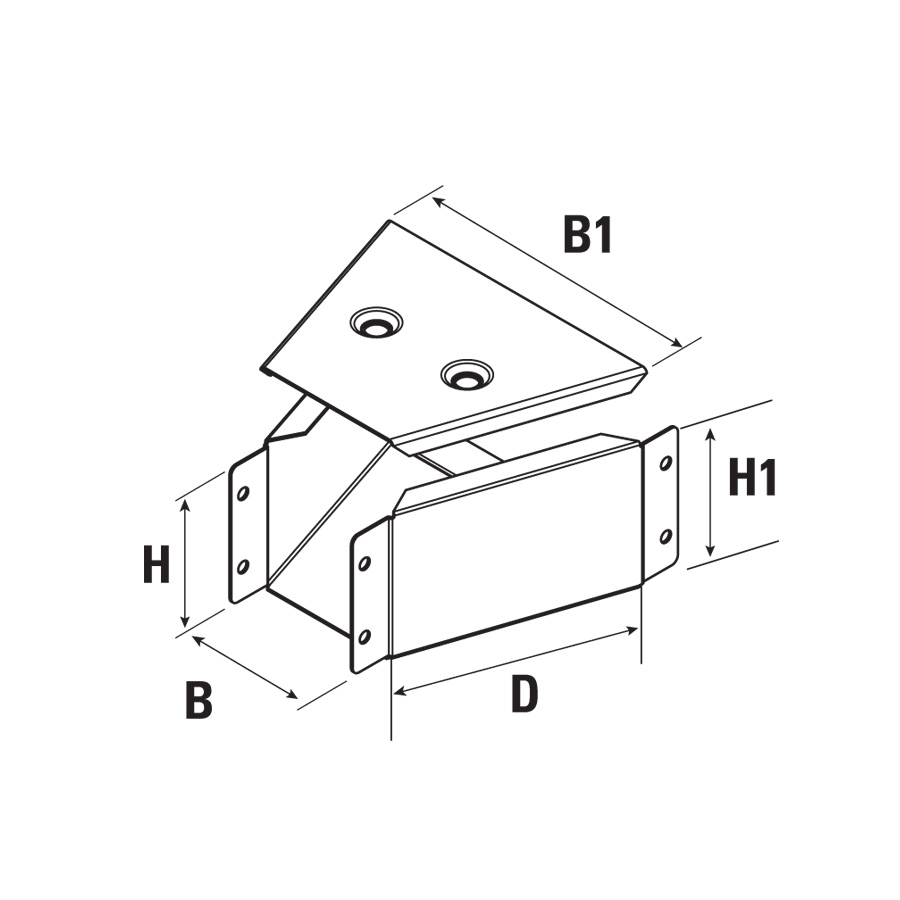

Dimension brush Thickness Technical Info Code
H1xW1(B1) HxW (B) [mm] d No.of Inserts
75x75 50x50 1,20 152 4 M0 100 2211
100x100 50x50 1,20 152 6 M0 100 3311
100x100 75x75 1,20 152 6 M0 100 3322
100x150 100x100 1,50 152 8 M0 100 3433
100x150 100x100 2,00 152 8 M0 100 3433
100x150 100x100 2,00 152 6 M0 100 3433
100x200 100x100 1,50 152 8 M0 100 3533
100x200 100x100 2,00 152 8 M0 100 3533
100x200 100x150 1,50 152 8 M0 100 3534
100x200 100x150 2,00 152 8 M0 100 3534
100x300 100x100 1,50 152 9 M0 100 3633
100x300 100x100 2,00 152 9 M0 100 3633
100x300 100x150 1,50 152 9 M0 100 3634
100x300 100x150 2,00 152 9 M0 100 3634
100x300 100x200 1,50 152 9 M0 100 3635
100x300 100x200 2,00 152 9 M0 100 3635
100x400 100x300 2,00 152 10 M0 100 3736
100x500 100x400 2,00 152 10 M0 100 3837
100x600 100x500 2,00 152 10 M0 100 3938
150x300 100x300 2,00 152 10 M0 100 4636
150x400 150x300 2,00 152 10 M0 100 4746

50 Sendzimir basis +”peraluman” aluminium cover
(thickness 3,00 + 1,50mm)

Not walkable per UL standard

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
50 Sendzimir basis+peraluman aluminium Cover
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Reducer with Cover
