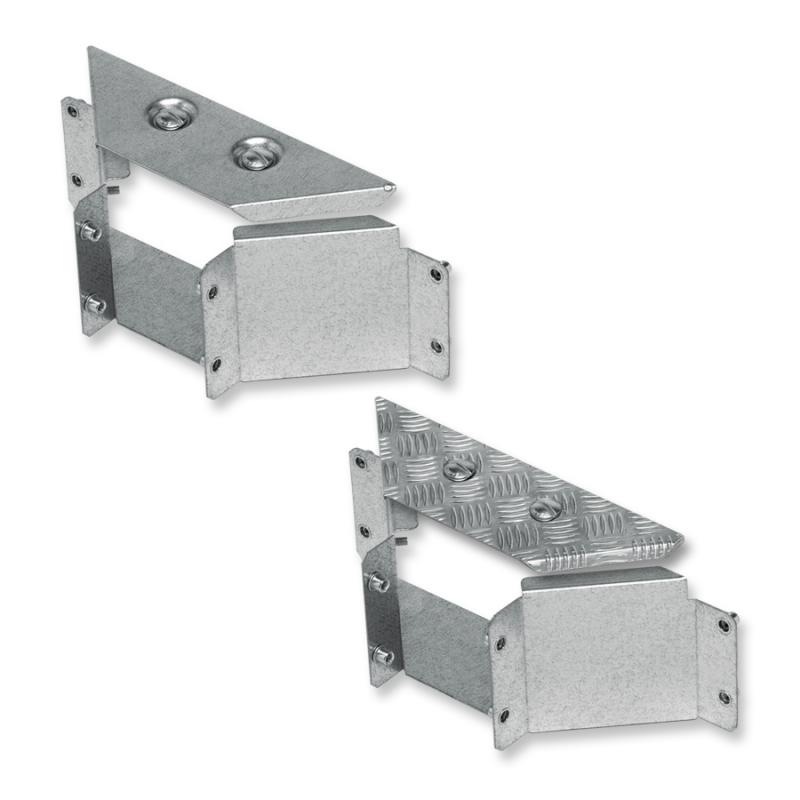

Zamet - ZM - M0 250 - “T” side outlet with Cover

“T” side outlet with Cover

Cover with Winged locks

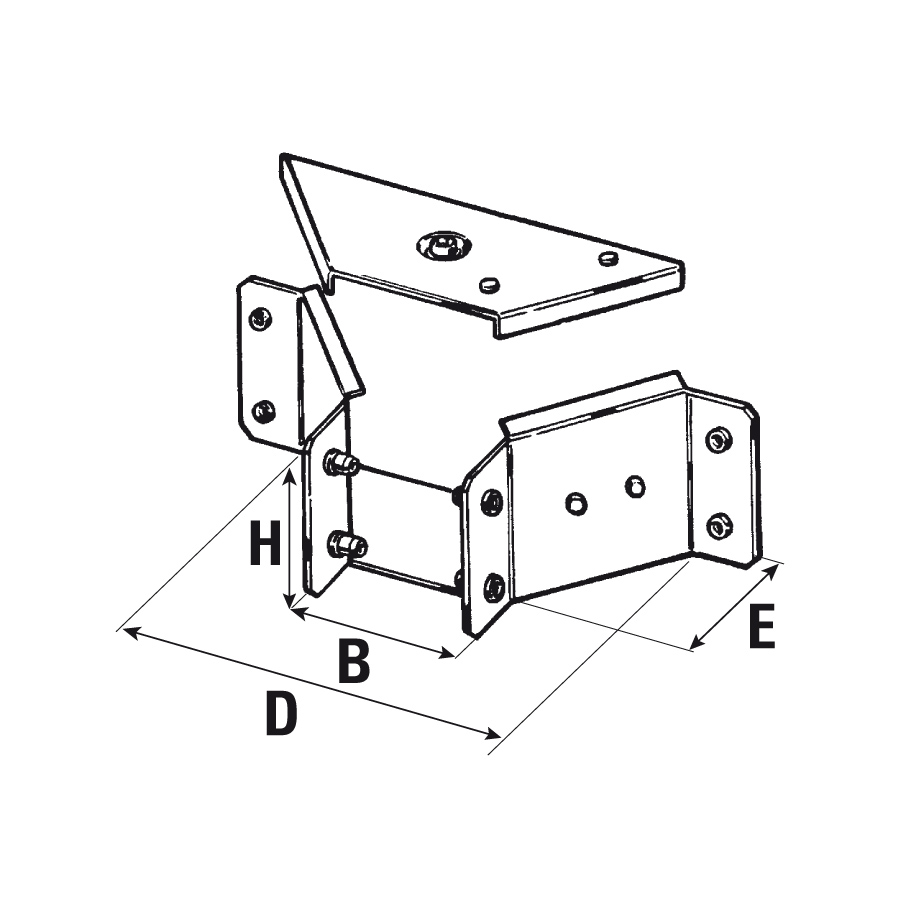

Dimension					Thickness	Technical Info			Code

H	W (B)				[mm]	d	E	No.of Inserts Ø6

50	50	01			1,20	155	53	4	M0 250 0505
75	75	01			1,20	182	53	4	M0 250 0707
100	100	01			1,20	243	71	8	M0 250 1010
100	100		20	50	2,00	243	71	8	M0 250 1010
100	150	01			1,50	354	101	8	M0 250 1015
100	150		20	50	2,00	354	101	8	M0 250 1015
100	200	01			1,50	405	101	8	M0 250 1020
100	200		20	50	2,00	405	101	8	M0 250 1020
100	300	01			1,50	507	101	9	M0 250 1030
100	300		20	50	2,00	507	101	9	M0 250 1030
100	400		20	50	2,00	607	101	9	M0 250 1040
100	500		20	50	2,00	707	101	9	M0 250 1050
100	600		20	50	2,00	807	101	9	M0 250 1060
150	300		20		2,00	507	101	9	M0 250 1530
150	400		20		2,00	607	101	9	M0 250 1540

50 Sendzimir basis +”peraluman” aluminium cover
(thickness 3,00 + 1,50mm)

Not walkable per UL standard

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling
	50	Sendzimir basis+peraluman aluminium Cover

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Applications

"T" Side Outlet

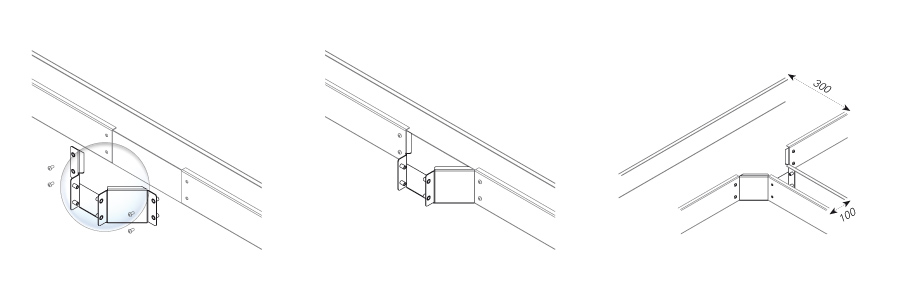

This component has been created especially for a quick side outlet insertion.Unlike the standard T, if necessary, an opening can be made in the side of the trunking can be opened to insert the T component.
A quick and practical component that can be applied even when the system has already been completed. It can also be used as a reduction connector.
