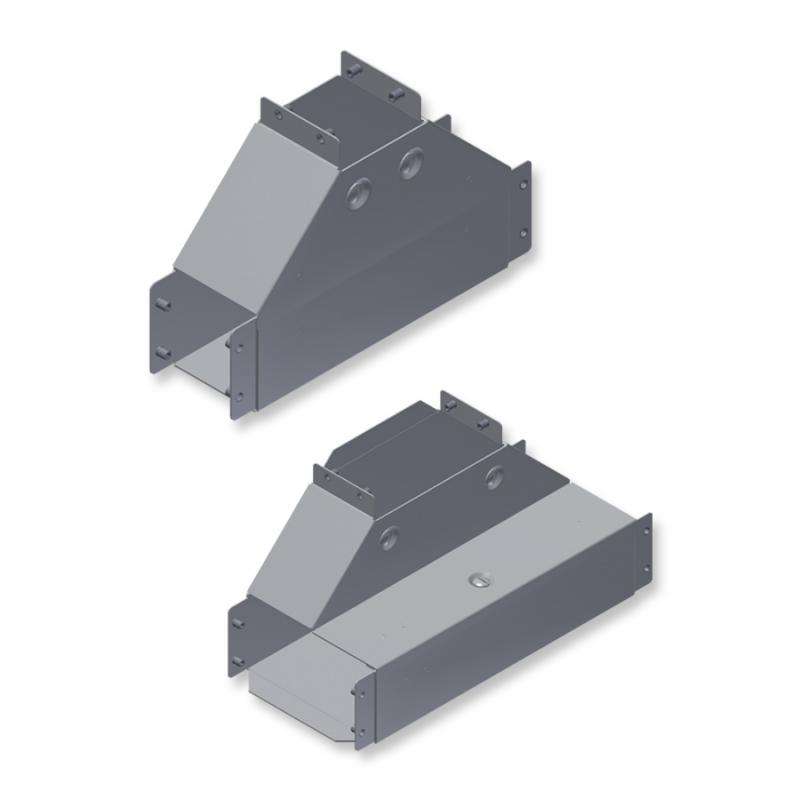

Rising skewed “T” junction with Cover

Cover with Winged locks

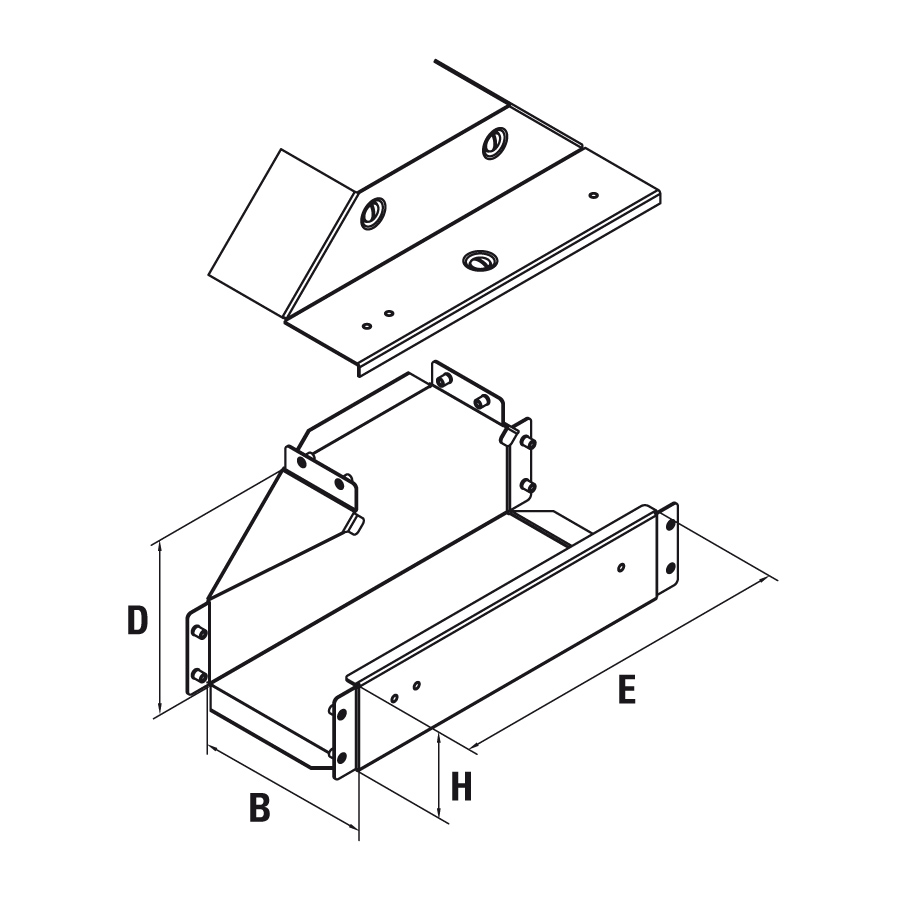

Dimension brush Thickness Technical Info Code
H W (B) [mm] d E No.of Inserts Ø6
50 50 1,20 86 115 6 M0 310 0505
75 75 1,20 129 176 6 M0 310 0707
100 100 1,20 173 238 12 M0 310 1010
100 100 2,00 173 238 12 M0 310 1010
100 150 1,50 204 355 12 M0 310 1015
100 150 2,00 204 355 12 M0 310 1015
100 200 1,50 204 406 12 M0 310 1020
100 200 2,00 204 406 12 M0 310 1020
100 300 1,50 204 508 15 M0 310 1030
100 300 2,00 204 508 15 M0 310 1030
100 400 2,00 204 610 15 M0 310 1040
100 500 2,00 204 711 15 M0 310 1050
100 600 2,00 204 812 15 M0 310 1060
150 300 2,00 255 508 15 M0 310 1530
150 400 2,00 255 610 15 M0 310 1540

* Dimension: 50x50 - 75x75 - 100x100 - Component 1 (flat cover)
* From Dimension 100x150 - Component 2 (90°cover)

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
